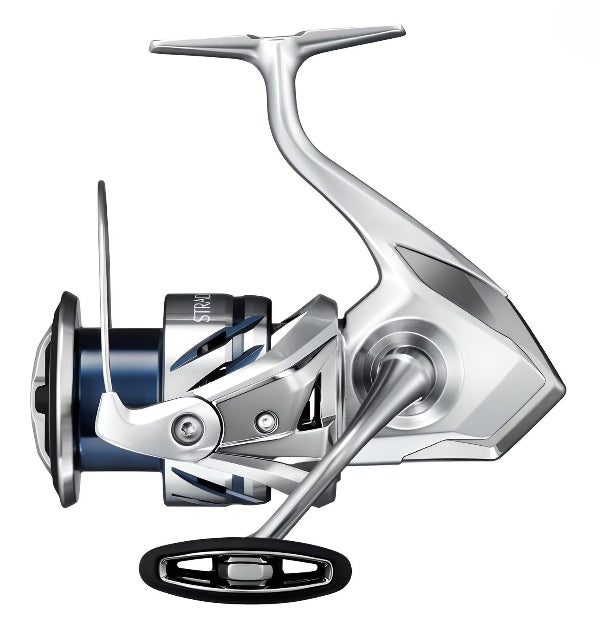

Shimano 2023 Stradic 4000

Name: Shimano 2023 Stradic 4000
Brand: SHIMANO
Price: 69.00 USD
Availability: OutOfStock

SHIMANO

RuffRuff Apps by Tsun

Price:

$69.00

Quantity:

View all models of Shimano 2023 Stradic

Available Countries and Delivery Time

What is Pre-Order?

FAQ

Share this product

Gear ratio: 5.7 Practical drag force: 3.5kg Weight: 245g Spool diameter/stroke: 47mm/17mm Line Capacity Nylon: #1.5-165m, #1.7-150m, #2.0-130m Line Capacity Nylon: 8lb-130m, 10lb-110m, 12lb-85m Line Capacity Nylon: 0.25mm-125m, 0.30mm-85m Line Capacity Fluoro: 8lb-110m, 10lb-90m, 12lb-80m Line Capacity PE: #1-190m, #1.2-150m, #1.5-120m Winding length: 84cm/per handle rotation Handle length: 55cm The Stradic has undergone a dramatic evolution with the advanced features of the flagship model. Stradic has rewritten the existing performance. As a new standard for Shimano spinning reels, this is the one we would like to deliver to anglers who aspire to the next level. ■3000MHG....A model that combines power and delicacy. The 3000 model is equipped with a 2500 size compact spool and rotor on a 4000 size body. A model that combines delicate winding and power with a powerful 4000 size winding and a compact rotor. The spool is compatible with 2500 and C3000, making it highly versatile.

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

MICRO MODULE GEAR 2

The gear teeth surfaces in the MICRO MODULE GEAR 2 are finer and mesh more closely together than traditional gears, resulting in minimal power loss and a smooth, powerful winding experience. Additionally, the increased number of meshing teeth provides greater strength compared to conventional gears. This unique Shimano gear system achieves a balance of smoothness and durability.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

INFINITY XROSS

INFINITY XROSS is a technology that increases the contact area between the drive gear and pinion gear through advancements in gear tooth surface design and manufacturing technology. By distributing the load applied to the gear tooth surface over a wider area, this technology prevents the gears from sustaining concentrated damage and breaking. As a result, the durability of the gears is approximately doubled compared to traditional Shimano gears.

INFINITY DRIVE

INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.

DURACROSS

DURACROSS is a new drag washer made from innovative materials. By weaving new fibers in a direction perpendicular to the fibers in traditional drag washers, the material's strength is enhanced. This technology maintains smooth drag performance while increasing wear resistance to over ten times that of conventional drag washers.

SILENT DRIVE

SILENT DRIVE involves a comprehensive redesign of the entire body and drive-related components, meticulously eliminating minute gaps, play, and vibration between parts. Areas of improvement include the drive gear, worm shaft, worm shaft pin, worm shaft gear, and slider gear, among others. This results in a new level of smooth rotational performance and a quiet, refined reeling experience.

ANTI TWIST FIN

The ANTI TWIST FIN is an elastic fin positioned close to the line roller. By preventing the line from sagging, it reduces the occurrence of the line being sucked into the lower part of the spool and the line being wound onto the spool while twisted.

X-PROTECT

X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.

For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.

G FREE BODY

The G Free Body relocates the sliding functional parts needed for spool movement to the upper part of the reel body, bringing the reel's center of gravity closer to the angler's hand. This design enhances the feeling of unity with the rod, making the reel feel lighter. It also reduces casting fatigue and improves rod handling.

AR-C SPOOL

The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.

LONG STROKE SPOOL

The Long Stroke Spool features a design that extends the width of the spool's line-winding area. This reduces line reduction during the latter part of the cast, contributing to improved casting feel and increased casting distance.

SA-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.

ONE-PIECE BAIL

The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.

Shimano 2023 Stradic Spec Chart

Shimano 2023 Stradic Line-up

Line-up	Year	Salt or Fresh	Weight（ｇ）	Gear Ratio	Retrieve（cm/crank）	Max Drag（kg）	Mono line cap. (lb-m)	Fluoro line cap. (lb-m)	Braided line cap. (lb-m)	Handle Arm（mm）	Spool diameter (mm)	Spool stroke (mm)	Bearing (Ball/Roller)
C2000S	2023	Saltwater OK	185	5.1	69	3	3-125, 4-100, 5-75	3-110, 4-85, 5-65	12-150, 16-110, 20-80	40	43	13.5	6/1
C2000SHG	2023	Saltwater OK	185	6	81	3	3-125, 4-100, 5-75	3-110, 4-85, 5-65	12-150, 16-110, 20-80	45	43	13.5	6/1
C2500S	2023	Saltwater OK	185	5.1	70	3	5-110, 6-95, 8-70	4-130, 5-100, 6-80	12-200, 16-150, 20-120	40	44	13.5	6/1
C2500SXG	2023	Saltwater OK	185	6.3	87	3	5-110, 6-95, 8-70	4-130, 5-100, 6-80	12-200, 16-150, 20-120	45	44	13.5	6/1
2500S	2023	Saltwater OK	220	5.1	75	4	5-110, 6-95, 8-70	4-130, 5-100, 6-80	12-200, 16-150, 20-120	50	47	17	6/1
2500SHG	2023	Saltwater OK	220	5.8	86	4	5-110, 6-95, 8-70	4-130, 5-100, 6-80	12-200, 16-150, 20-120	55	47	17	6/1
C3000	2023	Saltwater OK	225	5.1	75	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	47	17	6/1
C3000HG	2023	Saltwater OK	225	5.8	86	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	47	17	6/1
C3000XG	2023	Saltwater OK	225	6.4	94	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	47	17	6/1
3000MHG	2023	Saltwater OK	245	5.7	84	9	8-130, 10-110, 12-85	8-110, 10-90, 12-80	20-190, 24-150, 30-120	55	47	17	6/1
4000	2023	Saltwater OK	275	5.3	87	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	55	52	19	6/1
4000MHG	2023	Saltwater OK	275	5.7	93	11	10-160, 12-120, 16-90	12-110, 16-90, 20-65	24-250, 30-200, 40-150	55	52	19	6/1
4000XG	2023	Saltwater OK	275	6.2	101	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	57	52	19	6/1
C5000XG	2023	Saltwater OK	290	6.2	101	11	16-190, 20-150, 22-125	16-170, 20-135, 22-115	30-400, 40-300, 55-200	57	52	19	6/1

Specifications in Pound-Yard Notation

Line-up	Year	Salt or Fresh	Weight（oz)	Gear Ratio	Retrieve（in/crank）	Max Drag（lb）	Mono line cap. (lb-yd)	Fluoro line cap. (lb-yd)	Braided line cap. (lb-yd)	Handle Arm（in）	Spool diameter (in)	Spool stroke (in)	Bearing (Ball/Roller)
C2000S	2023	Saltwater OK	6.6	5.1	27.2	6.7	3-140, 4-110, 5-80	3-120, 4-95, 5-70	12-165, 16-120, 20-90	1.57	1.69	0.53	6/1
C2000SHG	2023	Saltwater OK	6.6	6	31.9	6.7	3-140, 4-110, 5-80	3-120, 4-95, 5-70	12-165, 16-120, 20-90	1.77	1.69	0.53	6/1
C2500S	2023	Saltwater OK	6.6	5.1	27.6	6.7	5-120, 6-105, 8-80	4-145, 5-110, 6-90	12-220, 16-165, 20-130	1.57	1.73	0.53	6/1
C2500SXG	2023	Saltwater OK	6.6	6.3	34.3	6.7	5-120, 6-105, 8-80	4-145, 5-110, 6-90	12-220, 16-165, 20-130	1.77	1.73	0.53	6/1
2500S	2023	Saltwater OK	7.9	5.1	29.5	8.9	5-120, 6-105, 8-80	4-145, 5-110, 6-90	12-220, 16-165, 20-130	1.97	1.85	0.67	6/1
2500SHG	2023	Saltwater OK	7.9	5.8	33.9	8.9	5-120, 6-105, 8-80	4-145, 5-110, 6-90	12-220, 16-165, 20-130	2.17	1.85	0.67	6/1
C3000	2023	Saltwater OK	8	5.1	29.5	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	1.85	0.67	6/1
C3000HG	2023	Saltwater OK	8	5.8	33.9	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	1.85	0.67	6/1
C3000XG	2023	Saltwater OK	8	6.4	37	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	1.85	0.67	6/1
3000MHG	2023	Saltwater OK	8.8	5.7	33.1	20	8-145, 10-120, 12-95	8-120, 10-100, 12-90	20-210, 24-165, 30-130	2.17	1.85	0.67	6/1
4000	2023	Saltwater OK	9.8	5.3	34.3	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.17	2.05	0.75	6/1
4000MHG	2023	Saltwater OK	9.8	5.7	36.6	24.4	10-180, 12-130, 16-100	12-120, 16-100, 20-70	24-275, 30-220, 40-165	2.17	2.05	0.75	6/1
4000XG	2023	Saltwater OK	9.8	6.2	39.8	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.24	2.05	0.75	6/1
C5000XG	2023	Saltwater OK	10.4	6.2	39.8	24.4	16-210, 20-165, 22-140	16-190, 20-150, 22-130	30-440, 40-330, 55-220	2.24	2.05	0.75	6/1
