Shimano 2023 Power Aero TD GOKUFUTO

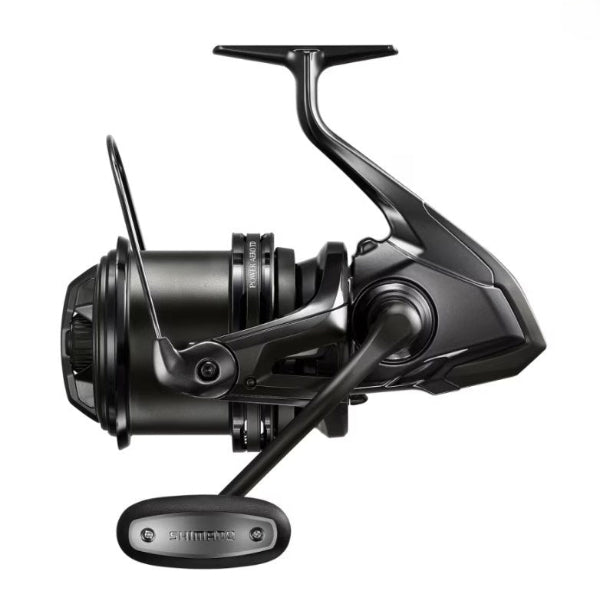

Shimano 2023 Power Aero TD FUTO

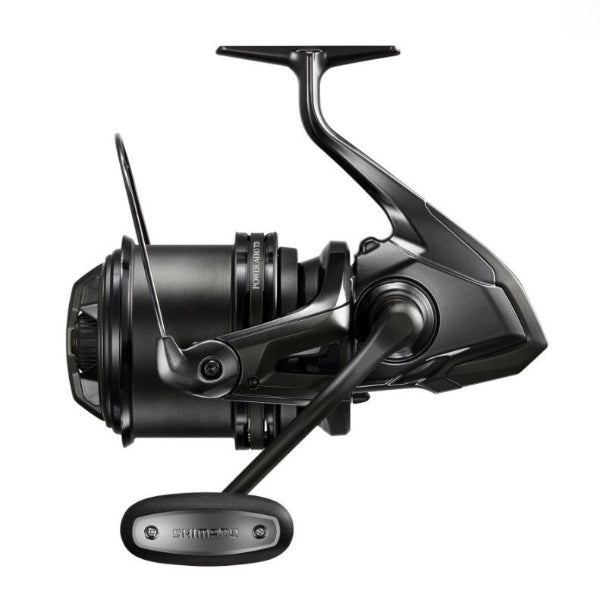

Shimano 2023 Power Aero TD HYOUJYUN
SHIMANO Shimano 2023 Power Aero TD HYOUJYUN
Sale price$436.00
Sold out

Key Features of Shimano 2023 Power Aero TD

“HAGANE”

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

INFINITY DRIVE

INFINITY DRIVE is a new system developed by Shimano to achieve more powerful and lighter retrieves. It replaces one of the two grease bearings supporting the pinion gear—the one on the spool side, which causes greater rotational resistance. Instead of using this bearing, the pinion gear is supported internally by the spool shaft. Additionally, the support distance and gear thickness have been thoroughly optimized to maintain high support rigidity. This new design reduces gear rotational resistance by up to approximately 60% without compromising gear strength.

SILENT DRIVE

SILENT DRIVE involves a comprehensive redesign of the entire body and drive-related components, meticulously eliminating minute gaps, play, and vibration between parts. Areas of improvement include the drive gear, worm shaft, worm shaft pin, worm shaft gear, and slider gear, among others. This results in a new level of smooth rotational performance and a quiet, refined reeling experience.

DURACROSS

DURACROSS is a new drag washer made from innovative materials. By weaving new fibers in a direction perpendicular to the fibers in traditional drag washers, the material's strength is enhanced. This technology maintains smooth drag performance while increasing wear resistance to over ten times that of conventional drag washers.

X-PROTECT

X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.

For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.

G FREE BODY

The G Free Body relocates the sliding functional parts needed for spool movement to the upper part of the reel body, bringing the reel's center of gravity closer to the angler's hand. This design enhances the feeling of unity with the rod, making the reel feel lighter. It also reduces casting fatigue and improves rod handling.

AR-C SPOOL

The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.

CI4+

CI4+ is an advanced material used in Shimano reels. It is a reinforced carbon fiber composite that is lighter and stronger than conventional materials, providing increased rigidity and reducing weight, which enhances the overall performance and sensitivity of the reel.

SA-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.

ONE-PIECE BAIL

The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.

all models of shimano 2023 power aero td

Line-up Year Salt or Fresh Weight(g) Gear Ratio Retrieve(cm/crank) Max Drag(kg) Mono line cap. (lb-m) Braided line cap. (lb-m) Handle Arm(mm) Spool diameter (mm) Spool stroke (mm) Bearing (Ball/Roller)
HYOUJYUN 2023 Saltwater OK 540 3.5 84 19 8-300, 12-200, 16-150 30-250, 40-200, 55-130 90 76 35 7/1
FUTO 2023 Saltwater OK 540 3.5 84 19 16-250, 20-200, 22-170 55-225, 60-175, 80-140 90 76 35 7/1
GOKUFUTO 2023 Saltwater OK 540 3.5 84 19 22-275, 28-200, 35-150 80-225, 90-185, 100-140 90 76 35 7/1



IN POUND-YARD NOTATION

Line-up Year Salt or Fresh Weight(oz) Gear Ratio Retrieve(in/crank) Max Drag(lb) Mono line cap. (lb-yd) Braided line cap. (lb-yd) Handle Arm(in) Spool diameter (in) Spool stroke (in) Bearing (Ball/Roller)
HYOUJYUN 2023 Saltwater OK 19.3 3.5 33.1 42.2 8-330, 12-220, 16-165 30-275, 40-220, 55-145 3.54 2.99 1.38 7/1
FUTO 2023 Saltwater OK 19.3 3.5 33.1 42.2 16-275, 20-220, 22-190 55-250, 60-190, 80-155 3.54 2.99 1.38 7/1
GOKUFUTO 2023 Saltwater OK 19.3 3.5 33.1 42.2 22-300, 28-220, 35-165 80-250, 90-205, 100-155 3.54 2.99 1.38 7/1
