DAIWA 2021 CALDIA

daiwa 2021 caldia Spec Chart

Line-up	Year	Salt or Fresh	Weight（ｇ）	Gear Ratio	Retrieve（cm/crank）	Max Drag（kg）	Mono line cap. (lb-m)	Braided line cap. (lb-m)	Handle Arm（mm）	Bearing (Ball/Roller)	Handle knob shape
FC LT1000S	2021	Saltwater OK	170	5.1	64	5	2.5-100	6-200	40	6/1	I
FC LT2000S	2021	Saltwater OK	175	5.1	67	5	3-150	8-200	45	6/1	I
FC LT2000S-H	2021	Saltwater OK	175	5.8	76	5	3-150	8-200	50	6/1	I
FC LT2500S	2021	Saltwater OK	180	5.1	72	5	4-150	12-200	50	6/1	I

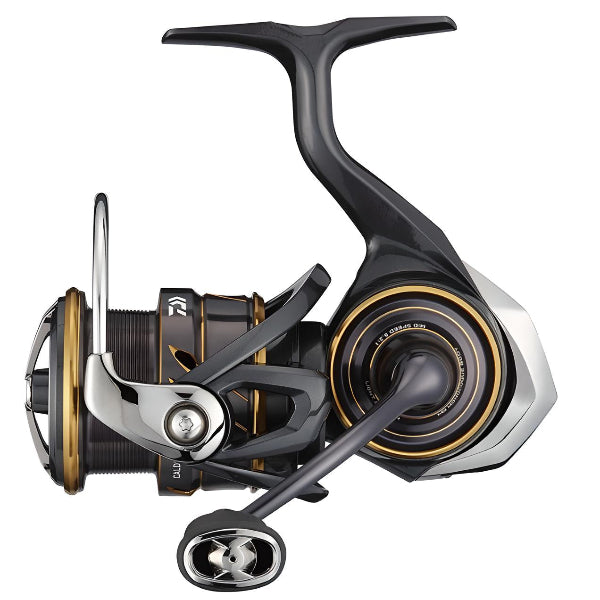

LT2500	2021	Saltwater OK	195	5.2	73	10	6-150	16-200	50	6/1	I
LT2500S	2021	Saltwater OK	190	5.2	73	5	4-150	12-200	50	6/1	I

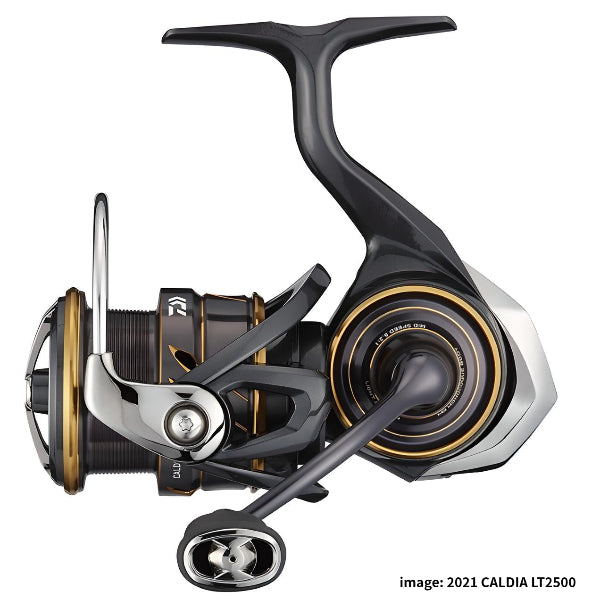

LT2500S-XH	2021	Saltwater OK	190	6.2	87	5	4-150	12-200	55	6/1	I
LT3000-CXH	2021	Saltwater OK	205	6.2	93	10	8-150	20-200	55	6/1	T
LT3000	2021	Saltwater OK	215	5.2	77	10	8-150	20-200	60	6/1	T
LT4000S-C	2021	Saltwater OK	230	5.2	82	12	8-150	20-200	60	6/1	T
LT4000-CXH	2021	Saltwater OK	230	6.2	99	12	12-150	30-200	60	6/1	T
LT3000-XH	2021	Saltwater OK	215	6.2	93	10	8-150	20-200	60	6/1	T

Specifications in Pound-Yard Notation

Line-up	Year	Salt or Fresh	Weight（oz)	Gear Ratio	Retrieve（in/crank）	Max Drag（lb）	Mono line cap. (lb-yd)	Braided line cap. (lb-yd)	Handle Arm（in）	Bearing (Ball/Roller)	Handle knob shape
FC LT1000S	2021	Saltwater OK	6.1	5.1	25.2	11.1	2.5-100	6-200	1.57	6/1	I
FC LT2000S	2021	Saltwater OK	6.3	5.1	26.4	11.1	3-150	8-200	1.77	6/1	I
FC LT2000S-H	2021	Saltwater OK	6.3	5.8	29.9	11.1	3-150	8-200	1.97	6/1	I
FC LT2500S	2021	Saltwater OK	6.4	5.1	28.3	11.1	4-150	12-200	1.97	6/1	I
LT2500	2021	Saltwater OK	7	5.2	28.7	22.2	6-150	16-200	1.97	6/1	I
LT2500S	2021	Saltwater OK	6.8	5.2	28.7	11.1	4-150	12-200	1.97	6/1	I
LT2500S-XH	2021	Saltwater OK	6.8	6.2	34.3	11.1	4-150	12-200	2.17	6/1	I
LT3000-CXH	2021	Saltwater OK	7.3	6.2	36.6	22.2	8-150	20-200	2.17	6/1	T
LT3000	2021	Saltwater OK	7.7	5.2	30.3	22.2	8-150	20-200	2.36	6/1	T
LT4000S-C	2021	Saltwater OK	8.2	5.2	32.3	26.7	8-150	20-200	2.36	6/1	T
LT4000-CXH	2021	Saltwater OK	8.2	6.2	39	26.7	12-150	30-200	2.36	6/1	T
LT3000-XH	2021	Saltwater OK	7.7	6.2	36.6	22.2	8-150	20-200	2.36	6/1	T

ZAION V

ZAION V (V for Versatile) is a carbon hybrid resin developed to make reels lighter and stronger. By precisely controlling the amount of hybrid carbon, it achieves a high level of lightness that surpasses metal and strength that rivals it. This versatile material can be applied to many reels, carrying forward the essence of ZAION, the highest specification of carbon hybrid resin.

MONOCOQUE BODY (ZAION V)

The MONOCOQUE BODY in DAIWA reels refers to a single-piece body structure. Traditional spinning reels covered the drive gear with a body and body cover, secured by several screws, which posed strength issues. The MONOCOQUE BODY eliminates the body cover, directly setting a high-precision plate into the body. This change supports the body with the entire plate surface instead of just screw points, significantly enhancing precision, rigidity, and sealing. Also, because the fixed part of the screw that occupied space inside the body has been removed, It allows for larger drive gears, providing more powerful retrieves and smoother fights with big fish.

MAGSEALED

DAIWA's MAGSEALED technology is designed to prevent water, salt, and debris from entering the reel, using magnetic fluid to form a barrier that protects critical components like bearings, line rollers, and gears from saltwater. DAIWA adapted magnetic fluid technology initially developed by NASA for dust protection in hard drives used in space. Unlike traditional rubber seals that increase handle rotation friction, the magnetic fluid is held in place by a magnetic field, reducing friction and enabling smooth operation. This technology enhances the reel's durability and performance, significantly improving reliability in harsh fishing environments without requiring meticulous maintenance.

TOUGH DIGIGEAR

DAIWA’s DIGIGEAR is a gear system realized through a manufacturing technique that accurately shapes the form derived from numerical analysis of power transmission efficiency by computer. Instead of casting, the gears are processed using forging, which provides higher strength, and then the gear teeth surfaces are smoothed through ultra-precision machine cutting, allowing for efficient power transmission. TOUGH DIGIGEAR enhances this by increasing the surface area of the gear teeth and the radius of the gear, further improving durability and strength, resulting in a smoother winding experience.

AIR ROTOR (ZAION V)

AIR ROTOR is designed to achieve the ideal spherical shape for a rotating body. Through high-precision rigidity analysis, it maintains the same level of rigidity as traditional rotors while achieving significant weight reduction and lower inertia. The reduction in inertia allows anglers to stop and wind the reel at will, providing excellent responsiveness and a lighter, smoother winding experience.

ATD (Automatic Drag)

DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.

LC-ABS

The LC-ABS spool features a two-step design on the front edge to enhance line release performance and streamline the flow. While maintaining the trouble-free usage of the previous ABS spool, it achieves an approximate 5% increase in casting distance combined with a reduction in spool weight.
