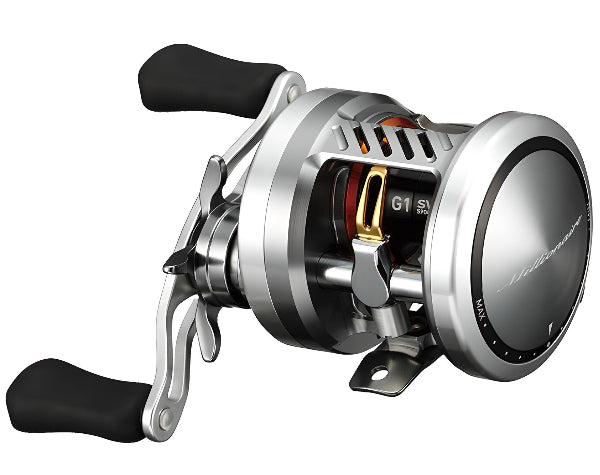

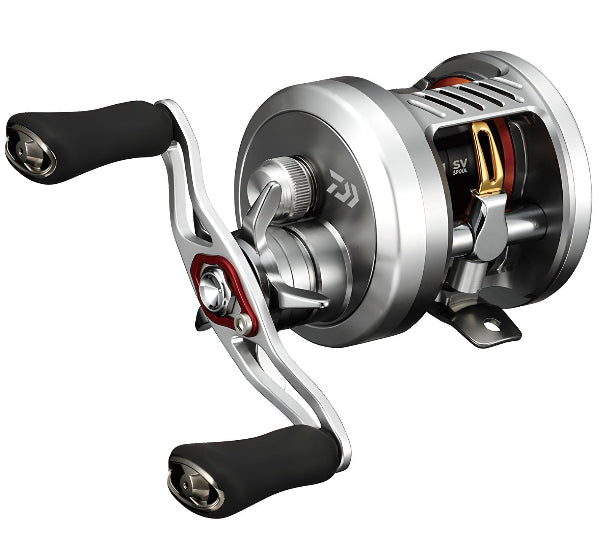

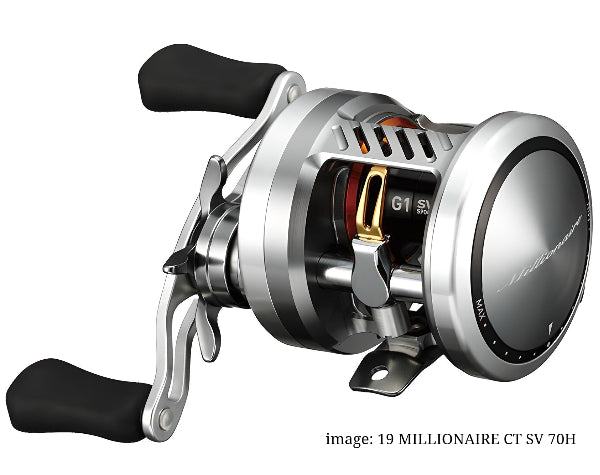

DAIWA 2019 Millionaire CT SV

Daiwa 2019 Millionaire CT SV Spec Chart

Line-up	Handle	Year	Salt or Fresh	Weight（ｇ）	Gear Ratio	Retrieve（cm/crank）	Max Drag（kg）	Mono line cap. (lb-m)	Spool diameter (mm)	Spool width (mm)	Handle Arm（mm）	Bearing (Ball/Roller)
70H	Right	2019	Saltwater OK	210	6.3	59	5	14-30～60、12-35～70	30	21	80	10/1
70HL	Left	2019	Saltwater OK	210	6.3	59	5	14-30～60、12-35～70	30	21	80	10/1
70SH	Right	2019	Saltwater OK	210	7.2	67	5	14-30～60、12-35～70	30	21	80	10/1
70SHL	Left	2019	Saltwater OK	210	7.2	67	5	14-30～60、12-35～70	30	21	80	10/1

Specifications in Pound-Yard Notation

Line-up	Handle	Year	Salt or Fresh	Weight（oz)	Gear Ratio	Retrieve（in/crank）	Max Drag（lb）	Mono line cap. (lb-yd)	Spool diameter (in)	Spool width (in)	Handle Arm（in）	Bearing (Ball/Roller)
70H	Right	2019	Saltwater OK	7.5	6.3	23.2	11.1	14-35～65、12-40～80	1.18	0.83	3.15	10/1
70HL	Left	2019	Saltwater OK	7.5	6.3	23.2	11.1	14-35～65、12-40～80	1.18	0.83	3.15	10/1
70SH	Right	2019	Saltwater OK	7.5	7.2	26.4	11.1	14-35～65、12-40～80	1.18	0.83	3.15	10/1
70SHL	Left	2019	Saltwater OK	7.5	7.2	26.4	11.1	14-35～65、12-40～80	1.18	0.83	3.15	10/1

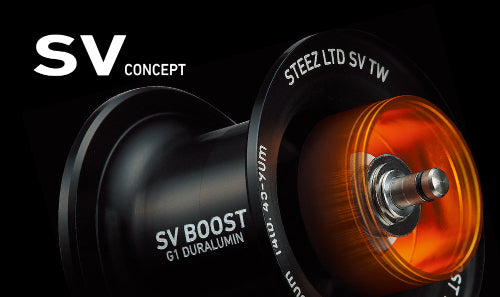

SV (Super Versatile) concept

The SV concept maximizes the effectiveness of magnetic brakes to deliver practical advantages in a field. It significantly reduces the risk of backlash, making casting easier and more effortless. With minimal adjustment of the magnetic dial, the SV concept allows for a wide range of lure weights—from lightweight rigs around 4 to 5 grams to heavier lures—to be handled smoothly and without stress.

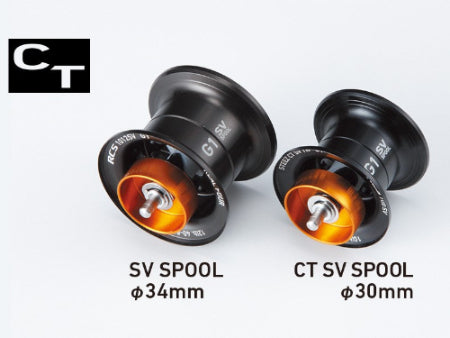

CT SV-SPOOL

The CT (Compact & Tough) CONCEPT features a compact body and a φ30mm G1 Duralumin CT SV SPOOL. The CT SV SPOOL, with its exceptional initial acceleration, not only offers versatile performance but also extends into the realm of finesse, delivering an unprecedented casting feel. The small-diameter design significantly improves accuracy in low-trajectory casts. Additionally, unlike spools specifically designed for bait finesse, the CT SV SPOOL spool boasts strength and durability, handling heavy lines of 16lb. or more. This makes it highly effective in increasingly demanding bass fishing environments.

G1 DURALUMIN SPOOL

G1 Duralumin is an advanced aluminum alloy that boasts twice the strength of magnesium and is 1.3 times stronger than super-duralumin. Known for being extremely lightweight, this material is also highly rigid, making it the top choice among lightweight alloys used in aircraft structures and precision instruments. To achieve an exceptionally lightweight feel without compromising strength, the winding surface of the spool has been thinned without any blanking in material, preserving its full strength. The result is unmatched rotational responsiveness due to its lightness and highly precise rotation thanks to its superior rigidity.

UTD (Ultimate Tournament Drag)

By re-evaluating the washers and grease from the ground up, DAIWA has refined the drag system to reduce initial resistance when a fish is hooked, ensuring the line starts to slip smoothly and consistently. This advanced drag system, which surpasses the previously established standards set by DAIWA, is designated as "UTD" (Ultimate Tournament Drag).

ZERO SHAFT

Typically, spools are supported by a shaft integrated with the spool itself, but with ZERO SHAFT, the spool is supported solely by ball bearings. By eliminating the shaft, unnecessary resistance is removed, resulting in optimal spool rotation. This feature prioritizes casting performance, making it a crucial element of the stress free casting. Previously known as the Speed Shaft, this spool mechanism was renamed "ZERO SHAFT" in 2021.
