Description of "DAIWA 2020 ZILLION 10.0L-SV TW "
Technology Features of DAIWA 2020 ZILLION 10.0L-SV TW

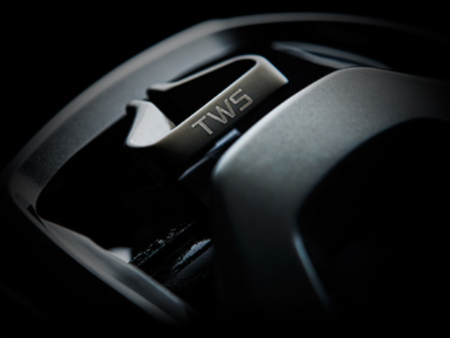

TWS (T-Wing System)
Traditional level wind systems were designed, as their name suggests, to lay the line evenly across the spool. However, during casting, they often created resistance, leading manufacturers to experiment with different internal diameters and shapes to enhance line release. But these efforts had their limits. Excessive enlargement of the level wind compromised its original function, restricting advancements to minimal adjustments, such as refining the internal diameter. Some solutions included increasing the distance between the spool and the level wind or narrowing the spool width to prevent the line from hitting the level wind at sharp angles. While partially effective, these methods were essentially temporary fixes that led to side effects such as elongating the reel body, reducing palming comfort, or decreasing line capacity.
DAIWA's TWS (T-Wing System) addresses these contradictions not with compromise but with innovation, achieving both precise line winding and an expanded resistance-free range during line release. By significantly widening the resistance-free zone where the line makes contact with the level wind, particularly right after it leaves the spool, TWS has dramatically enhanced the long-casting performance of DAIWA baitcasting reels. Simultaneously, the smooth line flow facilitated by TWS has proven effective in preventing backlashes.

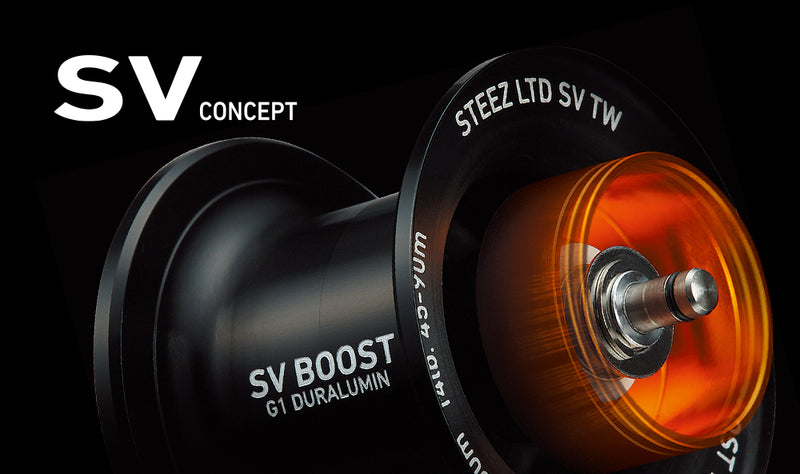

SV (Super Versatile) concept
The SV concept maximizes the effectiveness of magnetic brakes to deliver practical advantages in a field. It significantly reduces the risk of backlash, making casting easier and more effortless. With minimal adjustment of the magnetic dial, the SV concept allows for a wide range of lure weights—from lightweight rigs around 4 to 5 grams to heavier lures—to be handled smoothly and without stress.

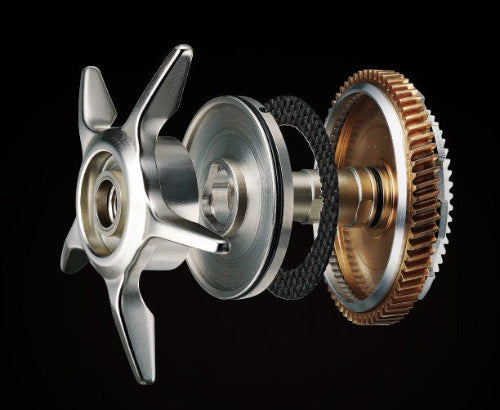

UTD (Baitcasting)
By re-evaluating the washers and grease from the ground up, DAIWA has refined the drag system to reduce initial resistance when a fish is hooked, ensuring the line starts to slip smoothly and consistently. This advanced drag system, which surpasses the previously established standards set by DAIWA, is designated as "UTD" (Ultimate Tournament Drag).

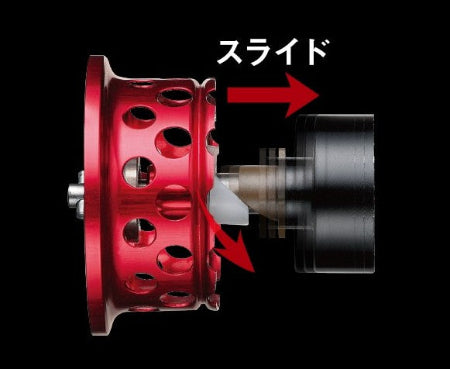

AIR BRAKE SYSTEM
The AIR BRAKE SYSTEM significantly enhances casting accuracy while minimizing the risk of backlash, providing a stress-free experience. During full casts, the brake engages effectively, but in low-speed operations like pitching, the inductor rotor remains retracted, reducing the braking force. This system allows for low-trajectory casting and seamlessly balances pitching and casting at a high level.

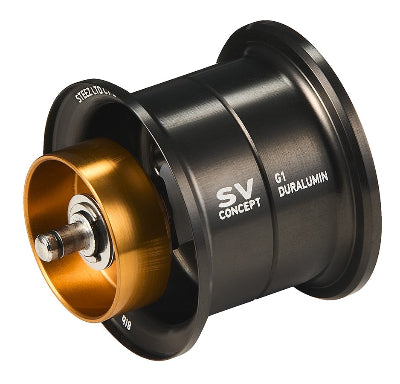

G1 DURALUMIN SPOOL
G1 Duralumin is an advanced aluminum alloy that boasts twice the strength of magnesium and is 1.3 times stronger than super-duralumin. Known for being extremely lightweight, this material is also highly rigid, making it the top choice among lightweight alloys used in aircraft structures and precision instruments. To achieve an exceptionally lightweight feel without compromising strength, the winding surface of the spool has been thinned without any blanking in material, preserving its full strength. The result is unmatched rotational responsiveness due to its lightness and highly precise rotation thanks to its superior rigidity.
Daiwa 2020 Zillion 10.0 SV TW Spec Chart
Daiwa 2020 Zillion 10.0 SV TW Line-up
| Line-up | Handle | Year | Salt or Fresh | Weight（ｇ） | Gear Ratio | Retrieve（cm/crank） | Max Drag（kg） | Mono line cap. (lb-m) | Spool diameter (mm) | Spool width (mm) | Handle Arm（mm） | Bearing (Ball/Roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.0R | Right | 2020 | Freshwater Only | 215 | 10 | 106 | 4.5 | 14-45～90, 16-40～80 | 34 | 24 | 90 | 10/1 |
| 10.0L | Left | 2020 | Freshwater Only | 215 | 10 | 106 | 4.5 | 14-45～90, 16-40～80 | 34 | 24 | 90 | 10/1 |
Specifications in Pound-Yard Notation
| Line-up | Handle | Year | Salt or Fresh | Weight（oz) | Gear Ratio | Retrieve（in/crank） | Max Drag（lb） | Mono line cap. (lb-yd) | Spool diameter (in) | Spool width (in) | Handle Arm（in） | Bearing (Ball/Roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.0R | Right | 2020 | Freshwater Only | 7.7 | 10 | 41.7 | 10 | 14-50～100, 16-45～90 | 1.34 | 0.94 | 3.54 | 10/1 |
| 10.0L | Left | 2020 | Freshwater Only | 7.7 | 10 | 41.7 | 10 | 14-50～100, 16-45～90 | 1.34 | 0.94 | 3.54 | 10/1 |
