Technology Features
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
MGL SPOOL III
The third-generation Magnumlite Spool, MGL SPOOL III, represents a significant evolution from its predecessors. This spool has been further thinned to reduce inertia by 15% compared to MGL SPOOL II, without compromising durability. It offers enhanced long-casting performance, a swift and smooth start, and reduced trouble during casts. The spool's design allows for low-trajectory casts into tight spots with ease.
I-DC4
The I-DC4 is a new DC braking system that integrates unprecedented brake correction control, allowing it to handle a wide range of lures with just a four-stage external dial. It offers a combination of excellent backlash prevention and long casting performance, while simplifying brake settings for ease of use.
S3D SPOOL
The S3D SPOOL features an entirely redesigned cutting method, significantly enhancing the spool's precision. As a result, this design improves the smoothness and reduces vibrations during casting, leading to a quieter and more stable performance.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
SUPER FREE SPOOL
SUPER FREE SPOOL is a system where the spool shaft is supported by only two bearings when the reel's clutch is disengaged. This design minimizes spool wobble and eliminates rotational resistance, allowing for exceptionally smooth and light spool free performance.
SPEC CHART

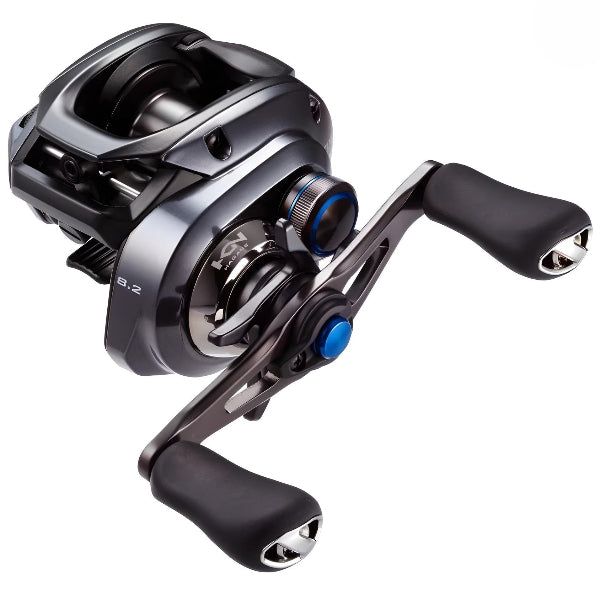

Shimano 2023 SLX DC
| Line-up | Year | Salt or Fresh | Weight（ｇ） | Gear ratio | Retrieve（cm/crank） | Max drag (kg) | Mono line cap. (lb-m) | Handle Arm（mm） | Spool diameter (mm) | Spool width (mm) | Bearing (Ball/Roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 RIGHT | 2023 | Saltwater OK | 200 | 6.3 | 65 | 5.5 | 12-100, 14-90, 16-80, 20-65 | 42 | 33 | 21 | 6/1 |
| 71 LEFT | 2023 | Saltwater OK | 200 | 6.3 | 65 | 5.5 | 12-100, 14-90, 16-80, 20-65 | 42 | 33 | 21 | 6/1 |
| 70HG RIGHT | 2023 | Saltwater OK | 200 | 7.2 | 75 | 5.5 | 12-100, 14-90, 16-80, 20-65 | 42 | 33 | 21 | 6/1 |
| 71HG LEFT | 2023 | Saltwater OK | 200 | 7.2 | 75 | 5.5 | 12-100, 14-90, 16-80, 20-65 | 42 | 33 | 21 | 6/1 |
| 70XG RIGHT | 2023 | Saltwater OK | 200 | 8.2 | 85 | 5 | 12-100, 14-90, 16-80, 20-65 | 45 | 33 | 21 | 6/1 |
| 71XG LEFT | 2023 | Saltwater OK | 200 | 8.2 | 85 | 5 | 12-100, 14-90, 16-80, 20-65 | 45 | 33 | 21 | 6/1 |
IN POUND-YARD NOTATION
| Line-up | Year | Salt or Fresh | Weight（oz） | Gear ratio | Retrieve（in/crank） | Max drag (lb) | Mono line cap. (lb-yd) | Handle Arm（in） | Spool diameter (in) | Spool width (in) | Bearing (Ball/Roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 RIGHT | 2023 | Saltwater OK | 7.1 | 6.3 | 25.6 | 12.2 | 12-110, 14-100, 16-90, 20-70 | 1.65 | 1.3 | 0.83 | 6/1 |
| 71 LEFT | 2023 | Saltwater OK | 7.1 | 6.3 | 25.6 | 12.2 | 12-110, 14-100, 16-90, 20-70 | 1.65 | 1.3 | 0.83 | 6/1 |
| 70HG RIGHT | 2023 | Saltwater OK | 7.1 | 7.2 | 29.5 | 12.2 | 12-110, 14-100, 16-90, 20-70 | 1.65 | 1.3 | 0.83 | 6/1 |
| 71HG LEFT | 2023 | Saltwater OK | 7.1 | 7.2 | 29.5 | 12.2 | 12-110, 14-100, 16-90, 20-70 | 1.65 | 1.3 | 0.83 | 6/1 |
| 70XG RIGHT | 2023 | Saltwater OK | 7.1 | 8.2 | 33.5 | 11.1 | 12-110, 14-100, 16-90, 20-70 | 1.77 | 1.3 | 0.83 | 6/1 |
| 71XG LEFT | 2023 | Saltwater OK | 7.1 | 8.2 | 33.5 | 11.1 | 12-110, 14-100, 16-90, 20-70 | 1.77 | 1.3 | 0.83 | 6/1 |
