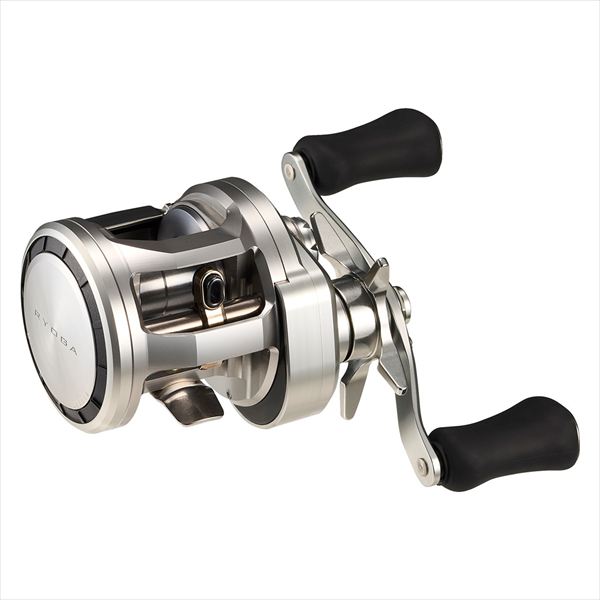

Description of "DAIWA 2026 RYOGA 150PL"
Technology Features of DAIWA 2026 RYOGA 150PL
HYPERDRIVE DESIGN
In 2021, DAIWA’s new baitcasting reels underwent a significant evolution, marking a new era of innovation. The term that embodies this transformation is "HYPERDRIVE DESIGN." This new design philosophy aims to elevate all basic performance levels, ensuring they remain consistently high over time. At its core is the HYPERDRIVE DIGIGEAR, which includes both the drive and pinion gears. Supporting this are three additional key components: HYPER DOUBLE SUPPORT (pinion gear support system), HYPER ARMED HOUSING (reel body), and HYPER TOUGH CLUTCH. These four critical elements, refined with DAIWA's cutting-edge technology and new innovations, collectively deliver exceptional drive performance. A model featuring HYPERDRIVE DIGIGEAR and enhanced rotational performance falls under the HYPERDRIVE DESIGN category.
HYPERDRIVE DIGIGEAR
HYPERDRIVE DIGIGEAR is a newly designed gear system for baitcasting and conventional reels, engineered to maintain strong and smooth rotation over time. DAIWA’s unique technology avoids reducing the module size of the gear teeth, which is crucial for durability. Instead, it enhances meshing efficiency by shaping the gear teeth with a bullet-shaped silhouette that optimizes the pressure angle. This design ensures the initial smoothness of the reel lasts longer, achieving an exceptional balance between smooth rotation and rotational durability. Compared to previous DAIWA gears, the noise felt during handle rotation, such as roughness, has been significantly reduced by over 50% in the HYPERDRIVE DIGIGEAR.
HYPER DOUBLE SUPPORT
The HYPER DOUBLE SUPPORT system is a pinion gear support mechanism that enhances smoothness, power, and lightness in the reel’s operation. By precisely supporting both ends of the pinion gear with two ball bearings, it ensures that the power input from the handle is transmitted without loss, allowing for powerful and light winding even under load. The pinion gear, a crucial component on par with the drive gear in baitcasting reels, has also undergone significant evolution. Like the drive gear, the pinion gear’s tooth surface has been updated with new specifications, and the use of special materials has greatly reduced issues such as corrosion, seizing, and damage, thereby significantly contributing to the gear's durability.
HYPER ARMED HOUSING (Full Aluminum)
The HYPER ARMED HOUSING is a body system designed to provide high rigidity and precision, supporting the internal structure of the reel to deliver smooth winding and power. A key requirement is the use of metal materials for the frame, which, when combined with side plates and set plates, ensures that the reel's fundamental performance is maintained over an extended period.
HYPER TOUGH CLUTCH
The HYPER TOUGH CLUTCH system delivers precise on/off performance, maintaining its reliability through thousands of cycles. It is designed to be highly durable, even in saltwater environments with high salt concentrations. Featuring an advanced insulation structure, this system has achieved a 99% reduction in sticking-related repairs compared to DAIWA's previous clutch systems, showcasing its exceptional performance in harsh conditions.
LC (Long Cast) CONCEPT
The LC concept excels in long-distance casting, providing extended flight during the latter half of the cast. It is particularly well-suited for medium to heavy lures, with casting distance increasing as you snap the rod sharply. The LC concept also offers a sporty and exhilarating casting feel, making it highly appealing to anglers.
MAG-Z BOOST
MAG-Z BOOST is a distance-focused setting that maximizes the long-casting performance of MAGFORCE-Z. Due to its nature of activating the inductor rotor through centrifugal force, MAGFORCE-Z is less suitable for lightweight lures but ideal for long casts with medium to heavy lures, where every bit of input translates to greater casting distance. By adding the BOOST spool's characteristics, the system avoids the backlash zone and then instantly retracts the two-stage inductor rotor to a single stage. This allows for an extended trajectory from mid-cast to just before landing, achieving maximum casting distance.
ATD (Automatic Drag)
DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.
ZERO SHAFT
Typically, spools are supported by a shaft integrated with the spool itself, but with ZERO SHAFT, the spool is supported solely by ball bearings. By eliminating the shaft, unnecessary resistance is removed, resulting in optimal spool rotation. This feature prioritizes casting performance, making it a crucial element of the stress free casting. Previously known as the Speed Shaft, this spool mechanism was renamed "ZERO SHAFT" in 2021.
ZERO ADJUST
Since 2016, DAIWA has referred to the mechanical brake as the Zero Adjuster. This change was prompted by the evolution of DAIWA's baitcasting reels, where the primary brake system, MAGFORCE, reached its pinnacle, rendering the secondary mechanical brake unnecessary for braking purposes. Instead of functioning as a brake, the mechanical brake now serves solely to set the spool shaft's lateral movement within an optimal range (less than 0.2mm). By eliminating the complexity and ambiguity of using a secondary brake, the ZERO ADJUST system ensures complete spool control with just the main brake.
DAIWA 2026 RYOGA Spec Chart
DAIWA 2026 RYOGA
| Line-up | Handle | Year | Salt or Fresh | Weight（g） | Gear Ratio | Retrieve（cm/crank） | Max Drag（kg） | Nylon line cap.（lb-m） | Braided line cap.（lb-m） | Handle Arm（mm） | Spool diameter（mm） | Spool width（mm） | Bearing（Ball/Roller） | JAN Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SV 100P | Right | 2026 | Saltwater OK | 265 | 5.3 | 56 | 6 | 12-100, 14-90, 16-80 | 40-150, 55-90 | 90 | 34 | 24 | 8/1 | 4550133217210 |
| SV 100PL | Left | 2026 | Saltwater OK | 265 | 5.3 | 56 | 6 | 12-100, 14-90, 16-80 | 40-150, 55-90 | 90 | 34 | 24 | 8/1 | 4550133217227 |
| SV 100 | Right | 2026 | Saltwater OK | 265 | 6.3 | 67 | 6 | 12-100, 14-90, 16-80 | 40-150, 55-90 | 90 | 34 | 24 | 8/1 | 4550133217234 |
| SV 100L | Left | 2026 | Saltwater OK | 265 | 6.3 | 67 | 6 | 12-100, 14-90, 16-80 | 40-150, 55-90 | 90 | 34 | 24 | 8/1 | 4550133217241 |
| 150P | Right | 2026 | Saltwater OK | 285 | 5.3 | 59 | 6 | 16-125, 20-100, 25-80 | 40-230, 55-150, 60-100 | 90 | 36 | 27 | 8/1 | 4550133217258 |
| 150PL | Left | 2026 | Saltwater OK | 285 | 5.3 | 59 | 6 | 16-125, 20-100, 25-80 | 40-230, 55-150, 60-100 | 90 | 36 | 27 | 8/1 | 4550133217265 |
| 150H | Right | 2026 | Saltwater OK | 290 | 7.3 | 82 | 6 | 16-125, 20-100, 25-80 | 40-230, 55-150, 60-100 | 100 | 36 | 27 | 8/1 | 4550133217272 |
| 150HL | Left | 2026 | Saltwater OK | 290 | 7.3 | 82 | 6 | 16-125, 20-100, 25-80 | 40-230, 55-150, 60-100 | 100 | 36 | 27 | 8/1 | 4550133217289 |
Specifications in Pound-Yard Notation
| Line-up | Handle | Year | Salt or Fresh | Weight（oz） | Gear Ratio | Retrieve（in/crank） | Max Drag（lb） | Nylon line cap.（lb-yd） | Braided line cap.（lb-yd） | Handle Arm（in） | Spool diameter（in） | Spool width（in） | Bearing（Ball/Roller） | JAN Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SV 100P | Right | 2026 | Saltwater OK | 9.3 | 5.3 | 22.0 | 13.2 | 12-110, 14-100, 16-90 | 40-165, 55-100 | 3.54 | 1.34 | 0.94 | 8/1 | 4550133217210 |
| SV 100PL | Left | 2026 | Saltwater OK | 9.3 | 5.3 | 22.0 | 13.2 | 12-110, 14-100, 16-90 | 40-165, 55-100 | 3.54 | 1.34 | 0.94 | 8/1 | 4550133217227 |
| SV 100 | Right | 2026 | Saltwater OK | 9.3 | 6.3 | 26.4 | 13.2 | 12-110, 14-100, 16-90 | 40-165, 55-100 | 3.54 | 1.34 | 0.94 | 8/1 | 4550133217234 |
| SV 100L | Left | 2026 | Saltwater OK | 9.3 | 6.3 | 26.4 | 13.2 | 12-110, 14-100, 16-90 | 40-165, 55-100 | 3.54 | 1.34 | 0.94 | 8/1 | 4550133217241 |
| 150P | Right | 2026 | Saltwater OK | 10.1 | 5.3 | 23.2 | 13.2 | 16-140, 20-110, 25-90 | 40-255, 55-165, 60-110 | 3.54 | 1.42 | 1.06 | 8/1 | 4550133217258 |
| 150PL | Left | 2026 | Saltwater OK | 10.1 | 5.3 | 23.2 | 13.2 | 16-140, 20-110, 25-90 | 40-255, 55-165, 60-110 | 3.54 | 1.42 | 1.06 | 8/1 | 4550133217265 |
| 150H | Right | 2026 | Saltwater OK | 10.2 | 7.3 | 32.3 | 13.2 | 16-140, 20-110, 25-90 | 40-255, 55-165, 60-110 | 3.94 | 1.42 | 1.06 | 8/1 | 4550133217272 |
| 150HL | Left | 2026 | Saltwater OK | 10.2 | 7.3 | 32.3 | 13.2 | 16-140, 20-110, 25-90 | 40-255, 55-165, 60-110 | 3.94 | 1.42 | 1.06 | 8/1 | 4550133217289 |
