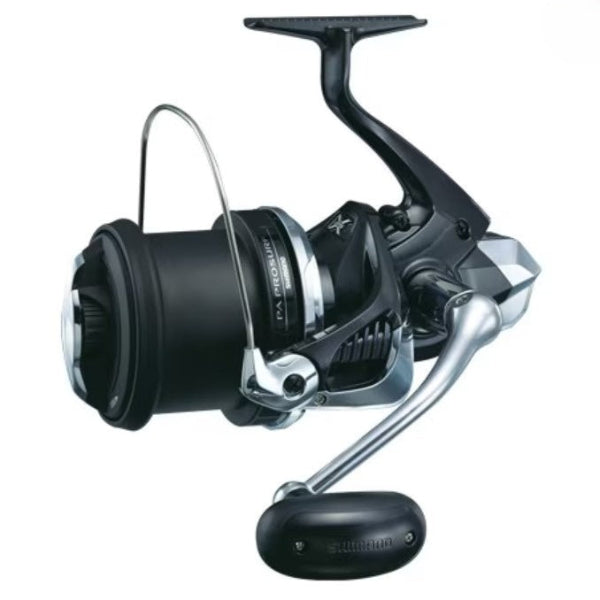

Technology Features of Shimano 2015 Power Aero Pro Surf HYOUJYUN
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
X-SHIP
X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.
G FREE BODY
The G Free Body relocates the sliding functional parts needed for spool movement to the upper part of the reel body, bringing the reel's center of gravity closer to the angler's hand. This design enhances the feeling of unity with the rod, making the reel feel lighter. It also reduces casting fatigue and improves rod handling.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
Shimano 2015 Power Aero Pro Surf Spec Chart
Shimano 2015 Power Aero Pro Surf Line-up
| Line-up | Year | Salt or Fresh | Weight（ｇ） | Gear Ratio | Retrieve（cm/crank） | Max Drag（kg） | Allowable power (kg) | Mono line cap. (lb-m) | Braided line cap. (lb-m) | Handle Arm（mm） | Spool diameter (mm) | Spool stroke (mm) | Bearing (Ball/Roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HYOUJYUN | 2015 | Saltwater OK | 600 | 3.5 | 80 | 19 | 19 | 12-200, 16-150, 20-200 | 30-250, 40-200, 55-130 | 90 | 73 | 35 | 5/1 |
| FUTO | 2015 | Saltwater OK | 600 | 3.5 | 80 | 19 | 19 | 16-250, 20-200, 22-170 | 55-225, 60-175, 80-140 | 90 | 73 | 35 | 5/1 |
| GOKUFUTO | 2015 | Saltwater OK | 600 | 3.5 | 80 | 19 | 19 | 22-275, 28-200, 35-150 | 80-225, 90-185, 100-140 | 90 | 73 | 35 | 5/1 |
Specifications in Pound-Yard Notation
| Line-up | Year | Salt or Fresh | Weight（oz) | Gear Ratio | Retrieve（in/crank） | Max Drag（lb） | Allowable power (kg) | Mono line cap. (lb-yd) | Braided line cap. (lb-yd) | Handle Arm（in） | Spool diameter (in) | Spool stroke (in) | Bearing (Ball/Roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HYOUJYUN | 2015 | Saltwater OK | 21.4 | 3.5 | 31.5 | 42.2 | 42.2 | 12-220, 16-165, 20-220 | 30-275, 40-220, 55-145 | 3.54 | 2.87 | 1.38 | 5/1 |
| FUTO | 2015 | Saltwater OK | 21.4 | 3.5 | 31.5 | 42.2 | 42.2 | 16-275, 20-220, 22-190 | 55-250, 60-190, 80-155 | 3.54 | 2.87 | 1.38 | 5/1 |
| GOKUFUTO | 2015 | Saltwater OK | 21.4 | 3.5 | 31.5 | 42.2 | 42.2 | 22-300, 28-220, 35-165 | 80-250, 90-205, 100-155 | 3.54 | 2.87 | 1.38 | 5/1 |
