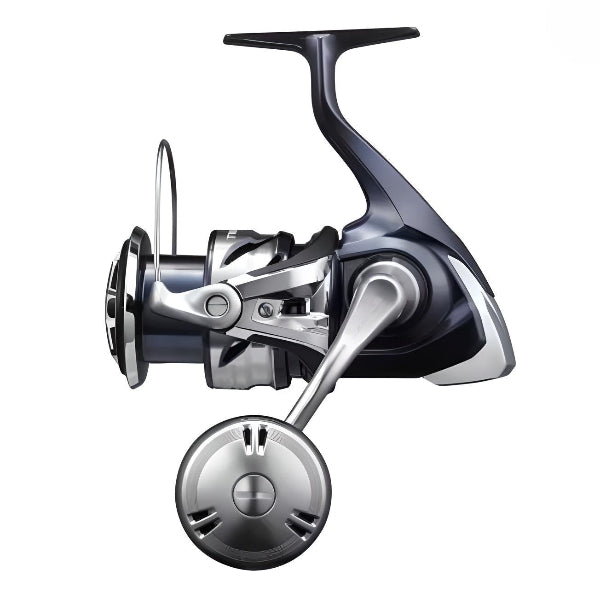

Shimano 2021 TWN POWER SW 4000XG spinning reel product image

Shimano 2021 TWIN POWER SW 4000XG

Name: Shimano 2021 TWIN POWER SW 4000XG
Brand: SHIMANO
Price: 433.00 USD
Availability: OutOfStock

SHIMANO

RuffRuff Apps by Tsun

Price:

$433.00

Quantity:

View all models of Shimano 2021 TWIN POWER SW

Available Countries and Delivery Time

What is Pre-Order?

FAQ

Share this product

Gear ratio: 6.2 Maximum Drag force: 11kg Weight: 350g Spool diameter/stroke: 52m/19mm Line Capacity Nylon: #3.5-170m, #4-150m, #5-125m Line Capacity PE: #1.0-490m, #1.5-320m, #2.0-240m Winding length: 101cm/per handle rotation Handle length: 60mm Bearing quantity BB/roller: 9/1 The lightest extra in the series High gear model. High durability SW specification equipped with extra high gear boasting a gear ratio of 6.2 and a maximum hoisting length of 101 cm. The quick collection and thread dandruff elimination efficiency that makes use of the XG winding speed is ideal for fishing that shoots points at a good tempo. Combined with the lightest weight in the series, it is also easy to use for casting games such as shore jigging and plugging.

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

INFINITY DRIVE

INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.

SILENT DRIVE

SILENT DRIVE involves a comprehensive redesign of the entire body and drive-related components, meticulously eliminating minute gaps, play, and vibration between parts. Areas of improvement include the drive gear, worm shaft, worm shaft pin, worm shaft gear, and slider gear, among others. This results in a new level of smooth rotational performance and a quiet, refined reeling experience.

X-SHIELD

Shimano's waterproof mechanisms include "Core Protect," "X-Protect," and "X-Shield." "X-Shield," used in the SW series, is a waterproof mechanism designed to prevent water ingress by sealing gaps with special seals. Strong sealing is applied at various points, including the body-lid interface and the spool-drag knob contact area, to block water entry paths. This ensures high reliability and durability in the harsh conditions of SW game fishing. While completely sealing gaps increases the friction coefficient during reel rotation, potentially affecting the smoothness of the reel, the primary focus is on maximizing waterproof performance.

X-PROTECT

X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.

For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.

AR-C SPOOL

The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.

RIGID SUPPORT DRAG

The Rigid Support Drag system supports the spool with two bearings located on the main shaft and inside the spool. This setup minimizes spool wobble and delivers stable, smooth drag performance.

SA-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.

ONE-PIECE BAIL

The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.

Shimano 2021 Twin Power SW Spec Chart

Shimano 2021 Twin Power SW Line-up

Line-up	Year	Salt or Fresh	Weight（ｇ）	Gear Ratio	Retrieve（cm/crank）	Max Drag（kg）	Mono line cap. (lb-m)	Fluoro line cap. (lb-m)	Braided line cap. (lb-m)	Handle Arm（mm）	Spool diameter (mm)	Spool stroke (mm)	Bearing (Ball/Roller)
4000XG	2021	Saltwater OK	350	6.2	101	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	60	52	19	9/1
5000HG	2021	Saltwater OK	415	5.7	97	13	16-200, 20-150, 22-130	-	40-350, 55-240, 60-170	65	54	19	10/1
5000XG	2021	Saltwater OK	415	6.2	105	13	16-200, 20-150, 22-130	-	40-350, 55-240, 60-170	65	54	19	10/1
6000PG	2021	Saltwater OK	420	4.6	83	13	16-240, 20-190, 22-160	-	40-440, 55-300, 60-210	65	57.5	19	10/1
6000HG	2021	Saltwater OK	420	5.7	103	13	16-240, 20-190, 22-160	-	40-440, 55-300, 60-210	65	57.5	19	10/1
6000XG	2021	Saltwater OK	420	6.2	112	13	16-240, 20-190, 22-160	-	40-440, 55-300, 60-210	65	57.5	19	10/1
8000PG	2021	Saltwater OK	615	4.9	94	25	-	-	55-410, 60-300, 80-250	75	61	22	10/1
8000HG	2021	Saltwater OK	615	5.6	107	25	-	-	55-410, 60-300, 80-250	75	61	22	10/1
10000PG	2021	Saltwater OK	655	4.9	102	25	22-300, 28-210, 35-160	-	60-400, 80-300, 90-250	75	66	22	10/1
10000HG	2021	Saltwater OK	655	5.6	116	25	22-300, 28-210, 35-160	-	60-400, 80-300, 90-250	75	66	22	10/1
14000PG	2021	Saltwater OK	660	4.9	106	25	35-195, 40-155, 45-140	-	90-300, 100-200, 130-165	75	68.6	22	10/1
14000XG	2021	Saltwater OK	660	6.2	134	25	35-195, 40-155, 45-140	-	90-300, 100-200, 130-165	80	68.6	22	10/1

Specifications in Pound-Yard Notation

Line-up	Year	Year	Weight（oz)	Gear Ratio	Retrieve（in/crank）	Max Drag（lb）	Mono line cap. (lb-yd)	Fluoro line cap. (lb-yd)	Braided line cap. (lb-yd)	Handle Arm（in）	Spool diameter (in)	Spool stroke (in)	Bearing (Ball/Roller)
4000XG	2021	Saltwater OK	12.5	6.2	39.8	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.36	2.05	0.75	9/1
5000HG	2021	Saltwater OK	14.8	5.7	38.2	28.9	16-220, 20-165, 22-145	-	40-385, 55-265, 60-190	2.56	2.13	0.75	10/1
5000XG	2021	Saltwater OK	14.8	6.2	41.3	28.9	16-220, 20-165, 22-145	-	40-385, 55-265, 60-190	2.56	2.13	0.75	10/1
6000PG	2021	Saltwater OK	15	4.6	32.7	28.9	16-265, 20-210, 22-180	-	40-485, 55-330, 60-230	2.56	2.26	0.75	10/1
6000HG	2021	Saltwater OK	15	5.7	40.6	28.9	16-265, 20-210, 22-180	-	40-485, 55-330, 60-230	2.56	2.26	0.75	10/1
6000XG	2021	Saltwater OK	15	6.2	44.1	28.9	16-265, 20-210, 22-180	-	40-485, 55-330, 60-230	2.56	2.26	0.75	10/1
8000PG	2021	Saltwater OK	22	4.9	37	55.6	-	-	55-450, 60-330, 80-275	2.95	2.4	0.87	10/1
8000HG	2021	Saltwater OK	22	5.6	42.1	55.6	-	-	55-450, 60-330, 80-275	2.95	2.4	0.87	10/1
10000PG	2021	Saltwater OK	23.4	4.9	40.2	55.6	22-330, 28-230, 35-180	-	60-440, 80-330, 90-275	2.95	2.6	0.87	10/1
10000HG	2021	Saltwater OK	23.4	5.6	45.7	55.6	22-330, 28-230, 35-180	-	60-440, 80-330, 90-275	2.95	2.6	0.87	10/1
14000PG	2021	Saltwater OK	23.6	4.9	41.7	55.6	35-215, 40-170, 45-155	-	90-330, 100-220, 130-180	2.95	2.7	0.87	10/1
14000XG	2021	Saltwater OK	23.6	6.2	52.8	55.6	35-215, 40-170, 45-155	-	90-330, 100-220, 130-180	3.15	2.7	0.87	10/1
