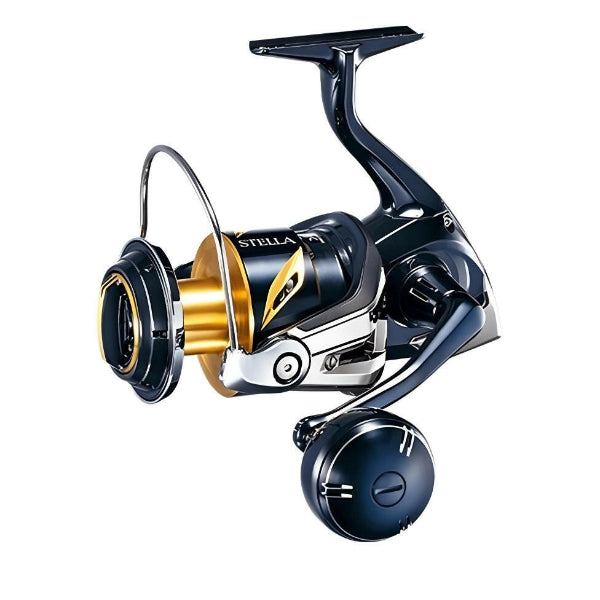

Shimano 2019 STELLA SW 8000PG

Name: Shimano 2019 STELLA SW 8000PG
Brand: SHIMANO
Price: 833.00 USD
Availability: InStock

SHIMANO

RuffRuff Apps by Tsun

Price:

$833.00

Quantity:

View all models of Shimano STELLA SW

Available Countries and Delivery Time

What is Pre-Order?

FAQ

Share this product

Gear ratio: 4.9 Practical drag force: 18.0kg Maximum drag force: 25.0kg Weight: 625g Line Capacity PE: #3-410m, #4-300m, #5-250m Winding length: 94cm/per handle rotation Handle length: 75mm Bearing quantity BB/Roller: 13/1 A jigging model with a low gear version of 8000HG and an emphasis on power. Similar to HG, it has significantly reduced rotational inertia and weight compared to conventional products. By combining this with the feature of low gear, it is possible to make the jig action more technically and more delicately. If you want to pull out one more item in the area that gets rubbed, this is the model. Of course, with the Infinity Drive, you can wind it even more powerfully. (2019 model)

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

INFINITY DRIVE

INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.

SILENT DRIVE

SILENT DRIVE involves a comprehensive redesign of the entire body and drive-related components, meticulously eliminating minute gaps, play, and vibration between parts. Areas of improvement include the drive gear, worm shaft, worm shaft pin, worm shaft gear, and slider gear, among others. This results in a new level of smooth rotational performance and a quiet, refined reeling experience.

X-SHIELD

Shimano's waterproof mechanisms include "Core Protect," "X-Protect," and "X-Shield." "X-Shield," used in the SW series, is a waterproof mechanism designed to prevent water ingress by sealing gaps with special seals. Strong sealing is applied at various points, including the body-lid interface and the spool-drag knob contact area, to block water entry paths. This ensures high reliability and durability in the harsh conditions of SW game fishing. While completely sealing gaps increases the friction coefficient during reel rotation, potentially affecting the smoothness of the reel, the primary focus is on maximizing waterproof performance.

X-PROTECT

X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.

For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.

X TOUGH DRAG

In addition to the standard rigid support drag, the X Tough Drag features drag washers made exclusively from metal and carbon, supporting the spool from both the top and bottom. This design enhances heat resistance and durability, resulting in smoother and more stable drag performance.

AR-C SPOOL

The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.

RIGID SUPPORT DRAG

The Rigid Support Drag system supports the spool with two bearings located on the main shaft and inside the spool. This setup minimizes spool wobble and delivers stable, smooth drag performance.

SA-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.

ONE-PIECE BAIL

The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.

Shimano Stella SW Spec Chart

Shimano Stella SW Line-up

Line-up	Year	Salt or Fresh	Weight（ｇ）	Gear Ratio	Retrieve（cm/crank）	Max Drag（kg）	Mono line cap. (lb-m)	Fluoro line cap. (lb-m)	Braided line cap. (lb-m)	Handle Arm（mm）	Spool diameter (mm)	Spool stroke (mm)	Bearing (Ball/Roller)
4000HG	2020	Saltwater OK	355	5.7	93	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	60	52	19	12/1
4000XG	2020	Saltwater OK	355	6.2	101	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	60	52	19	12/1
5000HG	2020	Saltwater OK	420	5.7	97	13	16-200, 20-150, 24-130	-	40-350, 55-240, 60-170	65	54	19	13/1
5000XG	2020	Saltwater OK	420	6.2	105	13	16-200, 20-150, 24-130	-	40-350, 55-240, 60-170	65	54	19	13/1
6000PG	2020	Saltwater OK	425	4.6	83	13	16-240, 20-190, 22-160	-	40-440, 55-300, 60-210	65	57.5	19	13/1
6000HG	2020	Saltwater OK	425	5.7	103	13	16-240, 20-190, 22-160	-	40-440, 55-300, 60-210	65	57.5	19	13/1
6000XG	2020	Saltwater OK	425	6.2	112	13	16-240, 20-190, 22-160	-	40-440, 55-300, 60-210	65	57.5	19	13/1
8000HG	2019	Saltwater OK	625	5.6	107	25	For braided line only	For braided line only	55-410, 60-300, 80-250	75	61	22	13/1
8000PG	2019	Saltwater OK	625	4.9	94	25	For braided line only	For braided line only	55-410, 60-300, 80-250	75	61	22	13/1
10000PG	2019	Saltwater OK	670	4.9	102	25	22-300, 28-210, 35-160	-	60-400, 80-300, 90-250	75	66	22	13/1
10000HG	2022	Saltwater OK	670	5.6	116	25	22-300, 28-210, 35-160	-	60-400, 80-300, 90-250	75	66	22	13/1
14000PG	2019	Saltwater OK	675	4.9	106	25	35-195, 40-155, 45-140	-	90-300, 100-200, 130-165	75	68.6	22	13/1
14000XG	2019	Saltwater OK	675	6.2	134	25	35-195, 40-155, 45-140	-	90-300, 100-200, 130-165	80	68.6	22	13/1
18000HG	2020	Saltwater OK	875	5.7	129	28	35-310, 40-240, 45-200	-	80-500, 90-400, 100-300	85	72	28	13/1
20000PG	2020	Saltwater OK	885	4.4	104	28	35-310, 40-240, 45-200	-	80-500, 90-400, 100-300	85	75.5	28	13/1
30000	2020	Saltwater OK	975	4.4	131	25	45-400, 55-300	-	100-600, 130-475	85	95	28	13/1

Specifications in Pound-Yard Notation

Line-up	Year	Salt or Fresh	Weight（oz)	Gear Ratio	Retrieve（in/crank）	Max Drag（lb）	Mono line cap. (lb-yd)	Fluoro line cap. (lb-yd)	Braided line cap. (lb-yd)	Handle Arm（in）	Spool diameter (in)	Spool stroke (in)	Bearing (Ball/Roller)
4000HG	2020	Saltwater OK	12.7	5.7	36.6	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.36	2.05	0.75	12/1
4000XG	2020	Saltwater OK	12.7	6.2	39.8	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.36	2.05	0.75	12/1
5000HG	2020	Saltwater OK	15	5.7	38.2	28.9	16-220, 20-165, 24-145	-	40-385, 55-265, 60-190	2.56	2.13	0.75	13/1
5000XG	2020	Saltwater OK	15	6.2	41.3	28.9	16-220, 20-165, 24-145	-	40-385, 55-265, 60-190	2.56	2.13	0.75	13/1
6000PG	2020	Saltwater OK	15.2	4.6	32.7	28.9	16-265, 20-210, 22-180	-	40-485, 55-330, 60-230	2.56	2.26	0.75	13/1
6000HG	2020	Saltwater OK	15.2	5.7	40.6	28.9	16-265, 20-210, 22-180	-	40-485, 55-330, 60-230	2.56	2.26	0.75	13/1
6000XG	2020	Saltwater OK	15.2	6.2	44.1	28.9	16-265, 20-210, 22-180	-	40-485, 55-330, 60-230	2.56	2.26	0.75	13/1
8000HG	2019	Saltwater OK	22.3	5.6	42.1	55.6	For braided line only	For braided line only	55-450, 60-330, 80-275	2.95	2.4	0.87	13/1
8000PG	2019	Saltwater OK	22.3	4.9	37	55.6	For braided line only	For braided line only	55-450, 60-330, 80-275	2.95	2.4	0.87	13/1
10000PG	2019	Saltwater OK	23.9	4.9	40.2	55.6	22-330, 28-230, 35-180	-	60-440, 80-330, 90-275	2.95	2.6	0.87	13/1
10000HG	2022	Saltwater OK	23.9	5.6	45.7	55.6	22-330, 28-230, 35-180	-	60-440, 80-330, 90-275	2.95	2.6	0.87	13/1
14000PG	2019	Saltwater OK	24.1	4.9	41.7	55.6	35-215, 40-170, 45-155	-	90-330, 100-220, 130-180	2.95	2.7	0.87	13/1
14000XG	2019	Saltwater OK	24.1	6.2	52.8	55.6	35-215, 40-170, 45-155	-	90-330, 100-220, 130-180	3.15	2.7	0.87	13/1
18000HG	2020	Saltwater OK	31.3	5.7	50.8	62.2	35-340, 40-265, 45-220	-	80-550, 90-440, 100-330	3.35	2.83	1.1	13/1
20000PG	2020	Saltwater OK	31.6	4.4	40.9	62.2	35-340, 40-265, 45-220	-	80-550, 90-440, 100-330	3.35	2.97	1.1	13/1
30000	2020	Saltwater OK	34.8	4.4	51.6	55.6	45-440, 55-330	-	100-660, 130-520	3.35	3.74	1.1	13/1
