Shimano 2020 BB-X HyperForce

Tabla de especificaciones Shimano 2020 BB-X Hyperforce

Modelo	Año	Salada o Dulce	Peso（g）	Relación de engranajes	Recuperación（cm/vuelta）	Freno máx. (kg)	Freno máx. (kg)	Capacidad de línea mono. (lb-m)	Capacidad de línea trenzada. (lb-m)	Brazo de manivela（mm）	Diámetro del carrete (mm)	Carrera del carrete (mm)	Rodamientos (Bolas Rodillos)

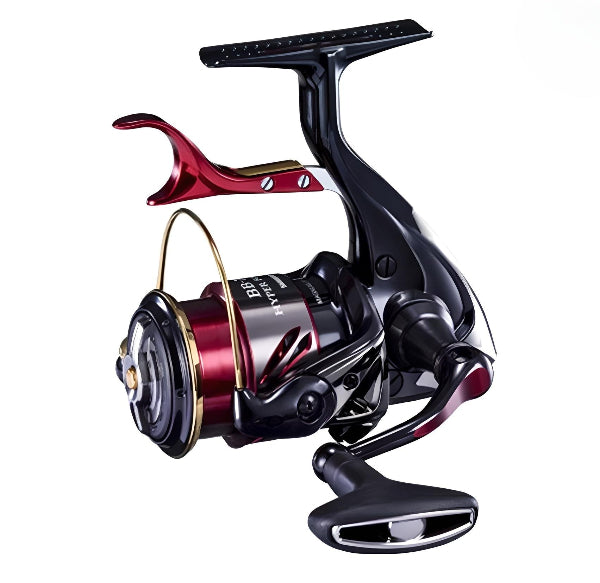

PE0815DXXG	2020	Agua salada OK	190	7	95	3.5	5	5-110, 6-95, 8-70	12-200, 16-150, 20-110	45	43	12	8/0

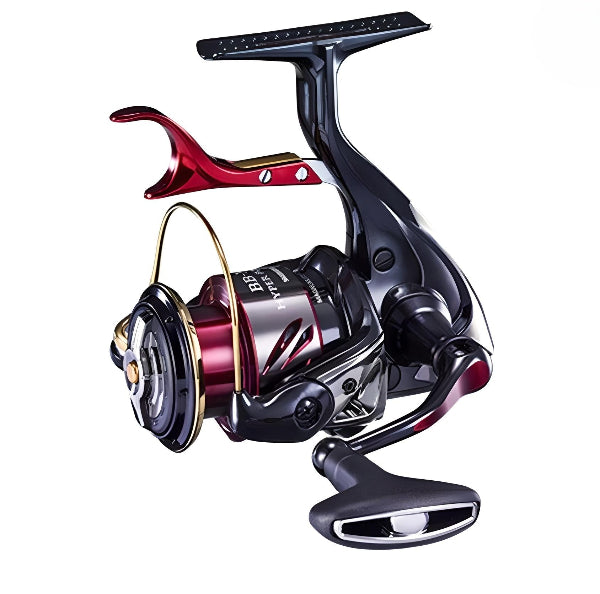

1700DXG	2020	Agua salada OK	185	6.6	89	3.5	5	6-170, 7-150, 8-125	16-330, 20-260, 24-190	45	43	12	8/0

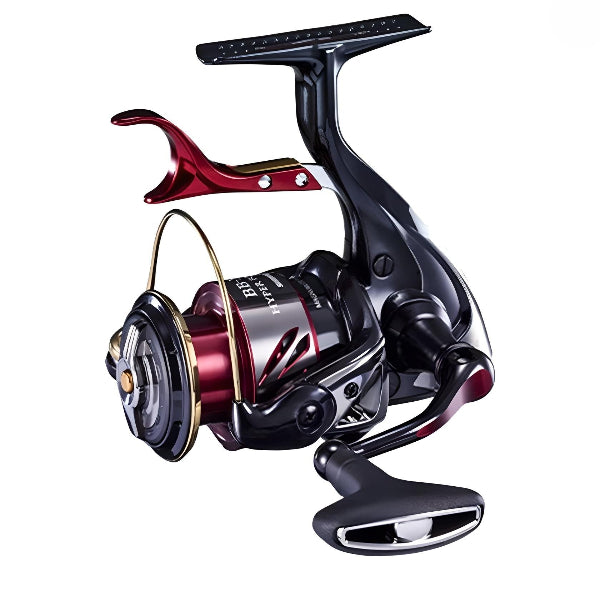

C2000DXG	2020	Agua salada OK	185	6.6	89	3.5	5	7-165, 8-150, 10-125	20-300, 24-200, 30-140	45	43	12	8/0

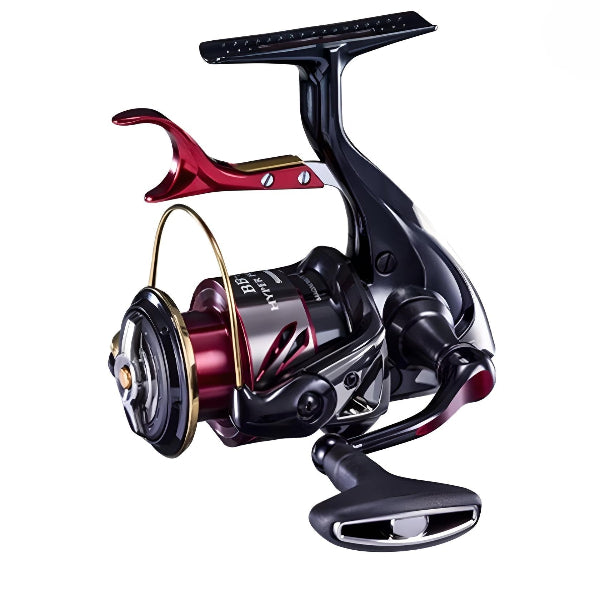

C2000DXXG	2020	Agua salada OK	185	7	95	3.5	5	7-165, 8-150, 10-125	20-300, 24-200, 30-140	45	43	12	8/0

Especificaciones en notación de libras-yardas

Modelo	Año	Salada o Dulce	Peso（oz）	Relación de engranajes	Recuperación（in/vuelta）	Freno máx. (lb)	Freno máx. (lb)	Capacidad de línea mono. (lb-yd)	Capacidad de línea trenzada. (lb-yd)	Brazo de manivela（in）	Diámetro del carrete (in)	Carrera del carrete (in)	Rodamientos (Bolas Rodillos)
PE0815DXXG	2020	Agua salada OK	6.8	7	37.4	7.8	11.1	5-120, 6-105, 8-80	12-220, 16-165, 20-120	17.7	16.9	4.7	8/0
1700DXG	2020	Agua salada OK	6.6	6.6	35	7.8	11.1	6-190, 7-165, 8-140	16-365, 20-290, 24-210	17.7	16.9	4.7	8/0
C2000DXG	2020	Agua salada OK	6.6	6.6	35	7.8	11.1	7-180, 8-165, 10-140	20-330, 24-220, 30-155	17.7	16.9	4.7	8/0
C2000DXXG	2020	Agua salada OK	6.6	7	37.4	7.8	11.1	7-180, 8-165, 10-140	20-330, 24-220, 30-155	17.7	16.9	4.7	8/0

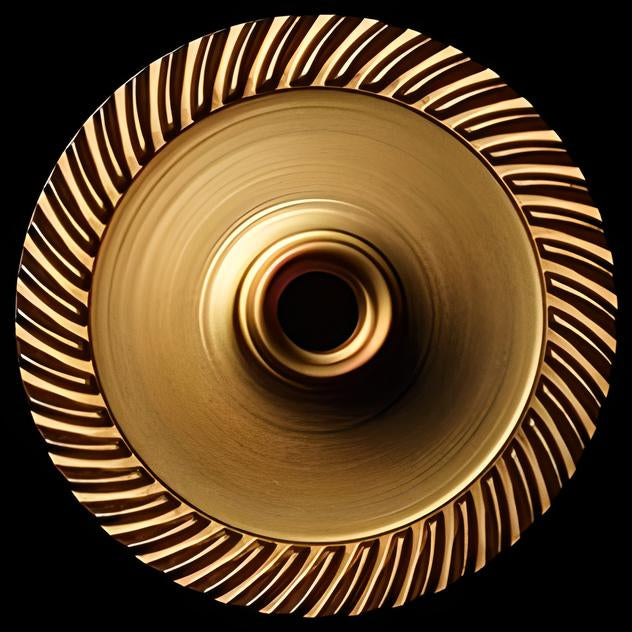

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

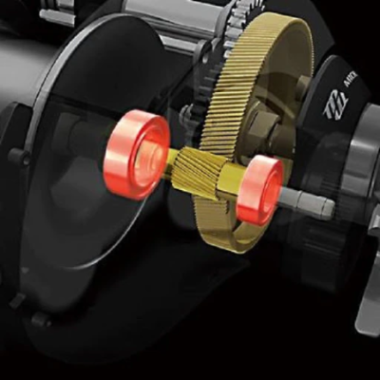

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

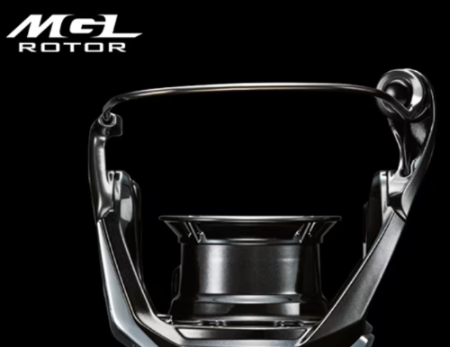

Magnumlite ROTOR

The Magnumlite Rotor uses CI4+ material for a lightweight design. While maintaining sufficient rigidity, the rotor has been successfully thinned to reduce weight. This reduction in weight decreases rotational inertia, minimizing rotational wobble and inconsistencies. It enables quick start-up with minimal effort. Additionally, it improves sensitivity and reduces the overall weight of the reel.

X-PROTECT

X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.

For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.

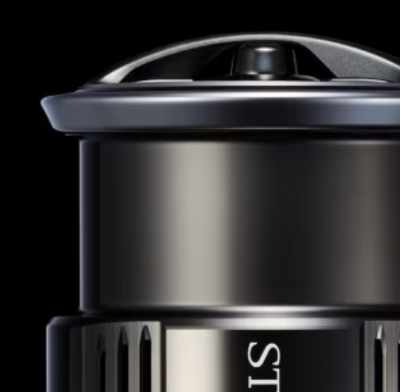

AR-C SPOOL

The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.

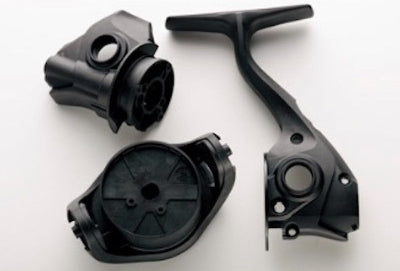

Shimano collection with CI4+ technology feature illustration

CI4+

CI4+ is an advanced material used in Shimano reels. It is a reinforced carbon fiber composite that is lighter and stronger than conventional materials, providing increased rigidity and reducing weight, which enhances the overall performance and sensitivity of the reel.

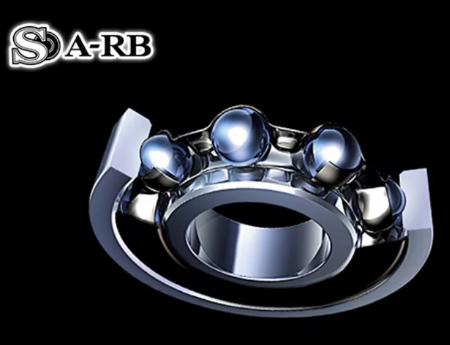

SA-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.

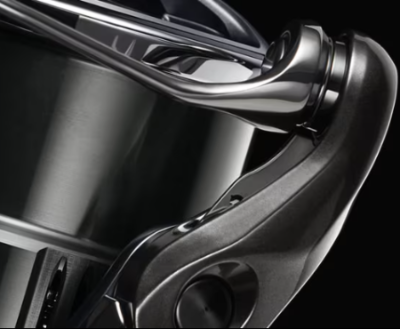

ONE-PIECE BAIL

The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.
