Relación de engranajes: 7.8 Fuerza máxima de arrastre: 5 kg Peso: 230 g Diámetro/ancho del carrete: 37 mm/19 mm Capacidad de línea (Fluoro): 12 lb-130 m, 14 lb-95 m, 16 lb-85 m Capacidad de línea (PE): #1.0-365 m, #1.5-255 m, #2.0-180 m Longitud de bobinado: 91 cm/por vuelta de manivela Longitud de la manivela: 45 mm Cantidad de rodamientos BB/rodillos: 11/1 Control sin perder ni el más mínimo cambio de rotación. Excepcional rendimiento de frenado gracias a la innovación tecnológica. El NUEVO 4x8 DC EXSENCE TUNE renace con el avance de la tecnología. Ahora es posible controlar el freno con mayor precisión que nunca. Además, el efecto sinérgico con MGL Spool 3, Silent Tune y S3D Spool ha mejorado drásticamente el rendimiento de lanzamiento. Especialmente para los problemas inmediatamente después del lanzamiento, que son comunes al usar una línea PE, la posibilidad de cortes altos debido al control instantáneo del freno se reduce en gran medida. Además, la fuerza máxima de arrastre y la cantidad de línea bobinada han aumentado, lo que lo hace más versátil. Ha nacido un carrete de cebo con un potencial oculto que a veces puede enfrentarse a peces depredadores.

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

MICRO MODULE GEAR

The gear teeth surfaces in the MICRO MODULE GEAR are finer and mesh more closely together than traditional gears, resulting in minimal power loss and a smooth, powerful winding experience. Additionally, the increased number of meshing teeth provides greater strength compared to conventional gears. This unique Shimano gear system achieves a balance of smoothness and durability.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

MGL SPOOL III

The third-generation Magnumlite Spool, MGL SPOOL III, represents a significant evolution from its predecessors. This spool has been further thinned to reduce inertia by 15% compared to MGL SPOOL II, without compromising durability. It offers enhanced long-casting performance, a swift and smooth start, and reduced trouble during casts. The spool's design allows for low-trajectory casts into tight spots with ease.

SILENT TUNE

In baitcasting reels, high spool rotation can cause vibrations and noise. SILENT TUNE reduces these by applying light pressure to the spool bearings with springs, improving the reel's quietness during casts and enhancing spool rotation startup.

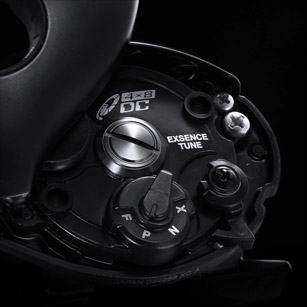

4X8DC EXSENCE TUNE

The 4X8DC EXSENCE TUNE is an advanced digital control braking system specifically designed for trouble-free long casting of sea bass lures using PE line. Leveraging cutting-edge technology, the system processes an unprecedented amount of information via its CPU to precisely control braking force, significantly enhancing casting performance. It delicately detects deceleration in spool rotation caused by wind and other air resistance factors, effectively preventing sudden backlash. The system offers four modes—XP (PE with tailwind), P (PE), N (Nylon), and F (Fluorocarbon)—each with eight levels of fine-tuned brake adjustment.

EXCITING DRAG SOUND

EXCITING DRAG SOUND is a feature that produces a sound when the line is pulled out from the spool by a fish. Unlike traditional baitcasting reels, which typically do not emit a drag sound, this feature enhances the angler's experience by stimulating their senses, making the fight with the fish even more enjoyable.

S3D SPOOL

The S3D SPOOL features an entirely redesigned cutting method, significantly enhancing the spool's precision. As a result, this design improves the smoothness and reduces vibrations during casting, leading to a quieter and more stable performance.

SA-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.

SUPER FREE SPOOL

SUPER FREE SPOOL is a system where the spool shaft is supported by only two bearings when the reel's clutch is disengaged. This design minimizes spool wobble and eliminates rotational resistance, allowing for exceptionally smooth and light spool free performance.

Tabla de especificaciones del Shimano 2022 Exsence DC

Línea Shimano 2022 Exsence DC

Modelo	Año	Agua salada o dulce	Peso (g)	Relación de engranajes	Recuperación (cm/vuelta)	Freno máx. (kg)	Cap. línea fluorocarbono (lb-m)	Cap. línea trenzada (lb-m)	Brazo de manivela (mm)	Diámetro del carrete (mm)	Ancho del carrete (mm)	Rodamientos (bolas/rodillos)
XG RIGHT	2022	Apto para agua salada	230	7.8	91	5	12-130, 14-95, 16-85	20-365, 30-255, 40-180	45	37	19	11/1
XG LEFT	2022	Apto para agua salada	230	7.8	91	5	12-130, 14-95, 16-85	20-365, 30-255, 40-180	45	37	19	11/1

Especificaciones en notación de libras-yardas

Modelo	Año	Agua salada o dulce	Peso (oz)	Relación de engranajes	Recuperación (pulgadas/vuelta)	Freno máx. (lb)	Cap. línea fluorocarbono (lb-yd)	Cap. línea trenzada (lb-yd)	Brazo de manivela (pulgadas)	Diámetro del carrete (pulgadas)	Ancho del carrete (pulgadas)	Rodamientos (bolas/rodillos)
XG RIGHT	2022	Apto para agua salada	8.2	7.8	35.8	11.1	12-145, 14-105, 16-95	20-400, 30-280, 40-200	1.77	1.46	0.75	11/1
XG LEFT	2022	Apto para agua salada	8.2	7.8	35.8	11.1	12-145, 14-105, 16-95	20-400, 30-280, 40-200	1.77	1.46	0.75	11/1

Shimano 2022 EXSENCE DC XG DERECHA

Description of "Shimano 2022 EXSENCE DC XG DERECHA"

Technology Features of Shimano 2022 EXSENCE DC XG DERECHA
