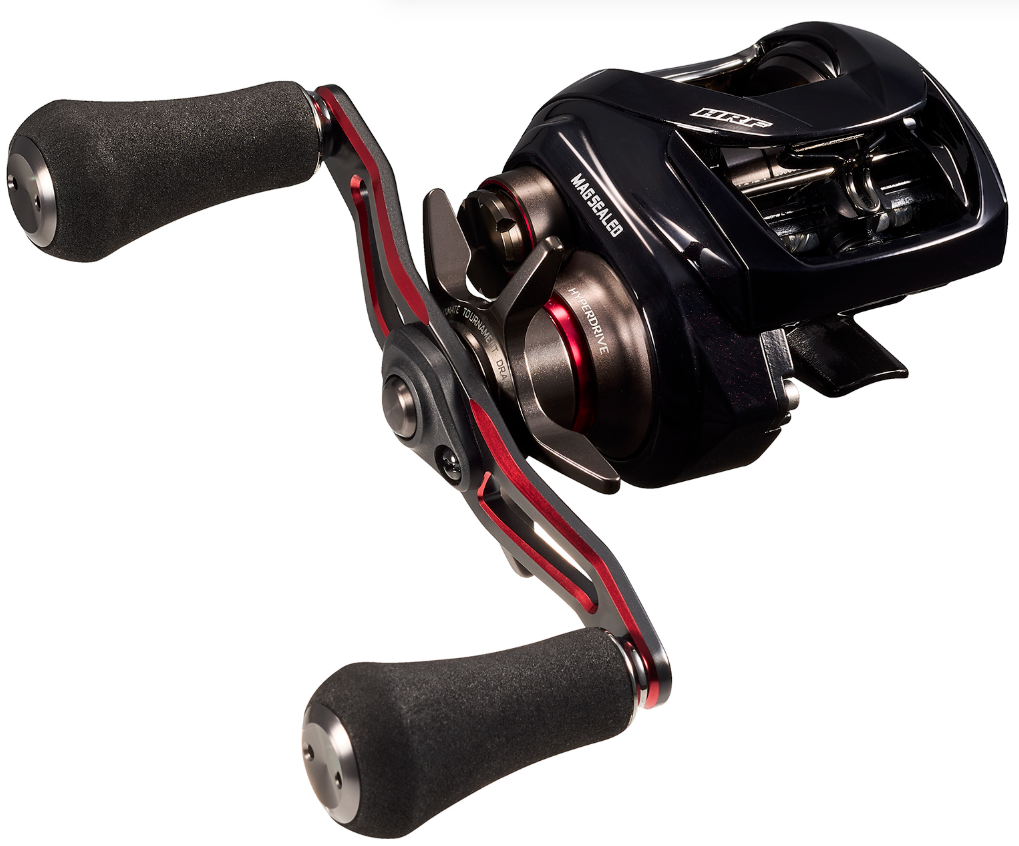

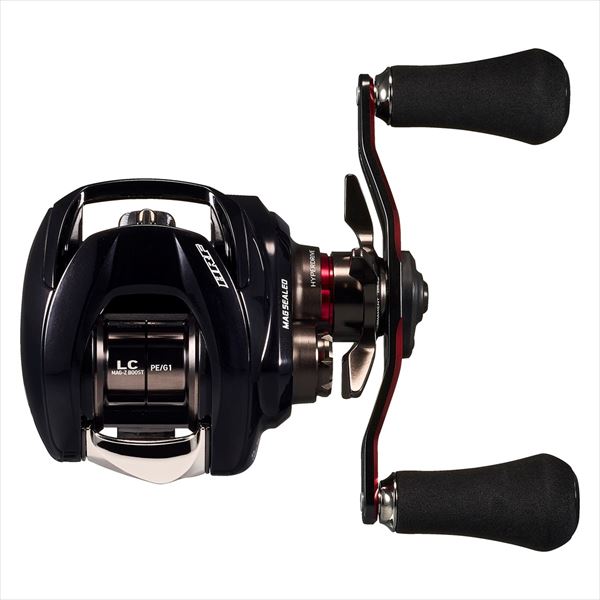

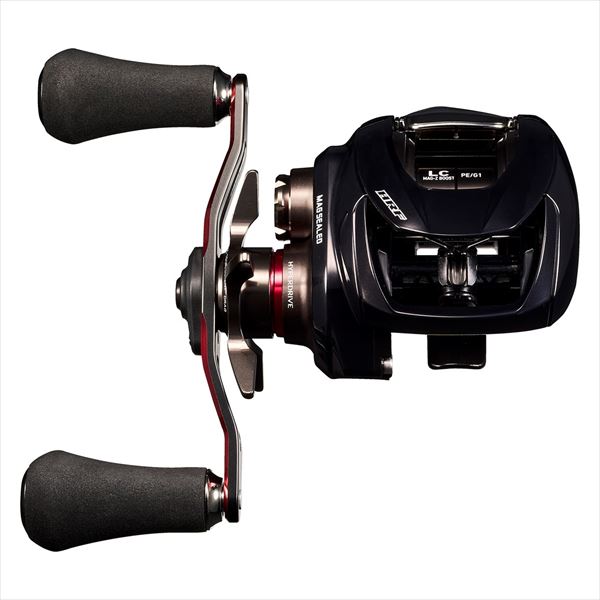

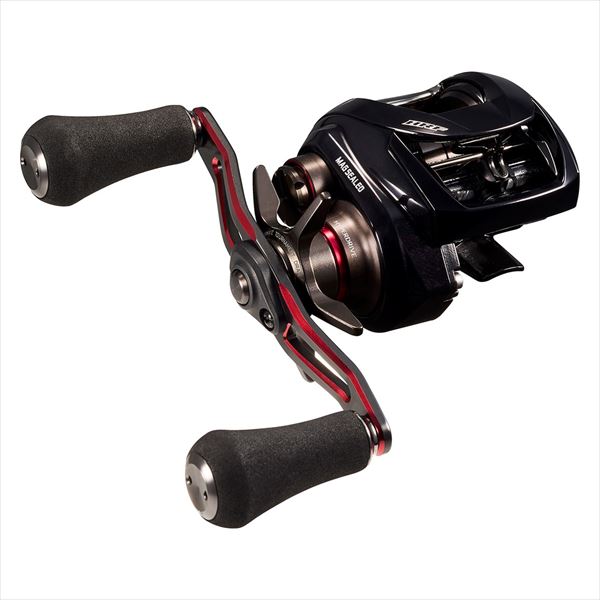

Technology Features of DAIWA 2025 HRF TW 100XH PE SPECIAL
HYPERDRIVE DESIGN
In 2021, DAIWA’s new baitcasting reels underwent a significant evolution, marking a new era of innovation. The term that embodies this transformation is "HYPERDRIVE DESIGN." This new design philosophy aims to elevate all basic performance levels, ensuring they remain consistently high over time. At its core is the HYPERDRIVE DIGIGEAR, which includes both the drive and pinion gears. Supporting this are three additional key components: HYPER DOUBLE SUPPORT (pinion gear support system), HYPER ARMED HOUSING (reel body), and HYPER TOUGH CLUTCH. These four critical elements, refined with DAIWA's cutting-edge technology and new innovations, collectively deliver exceptional drive performance. A model featuring HYPERDRIVE DIGIGEAR and enhanced rotational performance falls under the HYPERDRIVE DESIGN category.
HYPER DOUBLE SUPPORT
The HYPER DOUBLE SUPPORT system is a pinion gear support mechanism that enhances smoothness, power, and lightness in the reel’s operation. By precisely supporting both ends of the pinion gear with two ball bearings, it ensures that the power input from the handle is transmitted without loss, allowing for powerful and light winding even under load. The pinion gear, a crucial component on par with the drive gear in baitcasting reels, has also undergone significant evolution. Like the drive gear, the pinion gear’s tooth surface has been updated with new specifications, and the use of special materials has greatly reduced issues such as corrosion, seizing, and damage, thereby significantly contributing to the gear's durability.
HYPERDRIVE DIGIGEAR
HYPERDRIVE DIGIGEAR is a newly designed gear system for baitcasting and conventional reels, engineered to maintain strong and smooth rotation over time. DAIWA’s unique technology avoids reducing the module size of the gear teeth, which is crucial for durability. Instead, it enhances meshing efficiency by shaping the gear teeth with a bullet-shaped silhouette that optimizes the pressure angle. This design ensures the initial smoothness of the reel lasts longer, achieving an exceptional balance between smooth rotation and rotational durability. Compared to previous DAIWA gears, the noise felt during handle rotation, such as roughness, has been significantly reduced by over 50% in the HYPERDRIVE DIGIGEAR.
HYPER ARMED HOUSING (Full Aluminum)
The HYPER ARMED HOUSING is a body system designed to provide high rigidity and precision, supporting the internal structure of the reel to deliver smooth winding and power. A key requirement is the use of metal materials for the frame, which, when combined with side plates and set plates, ensures that the reel's fundamental performance is maintained over an extended period.
HYPER TOUGH CLUTCH
The HYPER TOUGH CLUTCH system delivers precise on/off performance, maintaining its reliability through thousands of cycles. It is designed to be highly durable, even in saltwater environments with high salt concentrations. Featuring an advanced insulation structure, this system has achieved a 99% reduction in sticking-related repairs compared to DAIWA's previous clutch systems, showcasing its exceptional performance in harsh conditions.
MAGSEALED BALL BEARING
Following the revolutionary waterproof and durability technologies applied to the reel body and line roller, DAIWA has extended these advancements to a crucial small component that significantly impacts reel rotation: the ball bearing. Through proprietary technology, DAIWA has become the first in the world to successfully apply MAGSEALED technology directly to the ball bearing itself. By creating a barrier of magnetic fluid, the intrusion of water and foreign particles into the ball bearing is prevented, maintaining its original smooth and light performance. This innovation eliminates the need for traditional seals or packing, significantly reducing rust, salt damage, and unwanted noise. As a result, the waterproofing and durability of the reel are dramatically enhanced, allowing it to retain its initial performance for a longer period.
TWS (T-Wing System)
Traditional level wind systems were designed, as their name suggests, to lay the line evenly across the spool. However, during casting, they often created resistance, leading manufacturers to experiment with different internal diameters and shapes to enhance line release. But these efforts had their limits. Excessive enlargement of the level wind compromised its original function, restricting advancements to minimal adjustments, such as refining the internal diameter. Some solutions included increasing the distance between the spool and the level wind or narrowing the spool width to prevent the line from hitting the level wind at sharp angles. While partially effective, these methods were essentially temporary fixes that led to side effects such as elongating the reel body, reducing palming comfort, or decreasing line capacity.
DAIWA's TWS (T-Wing System) addresses these contradictions not with compromise but with innovation, achieving both precise line winding and an expanded resistance-free range during line release. By significantly widening the resistance-free zone where the line makes contact with the level wind, particularly right after it leaves the spool, TWS has dramatically enhanced the long-casting performance of DAIWA baitcasting reels. Simultaneously, the smooth line flow facilitated by TWS has proven effective in preventing backlashes.
MAG-Z BOOST
MAG-Z BOOST is a distance-focused setting that maximizes the long-casting performance of MAGFORCE-Z. Due to its nature of activating the inductor rotor through centrifugal force, MAGFORCE-Z is less suitable for lightweight lures but ideal for long casts with medium to heavy lures, where every bit of input translates to greater casting distance. By adding the BOOST spool's characteristics, the system avoids the backlash zone and then instantly retracts the two-stage inductor rotor to a single stage. This allows for an extended trajectory from mid-cast to just before landing, achieving maximum casting distance.
ZERO ADJUST
Since 2016, DAIWA has referred to the mechanical brake as the Zero Adjuster. This change was prompted by the evolution of DAIWA's baitcasting reels, where the primary brake system, MAGFORCE, reached its pinnacle, rendering the secondary mechanical brake unnecessary for braking purposes. Instead of functioning as a brake, the mechanical brake now serves solely to set the spool shaft's lateral movement within an optimal range (less than 0.2mm). By eliminating the complexity and ambiguity of using a secondary brake, the ZERO ADJUST system ensures complete spool control with just the main brake.
ZERO SHAFT
Typically, spools are supported by a shaft integrated with the spool itself, but with ZERO SHAFT, the spool is supported solely by ball bearings. By eliminating the shaft, unnecessary resistance is removed, resulting in optimal spool rotation. This feature prioritizes casting performance, making it a crucial element of the stress free casting. Previously known as the Speed Shaft, this spool mechanism was renamed "ZERO SHAFT" in 2021.
UTD (Baitcasting)
By re-evaluating the washers and grease from the ground up, DAIWA has refined the drag system to reduce initial resistance when a fish is hooked, ensuring the line starts to slip smoothly and consistently. This advanced drag system, which surpasses the previously established standards set by DAIWA, is designated as "UTD" (Ultimate Tournament Drag).
G1 DURALUMIN SPOOL
G1 Duralumin is an advanced aluminum alloy that boasts twice the strength of magnesium and is 1.3 times stronger than super-duralumin. Known for being extremely lightweight, this material is also highly rigid, making it the top choice among lightweight alloys used in aircraft structures and precision instruments. To achieve an exceptionally lightweight feel without compromising strength, the winding surface of the spool has been thinned without any blanking in material, preserving its full strength. The result is unmatched rotational responsiveness due to its lightness and highly precise rotation thanks to its superior rigidity.
Tabla de especificaciones del DAIWA 2025 HRF TW PE SPECIAL
Gama DAIWA 2025 HRF TW PE SPECIAL
| Modelo | Manivela | Año | Agua Salada o Dulce | Peso（g） | Relación de engranajes | Recuperación（cm/vuelta） | Freno Máx.（kg） | Capacidad línea trenzada（lb-m） | Diámetro bobina（mm） | Brazo de manivela（mm） | Rodamientos（Bolas/Rodillo） | Código JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

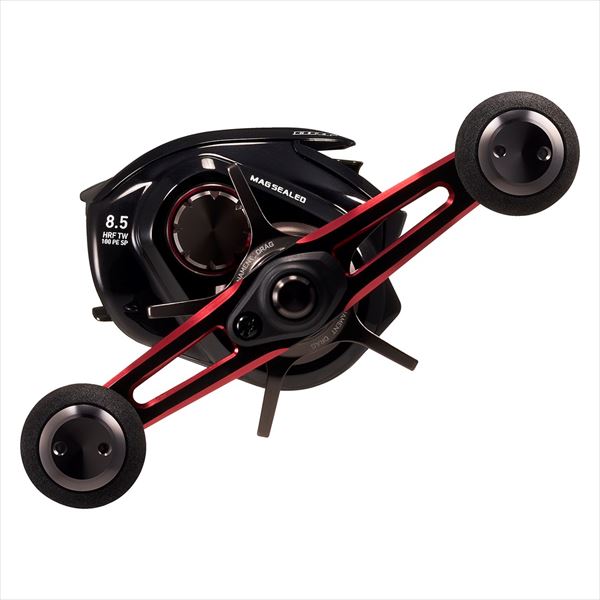

| 100XH | Derecha | 2025 | Apto para agua salada | 210 | 8.5 | 90 | 5 | 20-200, 30-150 | 34 | 100 | 10/1 | 4550133500213 |
| 100XHL | Izquierda | 2025 | Apto para agua salada | 210 | 8.5 | 90 | 5 | 20-200, 30-150 | 34 | 100 | 10/1 | 4550133500220 |
Especificaciones en sistema de unidades anglosajón (libras-yardas)
| Modelo | Manivela | Año | Agua Salada o Dulce | Peso（oz） | Relación de engranajes | Recuperación（in/vuelta） | Freno Máx.（lb） | Capacidad línea trenzada（lb-yd） | Diámetro bobina（in） | Brazo de manivela（in） | Rodamientos（Bolas/Rodillo） | Código JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100XH | Derecha | 2025 | Apto para agua salada | 7.5 | 8.5 | 35.4 | 11.1 | 20-220, 30-165 | 1.34 | 3.94 | 10/1 | 4550133500213 |
| 100XHL | Izquierda | 2025 | Apto para agua salada | 7.5 | 8.5 | 35.4 | 11.1 | 20-220, 30-165 | 1.34 | 3.94 | 10/1 | 4550133500220 |
