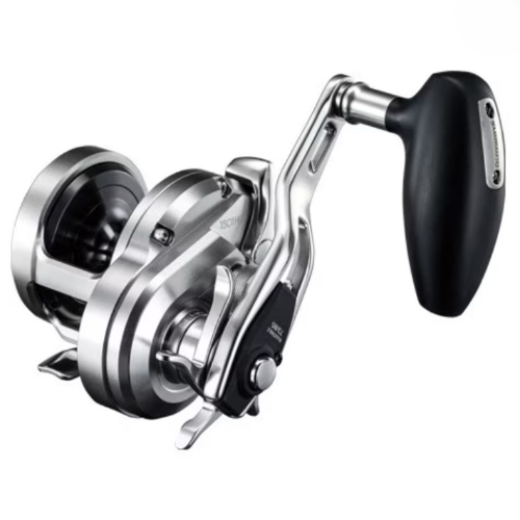

Description of "Shimano 2017 OCEA JIGGER 1501HG IZQUIERDO"
Relación de transmisión: 6.4 Freno máximo: 7kg Peso: 405g Diámetro/ancho de la bobina: 49mm/25mm Capacidad de línea PE: #2-500m, #2.5-400m, #3-320m Longitud de bobinado: 97cm/por giro de manivela Longitud de la manivela: 73mm/85mm Cantidad de rodamientos BB/Rodillo: S A-RB/Rodillo 8/1 "Ocea Jigger" siempre ha seguido el camino real como pionero de los carretes de jigging. Lo que buscamos en el proceso de evolución fue la esencia del carrete. Cuerpo robusto, bobinado fuerte y suave, y resistencia que puede soportar el abuso. La única respuesta de Jigger es ser una herramienta confiable en todo momento. El Ocea Jigger, que es sinónimo de carretes de jigging, ahora está disponible con una sensación de rotación aún mejor. Equipado con un nuevo mecanismo, Infinity Drive, que elimina la resistencia rotacional hasta en un 60%, logrando un bobinado ligero y potente. En términos de durabilidad, cuenta con un cuerpo HAGANE de alta rigidez y un alto rendimiento a prueba de agua.
Technology Features of Shimano 2017 OCEA JIGGER 1501HG IZQUIERDO
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
MICRO MODULE GEAR
The gear teeth surfaces in the MICRO MODULE GEAR are finer and mesh more closely together than traditional gears, resulting in minimal power loss and a smooth, powerful winding experience. Additionally, the increased number of meshing teeth provides greater strength compared to conventional gears. This unique Shimano gear system achieves a balance of smoothness and durability.
INFINITY DRIVE
INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.
X-PROTECT
X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.
For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.
S COMPACT BODY
The S COMPACT BODY design reduces the diameter of the reel on the palming side compared to the handle side, creating a more comfortable grip that feels as if the reel is one size smaller. This enhances palming comfort and control.
EXCITING DRAG SOUND
EXCITING DRAG SOUND is a feature that produces a sound when the line is pulled out from the spool by a fish. Unlike traditional baitcasting reels, which typically do not emit a drag sound, this feature enhances the angler's experience by stimulating their senses, making the fight with the fish even more enjoyable.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
Tabla de especificaciones del Shimano OCEA JIGGER
Línea Shimano OCEA JIGGER
| Línea | Año | Agua salada o dulce | Peso (g) | Relación de engranajes | Recuperación (cm/vuelta) | Freno máx. (kg) | Capacidad de línea mono. (lb-m) | Capacidad de línea trenzada (lb-m) | Brazo de manivela (mm) | Diámetro del carrete (mm) | Ancho del carrete (mm) | Rodamiento (Bolas/Rodillos) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000HG DERECHO | 2017 | Agua salada OK | 405 | 6.4 | 97 | 7 | Solo para línea trenzada | 40-300, 50-230, 55-200 | 73/85 | 49 | 21 | 8/1 |
| 1500PG DERECHO | 2017 | Agua salada OK | 405 | 5.1 | 78 | 7.5 | Solo para línea trenzada | 40-500, 50-400, 55-320 | 73/85 | 49 | 25 | 8/1 |
| 1501PG IZQUIERDO | 2017 | Agua salada OK | 405 | 5.1 | 78 | 7.5 | Solo para línea trenzada | 40-500, 50-400, 55-320 | 73/85 | 49 | 25 | 8/1 |
| 1500HG DERECHO | 2017 | Agua salada OK | 405 | 6.4 | 97 | 7 | Solo para línea trenzada | 40-500, 50-400, 55-320 | 73/85 | 49 | 25 | 8/1 |
| 1501HG IZQUIERDO | 2017 | Agua salada OK | 405 | 6.4 | 97 | 7 | Solo para línea trenzada | 40-500, 50-400, 55-320 | 73/85 | 49 | 25 | 8/1 |
| 1500XG DERECHO | 2021 | Agua salada OK | 410 | 7.3 | 112 | 6 | Solo para línea trenzada | 40-500, 50-400, 55-320 | 73/85 | 49 | 25 | 8/1 |
| 1501XG IZQUIERDO | 2021 | Agua salada OK | 410 | 7.3 | 112 | 6 | Solo para línea trenzada | 40-500, 50-400, 55-320 | 73/85 | 49 | 25 | 8/1 |
| 2000NRPG DERECHO | 2017 | Agua salada OK | 595 | 5.1 | 96 | 10 | Solo para línea trenzada | 55-400, 60-300, 80-220 | 80/92 | 60 | 25 | 8/1 |
| 2001NRPG IZQUIERDO | 2017 | Agua salada OK | 595 | 5.1 | 96 | 10 | Solo para línea trenzada | 55-400, 60-300, 80-220 | 80/92 | 60 | 25 | 8/1 |
| 2000NRMG DERECHO | 2021 | Agua salada OK | 580 | 5.7 | 107 | 10 | Solo para línea trenzada | 55-400, 60-300, 80-220 | 80/92 | 60 | 25 | 8/1 |
| 2001NRMG IZQUIERDO | 2021 | Agua salada OK | 580 | 5.7 | 107 | 10 | Solo para línea trenzada | 55-400, 60-300, 80-220 | 80/92 | 60 | 25 | 8/1 |
| 2000NRHG DERECHO | 2017 | Agua salada OK | 595 | 6.2 | 117 | 10 | Solo para línea trenzada | 55-400, 60-300, 80-220 | 80/92 | 60 | 25 | 8/1 |
| 2001NRHG IZQUIERDO | 2017 | Agua salada OK | 595 | 6.2 | 117 | 10 | Solo para línea trenzada | 55-400, 60-300, 80-220 | 80/92 | 60 | 25 | 8/1 |
| 2000NRXG DERECHO | 2021 | Agua salada OK | 580 | 7 | 132 | 10 | Solo para línea trenzada | 55-400, 60-300, 80-220 | 80/92 | 60 | 25 | 8/1 |
| 2001NRXG IZQUIERDO | 2021 | Agua salada OK | 580 | 7 | 132 | 10 | Solo para línea trenzada | 55-400, 60-300, 80-220 | 80/92 | 60 | 25 | 8/1 |
Especificaciones en Notación de Libras-Yardas
| Línea | Año | Agua salada o dulce | Peso (oz) | Relación de engranajes | Recuperación (pulgadas/vuelta) | Freno máx. (lb) | Capacidad de línea mono. (lb-yd) | Capacidad de línea trenzada (lb-yd) | Brazo de manivela (pulgadas) | Diámetro del carrete (pulgadas) | Ancho del carrete (pulgadas) | Rodamiento (Bolas/Rodillos) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000HG DERECHO | 2017 | Agua salada OK | 14.5 | 6.4 | 38.2 | 15.6 | Solo para línea trenzada | 40-330, 50-255, 55-220 | 2.87/3.35 | 1.93 | 0.83 | 8/1 |
| 1500PG DERECHO | 2017 | Agua salada OK | 14.5 | 5.1 | 30.7 | 16.7 | Solo para línea trenzada | 40-550, 50-440, 55-350 | 2.87/3.35 | 1.93 | 0.98 | 8/1 |
| 1501PG IZQUIERDO | 2017 | Agua salada OK | 14.5 | 5.1 | 30.7 | 16.7 | Solo para línea trenzada | 40-550, 50-440, 55-350 | 2.87/3.35 | 1.93 | 0.98 | 8/1 |
| 1500HG DERECHO | 2017 | Agua salada OK | 14.5 | 6.4 | 38.2 | 15.6 | Solo para línea trenzada | 40-550, 50-440, 55-350 | 2.87/3.35 | 1.93 | 0.98 | 8/1 |
| 1501HG IZQUIERDO | 2017 | Agua salada OK | 14.5 | 6.4 | 38.2 | 15.6 | Solo para línea trenzada | 40-550, 50-440, 55-350 | 2.87/3.35 | 1.93 | 0.98 | 8/1 |
| 1500XG DERECHO | 2021 | Agua salada OK | 14.6 | 7.3 | 44.1 | 13.3 | Solo para línea trenzada | 40-550, 50-440, 55-350 | 2.87/3.35 | 1.93 | 0.98 | 8/1 |
| 1501XG IZQUIERDO | 2021 | Agua salada OK | 14.6 | 7.3 | 44.1 | 13.3 | Solo para línea trenzada | 40-550, 50-440, 55-350 | 2.87/3.35 | 1.93 | 0.98 | 8/1 |
| 2000NRPG DERECHO | 2017 | Agua salada OK | 21.3 | 5.1 | 37.8 | 22.2 | Solo para línea trenzada | 55-440, 60-330, 80-240 | 3.15/3.62 | 2.36 | 0.98 | 8/1 |
| 2001NRPG IZQUIERDO | 2017 | Agua salada OK | 21.3 | 5.1 | 37.8 | 22.2 | Solo para línea trenzada | 55-440, 60-330, 80-240 | 3.15/3.62 | 2.36 | 0.98 | 8/1 |
| 2000NRMG DERECHO | 2021 | Agua salada OK | 20.7 | 5.7 | 42.1 | 22.2 | Solo para línea trenzada | 55-440, 60-330, 80-240 | 3.15/3.62 | 2.36 | 0.98 | 8/1 |
| 2001NRMG IZQUIERDO | 2021 | Agua salada OK | 20.7 | 5.7 | 42.1 | 22.2 | Solo para línea trenzada | 55-440, 60-330, 80-240 | 3.15/3.62 | 2.36 | 0.98 | 8/1 |
| 2000NRHG DERECHO | 2017 | Agua salada OK | 21.3 | 6.2 | 46.1 | 22.2 | Solo para línea trenzada | 55-440, 60-330, 80-240 | 3.15/3.62 | 2.36 | 0.98 | 8/1 |
| 2001NRHG IZQUIERDO | 2017 | Agua salada OK | 21.3 | 6.2 | 46.1 | 22.2 | Solo para línea trenzada | 55-440, 60-330, 80-240 | 3.15/3.62 | 2.36 | 0.98 | 8/1 |
| 2000NRXG DERECHO | 2021 | Agua salada OK | 20.7 | 7 | 52 | 22.2 | Solo para línea trenzada | 55-440, 60-330, 80-240 | 3.15/3.62 | 2.36 | 0.98 | 8/1 |
| 2001NRXG IZQUIERDO | 2021 | Agua salada OK | 20.7 | 7 | 52 | 22.2 | Solo para línea trenzada | 55-440, 60-330, 80-240 | 3.15/3.62 | 2.36 | 0.98 | 8/1 |
