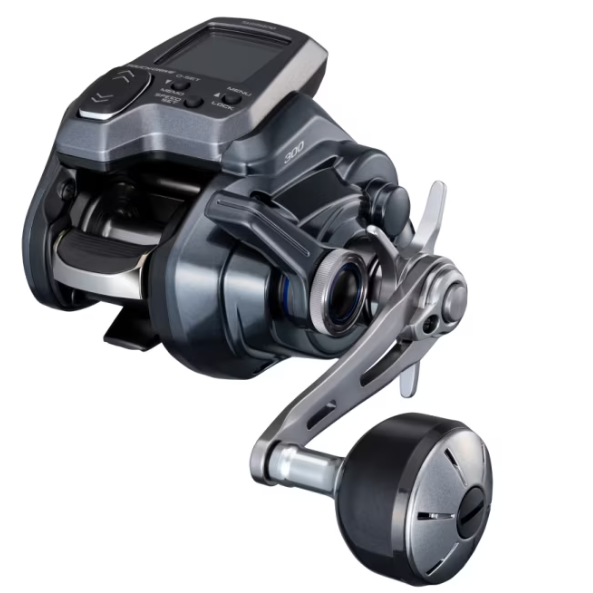

Technology Features of Shimano Force Master 300 2025
MUTEKI MOTOR
Conventional motors generally use plastic magnets, which limit their power and torque.The MUTEKI MOTOR is a high-speed, high-torque brush motor that utilizes powerful neodymium magnets. This design enhances both the rotational speed and torque, making it an efficient and robust motor for demanding applications.
TOUCH DRIVE SPEEDLOCK
TOUCH DRIVE SPEEDLOCK allows for instant retrieval at the desired speed (mid-speed setting) with a single touch. Just like a car accelerator, pressing the Touch Drive again will accelerate, and releasing it will decelerate, enabling you to follow the target's movements and achieve precise speed control.
FALLEVER
FALLEVER is a newly designed lever that allows for easy and precise control of fall speed, which was previously difficult to manage. By moving the lever forward or backward, you can adjust the mechanical brake to either increase or decrease the fall speed. This enables more strategic fishing, such as allowing the lure to fall quickly in mid-water and slowly near the bottom. Additionally, during casting, the brake can be applied to prevent backlash, and then smoothly released for a free fall. FALLEVER also allows for seamless operation of casting and subsequent actions with a single lever.
SPEED CLUTCH
Easily switch the clutch ON/OFF with a simple press of the clutch lever. Since clutch operation can be performed while thumb-suppressing the spool, it prevents annoying backlash. Moreover, this allows for quick clutch switching while keeping the spool pressed, ensuring that you don't miss your intended depth.
S COMPACT BODY
The S COMPACT BODY design reduces the diameter of the reel on the palming side compared to the handle side, creating a more comfortable grip that feels as if the reel is one size smaller. This enhances palming comfort and control.
FIRE MACH SYSTEM
To smoothly reverse the large-diameter spool, multiple SA-RB (Ball Bearings) are strategically placed along the main rotation axis. This design ensures high-speed drop performance with minimal resistance, comparable to the Super Free Spool used in smaller electric reels. It’s ideal for fishing with light rigs or when quick deployment to the target depth is crucial.
e-EXCITING DRAG SOUND
EXCITING DRAG SOUND is a feature that produces a sound when the line is pulled out from the spool by a fish. Unlike traditional baitcasting reels, which typically do not emit a drag sound, this feature enhances the angler's experience by stimulating their senses, making the fight with the fish even more enjoyable.The e-EXCITING DRAG SOUND is an electronic version of this.
CI4+
CI4+ is an advanced material used in Shimano reels. It is a reinforced carbon fiber composite that is lighter and stronger than conventional materials, providing increased rigidity and reducing weight, which enhances the overall performance and sensitivity of the reel.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
FINE DOT LCD
A dot matrix LCD that offers excellent visibility and ease of operation.
Tabla de especificaciones del SHIMANO 2025 Force Master 300
Línea de productos SHIMANO 2025 Force Master 300
| Modelo | Manivela | Año | Agua salada o dulce | Peso (g) | Relación de engranajes | Recuperación (cm/vuelta) | Freno máximo (kg) | Cap. línea trenzada (lb-m) | Brazo de manivela (mm) | Diámetro del carrete (mm) | Ancho del carrete (mm) | Rodamientos (Bolas/Rodillos) | Potencia de recuperación (kg) | Velocidad máx. recuperación (m/min) | Cable eléctrico (m) | Código JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 | Derecha | 2025 | Agua salada OK | 405 | 7.4 | 65 | 5 | 16-400, 20-300, 30-200, 40-150 | 65 | 28 | 21.5 | 9/2 | 3 | 215 | 2.5 | 4969363047335 |
| 300DH | Derecha | 2025 | Agua salada OK | 400 | 7.4 | 65 | 5 | 16-400, 20-300, 30-200, 40-150 | 60 | 28 | 21.5 | 9/2 | 3 | 215 | 2.5 | 4969363047342 |
| 301 | Izquierda | 2025 | Agua salada OK | 405 | 7.4 | 65 | 5 | 16-400, 20-300, 30-200, 40-150 | 65 | 28 | 21.5 | 9/2 | 3 | 215 | 2.5 | 4969363047359 |
| 301DH | Izquierda | 2025 | Agua salada OK | 400 | 7.4 | 65 | 5 | 16-400, 20-300, 30-200, 40-150 | 60 | 28 | 21.5 | 9/2 | 3 | 215 | 2.5 | 4969363047366 |
Especificaciones en notación de libras-yardas
| Modelo | Manivela | Año | Agua salada o dulce | Peso (oz) | Relación de engranajes | Recuperación (pulg/vuelta) | Freno máximo (lb) | Cap. línea trenzada (lb-yd) | Brazo de manivela (pulg) | Diámetro del carrete (pulg) | Ancho del carrete (pulg) | Rodamientos (Bolas/Rodillos) | Potencia de recuperación (lb) | Velocidad máx. recuperación (yd/min) | Cable eléctrico (pulg) | Código JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 | Derecha | 2025 | Agua salada OK | 14.5 | 7.4 | 25.6 | 11.1 | 16-440, 20-330, 30-220, 40-165 | 2.56 | 1.1 | 0.85 | 9/2 | 6.7 | 240 | 98.4 | 4969363047335 |
| 300DH | Derecha | 2025 | Agua salada OK | 14.3 | 7.4 | 25.6 | 11.1 | 16-440, 20-330, 30-220, 40-165 | 2.36 | 1.1 | 0.85 | 9/2 | 6.7 | 240 | 98.4 | 4969363047342 |
| 301 | Izquierda | 2025 | Agua salada OK | 14.5 | 7.4 | 25.6 | 11.1 | 16-440, 20-330, 30-220, 40-165 | 2.56 | 1.1 | 0.85 | 9/2 | 6.7 | 240 | 98.4 | 4969363047359 |
| 301DH | Izquierda | 2025 | Agua salada OK | 14.3 | 7.4 | 25.6 | 11.1 | 16-440, 20-330, 30-220, 40-165 | 2.36 | 1.1 | 0.85 | 9/2 | 6.7 | 240 | 98.4 | 4969363047366 |
