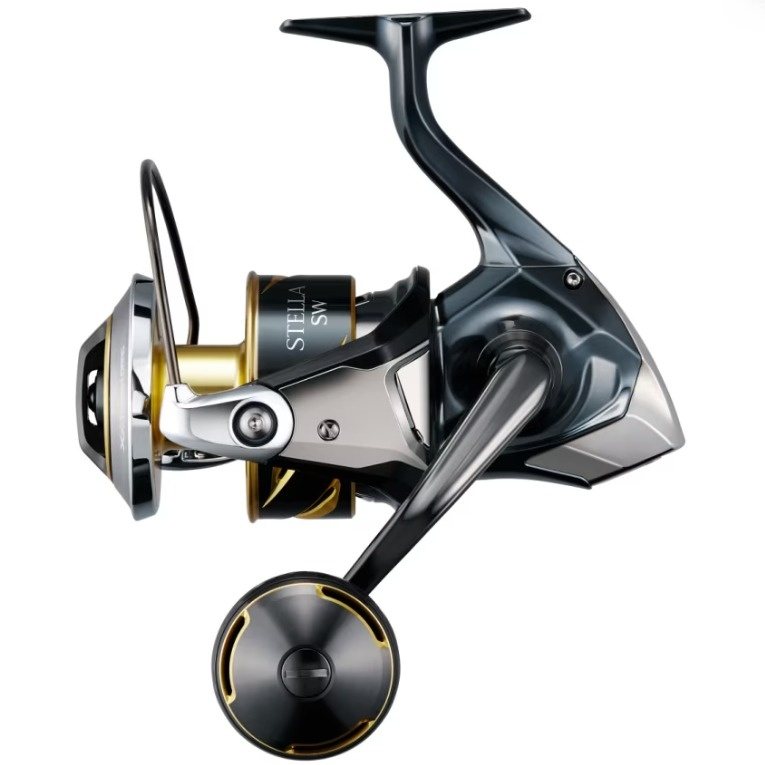

Description of "Shimano 2025 STELLA SW 10000PG"
Technology Features of Shimano 2025 STELLA SW 10000PG
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
X-SHIP
X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.
INFINITY LOOP
INFINITY LOOP is a technology that allows the spool to wind the line more precisely by slowing down the up-and-down motion of the spool. With advancements in the internal structure of the reel, the speed of the spool's vertical movement has been significantly reduced. This allows the line to be wound neatly and densely onto the spool, greatly reducing line release resistance. This results in an exceptional casting feel and smooth line delivery. Additionally, the slower vertical movement of the spool reduces oscillation-induced wobbling, decreasing unnecessary vibrations transmitted to the hand and contributing to improved sensitivity.
INFINITY XROSS
INFINITY XROSS is a technology that increases the contact area between the drive gear and pinion gear through advancements in gear tooth surface design and manufacturing technology. By distributing the load applied to the gear tooth surface over a wider area, this technology prevents the gears from sustaining concentrated damage and breaking. As a result, the durability of the gears is approximately doubled compared to traditional Shimano gears.
INFINITY DRIVE
INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.
HEATSINK DRAG
The HEATSINK DRAG is an evolution of the previous X-Tough Drag, delivering superior drag performance and durability, now with enhanced heat resistance. The "Heat Sink Panel" dissipates heat generated in the drag section to the outside of the spool, mitigating drag force reduction caused by heat. Additionally, the "Insulation Sheet" blocks heat from flowing into the spool's line-winding area, successfully reducing temperature rise in the line-winding section.
SILENT DRIVE
SILENT DRIVE involves a comprehensive redesign of the entire body and drive-related components, meticulously eliminating minute gaps, play, and vibration between parts. Areas of improvement include the drive gear, worm shaft, worm shaft pin, worm shaft gear, and slider gear, among others. This results in a new level of smooth rotational performance and a quiet, refined reeling experience.
ANTI TWIST FIN
The ANTI TWIST FIN is an elastic fin positioned close to the line roller. By preventing the line from sagging, it reduces the occurrence of the line being sucked into the lower part of the spool and the line being wound onto the spool while twisted.
X-SHIELD
Shimano's waterproof mechanisms include "Core Protect," "X-Protect," and "X-Shield." "X-Shield," used in the SW series, is a waterproof mechanism designed to prevent water ingress by sealing gaps with special seals. Strong sealing is applied at various points, including the body-lid interface and the spool-drag knob contact area, to block water entry paths. This ensures high reliability and durability in the harsh conditions of SW game fishing. While completely sealing gaps increases the friction coefficient during reel rotation, potentially affecting the smoothness of the reel, the primary focus is on maximizing waterproof performance.
X-PROTECT
X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.
For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.

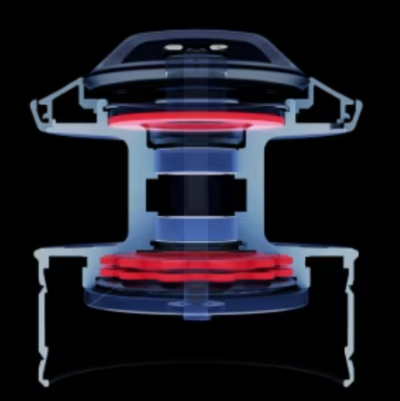

XX Tough Drag
In 2025, Shimano’s “X Tough Drag” has undergone a significant evolution — introducing the “XX Tough Drag.”
Each drag component features a combination of metal and highly wear-resistant carbon washers. With an enhanced spool structure, Shimano has now placed large-diameter drag washers not only on the bottom side of the spool, as in previous models, but also on the top side.
This improvement significantly enhances both the stability and durability of the drag system, as well as its resistance to heat buildup — a common issue when the spool rotates under high tension for extended periods.
These advancements are especially noticeable when targeting large fish, particularly in tough fishing situations where the drag is heavily used. Anglers will clearly feel the difference.
AR-C SPOOL
The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.
RIGID SUPPORT DRAG
The Rigid Support Drag system supports the spool with two bearings located on the main shaft and inside the spool. This setup minimizes spool wobble and delivers stable, smooth drag performance.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
ONE-PIECE BAIL
The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.
Tabla de especificaciones SHIMANO 2025 STELLA SW
Línea SHIMANO 2025 STELLA SW
| Modelo | Año | Agua Salada o Dulce | Peso（g） | Relación de engranaje | Recuperación（cm/vuelta） | Freno Máx.（kg） | Cap. línea nylon (lb-m) | Cap. línea trenzada (lb-m) | Brazo manivela（mm） | Diámetro bobina (mm) | Recorrido bobina (mm) | Rodamientos (Bolas/Rodillos) | Código JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8000PG | 2025 | Agua salada OK | 635 | 4.8 | 92 | 25 | - | 55-410, 60-300, 80-250 | 75 | 61 | 22 | 12/1 | 4969363047540 |
| 8000HG | 2025 | Agua salada OK | 630 | 5.6 | 107 | 25 | - | 55-410, 60-300, 80-250 | 75 | 61 | 22 | 12/1 | 4969363047557 |
| 8000XG | 2025 | Agua salada OK | 635 | 6.2 | 119 | 25 | - | 55-410, 60-300, 80-250 | 80 | 61 | 22 | 12/1 | 4969363047564 |
| 10000PG | 2025 | Agua salada OK | 680 | 4.8 | 99 | 25 | 22-300, 28-210, 35-160 | 60-400, 80-300, 90-250 | 80 | 66 | 22 | 12/1 | 4969363047571 |
| 10000HG | 2025 | Agua salada OK | 680 | 5.6 | 116 | 25 | 22-300, 28-210, 35-160 | 60-400, 80-300, 90-250 | 80 | 66 | 22 | 12/1 | 4969363047588 |
| 14000XG | 2025 | Agua salada OK | 685 | 6.2 | 134 | 25 | 35-195, 40-155, 45-140 | 80-360, 90-300, 100-220 | 80 | 68.6 | 22 | 12/1 | 4969363047595 |
Especificaciones en Notación Libra-Yarda
| Modelo | Año | Agua Salada o Dulce | Peso（oz) | Relación de engranaje | Recuperación（pulg/vuelta） | Freno Máx.（lb） | Cap. línea nylon (lb-yd) | Cap. línea trenzada (lb-yd) | Brazo manivela（pulg） | Diámetro bobina (pulg) | Recorrido bobina (pulg) | Rodamientos (Bolas/Rodillos) | Código JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8000PG | 2025 | Agua salada OK | 22.7 | 4.8 | 36.2 | 55.6 | - | 55-450, 60-330, 80-275 | 29.5 | 24 | 8.7 | 12/1 | 4969363047540 |
| 8000HG | 2025 | Agua salada OK | 22.5 | 5.6 | 42.1 | 55.6 | - | 55-450, 60-330, 80-275 | 29.5 | 24 | 8.7 | 12/1 | 4969363047557 |
| 8000XG | 2025 | Agua salada OK | 22.7 | 6.2 | 46.9 | 55.6 | - | 55-450, 60-330, 80-275 | 31.5 | 24 | 8.7 | 12/1 | 4969363047564 |
| 10000PG | 2025 | Agua salada OK | 24.3 | 4.8 | 39 | 55.6 | 22-330, 28-230, 35-175 | 60-440, 80-330, 90-275 | 31.5 | 26 | 8.7 | 12/1 | 4969363047571 |
| 10000HG | 2025 | Agua salada OK | 24.3 | 5.6 | 45.7 | 55.6 | 22-330, 28-230, 35-175 | 60-440, 80-330, 90-275 | 31.5 | 26 | 8.7 | 12/1 | 4969363047588 |
| 14000XG | 2025 | Agua salada OK | 24.5 | 6.2 | 52.8 | 55.6 | 35-210, 40-170, 45-155 | 80-400, 90-330, 100-240 | 31.5 | 27 | 8.7 | 12/1 | 4969363047595 |
