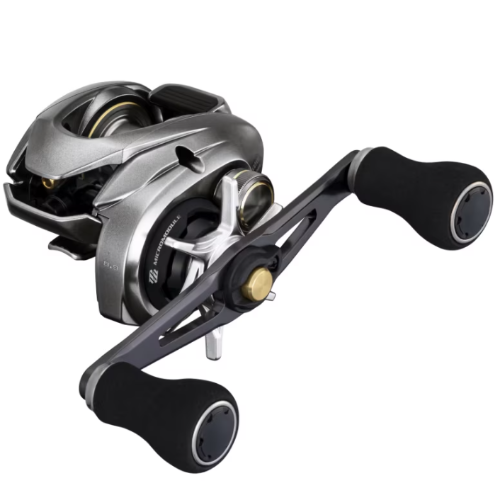

Description of "Shimano 2025 Stile 101XG"
Technology Features of Shimano 2025 Stile 101XG
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
MICRO MODULE GEAR
The gear teeth surfaces in the MICRO MODULE GEAR are finer and mesh more closely together than traditional gears, resulting in minimal power loss and a smooth, powerful winding experience. Additionally, the increased number of meshing teeth provides greater strength compared to conventional gears. This unique Shimano gear system achieves a balance of smoothness and durability.
X-SHIP
X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.
SVS (Shimano Variable Brake System)
This centrifugal brake system represents a pinnacle of design, delivering rapid spool startup and a smooth, extended casting trajectory. The braking section of the 21 Scorpion MD features an 8-pin SVS setup, which, when combined with a low-inertia spool that has been thinned and narrowed, enables precise brake control while maintaining impressive casting distance. Even with large, air-resistant lures like giant baits, the line stays firmly in place on the spool during casts, effectively preventing backlash.
CI4+
CI4+ is an advanced material used in Shimano reels. It is a reinforced carbon fiber composite that is lighter and stronger than conventional materials, providing increased rigidity and reducing weight, which enhances the overall performance and sensitivity of the reel.
EXCITING DRAG SOUND
EXCITING DRAG SOUND is a feature that produces a sound when the line is pulled out from the spool by a fish. Unlike traditional baitcasting reels, which typically do not emit a drag sound, this feature enhances the angler's experience by stimulating their senses, making the fight with the fish even more enjoyable.
S3D SPOOL
The S3D SPOOL features an entirely redesigned cutting method, significantly enhancing the spool's precision. As a result, this design improves the smoothness and reduces vibrations during casting, leading to a quieter and more stable performance.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
SUPER FREE SPOOL
SUPER FREE SPOOL is a system where the spool shaft is supported by only two bearings when the reel's clutch is disengaged. This design minimizes spool wobble and eliminates rotational resistance, allowing for exceptionally smooth and light spool free performance.
Tabla de especificaciones de SHIMANO 2025 Stile
Línea de productos SHIMANO 2025 Stile
| Línea de productos | Año | Agua salada o dulce | Peso（g） | Relación de engranajes | Recuperación（cm/vuelta） | Freno máximo（kg） | Capacidad de línea trenzada（lb-m） | Brazo de la manivela（mm） | Diámetro del carrete（mm） | Recorrido del carrete（mm） | Rodamientos（Bolas/Rodillos） | Código JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100PG | 2025 | Apto para agua salada | 145 | 6.4 | 58 | 4.5 | 20-200, 30-150, 40-100 | 55 | 29 | 19 | 10/1 | 4969363048462 |
| 101PG | 2025 | Apto para agua salada | 145 | 6.4 | 58 | 4.5 | 20-200, 30-150, 40-100 | 55 | 29 | 19 | 10/1 | 4969363048479 |
| 100XG | 2025 | Apto para agua salada | 145 | 8.9 | 81 | 3.5 | 20-200, 30-150, 40-100 | 55 | 29 | 19 | 10/1 | 4969363048486 |
| 101XG | 2025 | Apto para agua salada | 145 | 8.9 | 81 | 3.5 | 20-200, 30-150, 40-100 | 55 | 29 | 19 | 10/1 | 4969363048493 |
Especificaciones en notación de libras-yardas
| Línea de productos | Año | Agua salada o dulce | Peso（oz） | Relación de engranajes | Recuperación（pulgadas/vuelta） | Freno máximo（lb） | Capacidad de línea trenzada（lb-yd） | Brazo de la manivela（pulgadas） | Diámetro del carrete（pulgadas） | Recorrido del carrete（pulgadas） | Rodamientos（Bolas/Rodillos） | Código JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100PG | 2025 | Apto para agua salada | 5.2 | 6.4 | 22.8 | 10 | 20-220, 30-165, 40-110 | 2.17 | 1.14 | 0.75 | 10/1 | 4969363048462 |
| 101PG | 2025 | Apto para agua salada | 5.2 | 6.4 | 22.8 | 10 | 20-220, 30-165, 40-110 | 2.17 | 1.14 | 0.75 | 10/1 | 4969363048479 |
| 100XG | 2025 | Apto para agua salada | 5.2 | 8.9 | 31.9 | 7.8 | 20-220, 30-165, 40-110 | 2.17 | 1.14 | 0.75 | 10/1 | 4969363048486 |
| 101XG | 2025 | Apto para agua salada | 5.2 | 8.9 | 31.9 | 7.8 | 20-220, 30-165, 40-110 | 2.17 | 1.14 | 0.75 | 10/1 | 4969363048493 |
