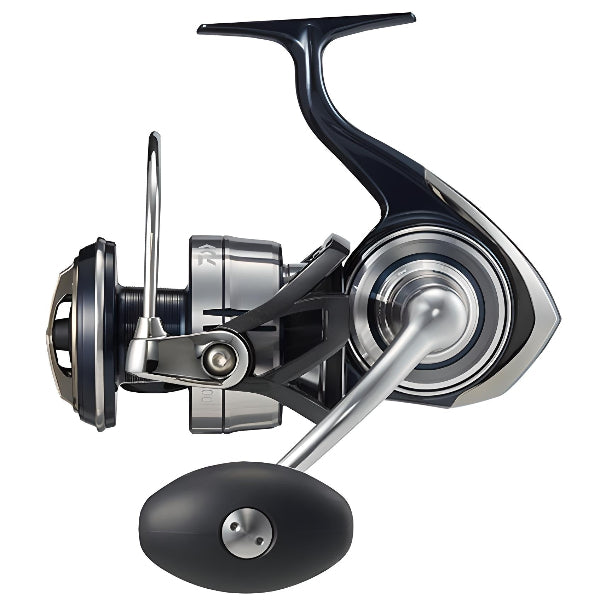

Description of "DAIWA 2021 CERTATE SW 8000-H"
Longitud de bobinado: 111cm/por giro de manivela Relación de engranajes: 5.8 Peso: 625g Fuerza máxima de arrastre: 25kg Capacidad de línea PE: #3.0-400m, #4.0-300m Rodamientos (bolas/rodillos): 8/1 El CERTATE SW de gran tamaño finalmente debuta en CERTATE, que es sinónimo de spinning resistente. En el corazón del resistente cuerpo MQ (monocasco) se encuentra un engranaje digital robusto de duraluminio G1 grande y engrosado. Demuestra una alta durabilidad y una comodidad de bobinado suave. El rotor de aire ZAION, que tiene tanto fuerza como baja inercia (baja inercia) a un alto nivel, soporta movimientos de sacudidas y recuperaciones de alta respuesta con un bobinado ligero y potente. El alto rendimiento impermeable de MAGSEA LED hace que el rendimiento inicial, que dura mucho tiempo, sea una prueba de fiabilidad. El rendimiento del arrastre es un sistema de arrastre de nueva generación que presume de una durabilidad superior al 200% en comparación con el sistema convencional. El sonido del clic del arrastre es una especificación de sonido grande que resuena. Con LC-ABS, que demuestra una excelente distancia de vuelo y un excelente rendimiento sin problemas, la sensación de lanzado hasta ahora cambia drásticamente. El modelo de alta velocidad, principalmente para lanzado, adopta una perilla de huevo de alto agarre, y el modelo de engranaje de potencia, principalmente para jigging, adopta una perilla de EVA redonda ligera.
Technology Features of DAIWA 2021 CERTATE SW 8000-H
MAGSEALED
DAIWA's MAGSEALED technology is designed to prevent water, salt, and debris from entering the reel, using magnetic fluid to form a barrier that protects critical components like bearings, line rollers, and gears from saltwater. DAIWA adapted magnetic fluid technology initially developed by NASA for dust protection in hard drives used in space. Unlike traditional rubber seals that increase handle rotation friction, the magnetic fluid is held in place by a magnetic field, reducing friction and enabling smooth operation. This technology enhances the reel's durability and performance, significantly improving reliability in harsh fishing environments without requiring meticulous maintenance.
MONOCOQUE BODY
The MONOCOQUE BODY in DAIWA reels refers to a single-piece body structure. Traditional spinning reels covered the drive gear with a body and body cover, secured by several screws, which posed strength issues. The MONOCOQUE BODY eliminates the body cover, directly setting a high-precision plate into the body. This change supports the body with the entire plate surface instead of just screw points, significantly enhancing precision, rigidity, and sealing. Also, because the fixed part of the screw that occupied space inside the body has been removed, It allows for larger drive gears, providing more powerful retrieves and smoother fights with big fish.
ATD (Automatic Drag)
DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.
TOUGH DIGIGEAR (G1 Duralumin)
DAIWA’s DIGIGEAR is a gear system realized through a manufacturing technique that accurately shapes the form derived from numerical analysis of power transmission efficiency by computer. Instead of casting, the gears are processed using forging, which provides higher strength, and then the gear teeth surfaces are smoothed through ultra-precision machine cutting, allowing for efficient power transmission. TOUGH DIGIGEAR enhances this by increasing the surface area of the gear teeth and the radius of the gear, further improving durability and strength, resulting in a smoother winding experience.
AIR ROTOR (ZAION)
AIR ROTOR is designed to achieve the ideal spherical shape for a rotating body. Through high-precision rigidity analysis, it maintains the same level of rigidity as traditional rotors while achieving significant weight reduction and lower inertia. The reduction in inertia allows anglers to stop and wind the reel at will, providing excellent responsiveness and a lighter, smoother winding experience.
TOUGH AIR BAIL
The AIR BAIL utilizes a hollow pipe structure to achieve both lightness and rigidity. Additionally, the line slider features a unique shape that smoothly guides the line to the line roller, ensuring trouble-free retrieval. The TOUGH AIR BAIL increases strength by approximately four times by thickening the stainless steel material. It also offers about 13 times the durability of solid titanium at the same weight.
LC-ABS
The LC-ABS spool features a two-step design on the front edge to enhance line release performance and streamline the flow. While maintaining the trouble-free usage of the previous ABS spool, it achieves an approximate 5% increase in casting distance combined with a reduction in spool weight.
Tabla de especificaciones del Daiwa 2021 Certate SW
Línea de productos Daiwa 2021 Certate SW
| Modelo | Año | Agua salada o dulce | Peso（g） | Relación de engranajes | Recuperación（cm/vuelta） | Freno máximo（kg） | Capacidad de línea trenzada (lb-m) | Brazo de la manivela（mm） | Rodamientos (Bolas/Rodillos) | Forma del pomo de la manivela |
|---|---|---|---|---|---|---|---|---|---|---|
| 5000-H | 2021 | Agua salada OK | 385 | 5.7 | 96 | 15 | 50-300, 55-210 | 65 | 10/1 | Redondo |
| 5000-XH | 2021 | Agua salada OK | 385 | 6.2 | 104 | 15 | 50-300, 55-210 | 65 | 10/1 | Redondo |
| 6000-P | 2021 | Agua salada OK | 375 | 4.9 | 86 | 15 | 55-300, 60-220 | 65 | 10/1 | Redondo |
| 6000-H | 2021 | Agua salada OK | 375 | 5.7 | 101 | 15 | 55-300, 60-220 | 65 | 10/1 | Redondo |
| 6000-XH | 2021 | Agua salada OK | 375 | 6.2 | 110 | 15 | 55-300, 60-220 | 65 | 10/1 | Redondo |
| 8000-P | 2021 | Agua salada OK | 615 | 4.8 | 92 | 25 | 55-400, 60-300 | 75 | 8/1 | Redondo |
| 8000-H | 2021 | Agua salada OK | 625 | 5.8 | 111 | 25 | 55-400, 60-300 | 80 | 8/1 | Huevo |
| 10000-P | 2021 | Agua salada OK | 620 | 4.8 | 98 | 25 | 60-400, 80-300 | 75 | 8/1 | Redondo |
| 10000-H | 2021 | Agua salada OK | 630 | 5.8 | 118 | 25 | 60-400, 80-300 | 80 | 8/1 | Huevo |
| 14000-XH | 2021 | Agua salada OK | 635 | 6.2 | 134 | 25 | 80-400, 90-300 | 80 | 8/1 | Huevo |
| 18000-H | 2021 | Agua salada OK | 850 | 5.8 | 131 | 30 | 90-400, 100-300 | 85 | 8/1 | Huevo |
Especificaciones en notación de libras-yardas
| Modelo | Año | Agua salada o dulce | Peso（oz) | Relación de engranajes | Recuperación（pulgadas/vuelta） | Freno máximo（lb） | Capacidad de línea trenzada (lb-yd) | Brazo de la manivela（pulgadas） | Rodamientos (Bolas/Rodillos) | Forma del pomo de la manivela |
|---|---|---|---|---|---|---|---|---|---|---|
| 5000-H | 2021 | Agua salada OK | 13.8 | 5.7 | 37.8 | 33.3 | 50-330, 55-230 | 2.56 | 10/1 | Redondo |
| 5000-XH | 2021 | Agua salada OK | 13.8 | 6.2 | 40.9 | 33.3 | 50-330, 55-230 | 2.56 | 10/1 | Redondo |
| 6000-P | 2021 | Agua salada OK | 13.4 | 4.9 | 33.9 | 33.3 | 55-330, 60-240 | 2.56 | 10/1 | Redondo |
| 6000-H | 2021 | Agua salada OK | 13.4 | 5.7 | 39.8 | 33.3 | 55-330, 60-240 | 2.56 | 10/1 | Redondo |
| 6000-XH | 2021 | Agua salada OK | 13.4 | 6.2 | 43.3 | 33.3 | 55-330, 60-240 | 2.56 | 10/1 | Redondo |
| 8000-P | 2021 | Agua salada OK | 22 | 4.8 | 36.2 | 55.6 | 55-440, 60-330 | 2.95 | 8/1 | Redondo |
| 8000-H | 2021 | Agua salada OK | 22.3 | 5.8 | 43.7 | 55.6 | 55-440, 60-330 | 3.15 | 8/1 | Huevo |
| 10000-P | 2021 | Agua salada OK | 22.1 | 4.8 | 38.6 | 55.6 | 60-440, 80-330 | 2.95 | 8/1 | Redondo |
| 10000-H | 2021 | Agua salada OK | 22.5 | 5.8 | 46.5 | 55.6 | 60-440, 80-330 | 3.15 | 8/1 | Huevo |
| 14000-XH | 2021 | Agua salada OK | 22.7 | 6.2 | 52.8 | 55.6 | 80-440, 90-330 | 3.15 | 8/1 | Huevo |
| 18000-H | 2021 | Agua salada OK | 30.4 | 5.8 | 51.6 | 66.7 | 90-440, 100-330 | 3.35 | 8/1 | Huevo |
