Description of "DAIWA 2021 PRESSO LT1000S-P"
Technology Features of DAIWA 2021 PRESSO LT1000S-P
MONOCOQUE BODY (ZAION)
The MONOCOQUE BODY in DAIWA reels refers to a single-piece body structure. Traditional spinning reels covered the drive gear with a body and body cover, secured by several screws, which posed strength issues. The MONOCOQUE BODY eliminates the body cover, directly setting a high-precision plate into the body. This change supports the body with the entire plate surface instead of just screw points, significantly enhancing precision, rigidity, and sealing. Also, because the fixed part of the screw that occupied space inside the body has been removed, It allows for larger drive gears, providing more powerful retrieves and smoother fights with big fish.
ZAION
ZAION is a top-tier carbon material created by DAIWA using proprietary technology to mold a special resin densely woven with carbon fibers, a process that is extremely difficult to achieve. It combines exceptional lightness and strength, making it the pinnacle of DAIWA's carbon materials. This superior performance is a privilege reserved only for the highest-end models.

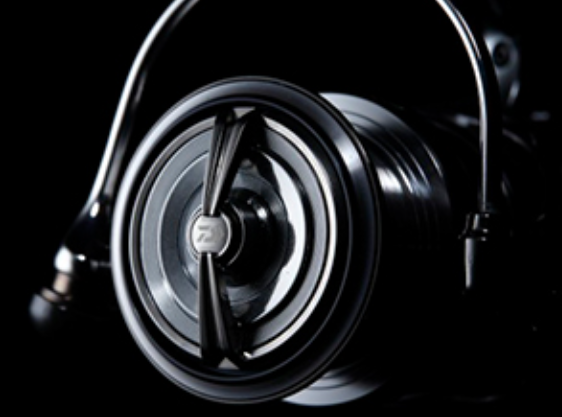

ATD (Automatic Drag)
DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.
TOUGH DIGIGEAR (Super Duralumin)
DAIWA’s DIGIGEAR is a gear system realized through a manufacturing technique that accurately shapes the form derived from numerical analysis of power transmission efficiency by computer. Instead of casting, the gears are processed using forging, which provides higher strength, and then the gear teeth surfaces are smoothed through ultra-precision machine cutting, allowing for efficient power transmission. TOUGH DIGIGEAR enhances this by increasing the surface area of the gear teeth and the radius of the gear, further improving durability and strength, resulting in a smoother winding experience.
LC-ABS
The LC-ABS spool features a two-step design on the front edge to enhance line release performance and streamline the flow. While maintaining the trouble-free usage of the previous ABS spool, it achieves an approximate 5% increase in casting distance combined with a reduction in spool weight.
daiwa 2021 presso Spec Chart
daiwa 2021 presso Line-up
| Line-up | Year | Salt or Fresh | Weight（ｇ） | Gear Ratio | Retrieve（cm/crank） | Max Drag（kg） | Mono line cap. (lb-m) | Braided line cap. (lb-m) | Handle Arm（mm） | Bearing (Ball/Roller) | Handle knob shape |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LT1000S-P | 2021 | Freshwater Only | 145 | 4.9 | 61 | 5 | 2.5-100 | 6-200 | 40 | 12/1 | I |
| LT2000SS-P | 2021 | Freshwater Only | 150 | 4.9 | 64 | 5 | 2.5-100 | 6-200 | 40 | 12/1 | I |
Specifications in Pound-Yard Notation
| Line-up | Year | Salt or Fresh | Weight（oz) | Gear Ratio | Retrieve（in/crank） | Max Drag（lb） | Mono line cap. (lb-yd) | Braided line cap. (yd-m) | Handle Arm（in） | Bearing (Ball/Roller) | Handle knob shape |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LT1000S-P | 2021 | Freshwater Only | 5.2 | 4.9 | 24 | 11.1 | 2.5-110 | 6-220 | 1.57 | 12/1 | I |
| LT2000SS-P | 2021 | Freshwater Only | 5.4 | 4.9 | 25.2 | 11.1 | 2.5-110 | 6-220 | 1.57 | 12/1 | I |
