Peso: 265 g Longitud de bobinado/por giro de manivela: 101 cm Relación de engranajes: 6.2 Capacidad de línea de nailon: #3.5-170m, #4-150m, #5-125m Capacidad de línea de fluorocarbono: #3-190m, #4-145m, #5-115m Capacidad de línea de PE: #1-490m, #1.5-320m, #2-240m Rodamiento: 5/1 Fuerza de arrastre máxima: 11 kg Longitud de la manivela: 57 mm Diámetro/carrera del carrete: 52 mm/19 mm LA EVOLUCIÓN DEFINITIVA. Shimano Ultegra es popular entre muchos pescadores debido a su rendimiento de rotación y durabilidad que supera lo esperado para su rango de precio. El diseño de la serie Core Solid, que busca un bobinado más suave y estable, es particularmente valioso cuando se pesca con señuelos que tienen una gran resistencia al bobinado, como los señuelos de vibración, que se bobinan continuamente a una velocidad constante. El rendimiento básico se ha mejorado aún más con la adición de Infinity Cross, Infinity Drive y Anti-twist fin, lo que lo hace fácil de usar tanto para usuarios principiantes como para usuarios experimentados. ■4000XG.....Modelo estándar para pesca de surf. Con una abrumadora capacidad de recuperación de línea floja obtenida de una velocidad de bobinado de 101 cm por giro de manivela, puedes accionar instantáneamente el señuelo sin pérdida de tiempo, incluso cuando el señuelo es empujado lejos por las olas o la línea es arrastrada por un viento cruzado.

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

MICRO MODULE GEAR 2

The gear teeth surfaces in the MICRO MODULE GEAR 2 are finer and mesh more closely together than traditional gears, resulting in minimal power loss and a smooth, powerful winding experience. Additionally, the increased number of meshing teeth provides greater strength compared to conventional gears. This unique Shimano gear system achieves a balance of smoothness and durability.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

INFINITY XROSS

INFINITY XROSS is a technology that increases the contact area between the drive gear and pinion gear through advancements in gear tooth surface design and manufacturing technology. By distributing the load applied to the gear tooth surface over a wider area, this technology prevents the gears from sustaining concentrated damage and breaking. As a result, the durability of the gears is approximately doubled compared to traditional Shimano gears.

INFINITY DRIVE

INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.

SILENT DRIVE

SILENT DRIVE involves a comprehensive redesign of the entire body and drive-related components, meticulously eliminating minute gaps, play, and vibration between parts. Areas of improvement include the drive gear, worm shaft, worm shaft pin, worm shaft gear, and slider gear, among others. This results in a new level of smooth rotational performance and a quiet, refined reeling experience.

ANTI TWIST FIN

The ANTI TWIST FIN is an elastic fin positioned close to the line roller. By preventing the line from sagging, it reduces the occurrence of the line being sucked into the lower part of the spool and the line being wound onto the spool while twisted.

X-PROTECT

X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.

For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.

G FREE BODY

The G Free Body relocates the sliding functional parts needed for spool movement to the upper part of the reel body, bringing the reel's center of gravity closer to the angler's hand. This design enhances the feeling of unity with the rod, making the reel feel lighter. It also reduces casting fatigue and improves rod handling.

LONG STROKE SPOOL

The Long Stroke Spool features a design that extends the width of the spool's line-winding area. This reduces line reduction during the latter part of the cast, contributing to improved casting feel and increased casting distance.

AR-C SPOOL

The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.

Shimano 2025 ULTEGRA 4000XG with CI4+ technology feature illustration

CI4+

CI4+ is an advanced material used in Shimano reels. It is a reinforced carbon fiber composite that is lighter and stronger than conventional materials, providing increased rigidity and reducing weight, which enhances the overall performance and sensitivity of the reel.

SA-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.

ONE-PIECE BAIL

The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.

Tabla de especificaciones de la ULTEGRA Shimano 2025

Gama ULTEGRA Shimano 2025

Modelo	Año	Agua salada o dulce	Peso (g)	Relación de engranajes	Recuperación (cm/vuelta)	Freno máx. (kg)	Capacidad de sedal de nylon (lb-m)	Capacidad de sedal de fluorocarbono (lb-m)	Capacidad de sedal trenzado (lb-m)	Brazo de manivela (mm)	Diámetro del carrete (mm)	Carrera del carrete (mm)	Rodamientos (Bolas/Rodillo)	Código JAN
C2000S	2025	Apto para agua salada	180	5.1	69	3	3-125, 4-100, 5-75	3-110, 4-85, 5-65	12-150, 16-110, 20-80	45	43	13.5	5/1	4969363047946
C2000SHG	2025	Apto para agua salada	180	6	81	3	3-125, 4-100, 5-75	3-110, 4-85, 5-65	12-150, 16-110, 20-80	45	43	13.5	5/1	4969363047953
C2500SHG	2025	Apto para agua salada	180	6	83	3	5-110, 6-95, 8-70	4-130, 5-100, 6-80	12-200, 16-150, 20-120	45	44	13.5	5/1	4969363047960
2500	2025	Apto para agua salada	215	5.1	75	9	8-170, 10-150, 12-120	8-140, 10-125, 12-100	20-320, 24-270, 30-220	55	47	17	5/1	4969363047977
2500SHG	2025	Apto para agua salada	210	5.8	86	4	5-110, 6-95, 8-70	4-130, 5-100, 6-80	12-200, 16-150, 20-120	55	47	17	5/1	4969363047984
C3000	2025	Apto para agua salada	220	5.1	75	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	47	17	5/1	4969363047991
C3000HG	2025	Apto para agua salada	220	5.8	86	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	47	17	5/1	4969363048004
C3000XG	2025	Apto para agua salada	220	6.4	94	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	47	17	5/1	4969363048011
4000	2025	Apto para agua salada	265	5.3	87	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	57	52	19	5/1	4969363048028
4000XG	2025	Apto para agua salada	265	6.2	101	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	57	52	19	5/1	4969363048035
C5000XG	2025	Apto para agua salada	275	6.2	101	11	16-190, 20-150, 22-125	16-170, 20-135, 22-115	30-400, 40-300, 55-200	57	52	19	5/1	4969363048042

Especificaciones en libras-yardas

Modelo	Año	Agua salada o dulce	Peso (oz)	Relación de engranajes	Recuperación (pulgadas/vuelta)	Freno máx. (lb)	Capacidad de sedal de nylon (lb-yd)	Capacidad de sedal de fluorocarbono (lb-yd)	Capacidad de sedal trenzado (lb-yd)	Brazo de manivela (pulgadas)	Diámetro del carrete (pulgadas)	Carrera del carrete (pulgadas)	Rodamientos (Bolas/Rodillo)	Código JAN
C2000S	2025	Apto para agua salada	6.4	5.1	27.2	6.7	3-140, 4-110, 5-80	3-120, 4-95, 5-70	12-165, 16-120, 20-90	1.77	2.05	0.75	5/1	4969363047946
C2000SHG	2025	Apto para agua salada	6.4	6	31.9	6.7	3-140, 4-110, 5-80	3-120, 4-95, 5-70	12-165, 16-120, 20-90	1.77	2.05	0.75	5/1	4969363047953
C2500SHG	2025	Apto para agua salada	6.4	6	32.7	6.7	5-120, 6-105, 8-80	4-145, 5-110, 6-90	12-220, 16-165, 20-130	1.77	2.05	0.75	5/1	4969363047960
2500	2025	Apto para agua salada	7.7	5.1	29.5	20	8-190, 10-165, 12-130	8-155, 10-140, 12-110	20-350, 24-300, 30-240	2.17	2.05	0.75	5/1	4969363047977
2500SHG	2025	Apto para agua salada	7.5	5.8	33.9	8.9	5-120, 6-105, 8-80	4-145, 5-110, 6-90	12-220, 16-165, 20-130	2.17	2.05	0.75	5/1	4969363047984
C3000	2025	Apto para agua salada	7.9	5.1	29.5	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	2.05	0.75	5/1	4969363047991
C3000HG	2025	Apto para agua salada	7.9	5.8	33.9	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	2.05	0.75	5/1	4969363048004
C3000XG	2025	Apto para agua salada	7.9	6.4	37	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	2.05	0.75	5/1	4969363048011
4000	2025	Apto para agua salada	9.5	5.3	34.3	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.24	2.05	0.75	5/1	4969363048028
4000XG	2025	Apto para agua salada	9.5	6.2	39.8	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.24	2.05	0.75	5/1	4969363048035
C5000XG	2025	Apto para agua salada	9.8	6.2	39.8	24.4	16-210, 20-165, 22-140	16-190, 20-150, 22-130	30-440, 40-330, 55-220	2.24	2.05	0.75	5/1	4969363048042

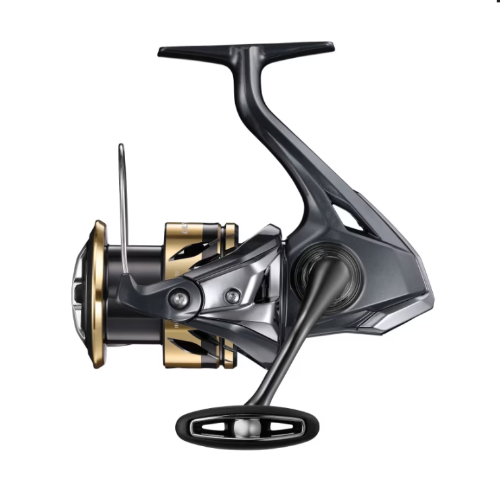

Shimano 2025 ULTEGRA 4000XG
