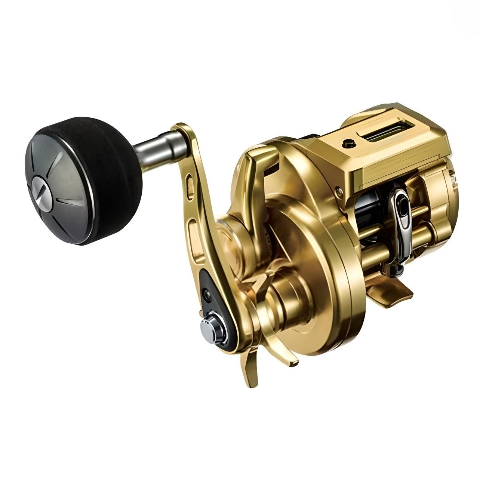

Description of "Shimano 2018 OCEA CONQUEST CT 200HG DERECHA"
Relación de engranajes: 6.2 Fuerza máxima de arrastre: 5.0kg Peso: 340g Capacidad de línea PE: #1-440m, #2-200m Longitud de bobinado: 78cm/por giro de manivela Tamaño de bobina: Diámetro 40mm/Ancho 18mm Longitud de manivela: 60mm Cantidad de rodamientos BB/rodillo: 10/1 Un modelo equipado con una palanca de caída y un contador digital ha aparecido en el Ocea Conquest. El rendimiento de caída de próxima generación se añade al robusto y suave sistema de transmisión, lo que le permite controlar libremente la acción de caída. Ahora es posible reproducir consciente y precisamente cebos que caen y cebos que escapan hacia el fondo. Por supuesto, todo el rendimiento básico sigue al Ocean Conquest, y apoya la estrategia del pescador con especificaciones avanzadas que están completamente equipadas con mecanismos avanzados. Su estilo es prueba de sofisticación. Caer y recoger, el rendimiento que se centra en ambas direcciones invita a los juegos en alta mar a alturas aún mayores. (Modelo 2018)
Technology Features of Shimano 2018 OCEA CONQUEST CT 200HG DERECHA
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
MICRO MODULE GEAR
The gear teeth surfaces in the MICRO MODULE GEAR are finer and mesh more closely together than traditional gears, resulting in minimal power loss and a smooth, powerful winding experience. Additionally, the increased number of meshing teeth provides greater strength compared to conventional gears. This unique Shimano gear system achieves a balance of smoothness and durability.
X-SHIP
X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.
FALLEVER
FALLEVER is a newly designed lever that allows for easy and precise control of fall speed, which was previously difficult to manage. By moving the lever forward or backward, you can adjust the mechanical brake to either increase or decrease the fall speed. This enables more strategic fishing, such as allowing the lure to fall quickly in mid-water and slowly near the bottom. Additionally, during casting, the brake can be applied to prevent backlash, and then smoothly released for a free fall. FALLEVER also allows for seamless operation of casting and subsequent actions with a single lever.
S COMPACT BODY
The S COMPACT BODY design reduces the diameter of the reel on the palming side compared to the handle side, creating a more comfortable grip that feels as if the reel is one size smaller. This enhances palming comfort and control.
EXCITING DRAG SOUND
EXCITING DRAG SOUND is a feature that produces a sound when the line is pulled out from the spool by a fish. Unlike traditional baitcasting reels, which typically do not emit a drag sound, this feature enhances the angler's experience by stimulating their senses, making the fight with the fish even more enjoyable.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
LED BACK LIGHT
The LED BACK LIGHT allows for easy viewing of the reel's LCD screen even at night. You can choose different lighting modes, such as lighting up only when the spool is rotating, lighting up for 5 seconds when a button is pressed, or staying on continuously. This feature is particularly useful for night fishing when it's important to accurately monitor the depth on the LCD screen counter.
Tabla de especificaciones de Shimano 2018 Ocea Conquest CT
Línea Shimano 2018 Ocea Conquest CT
| Línea | Año | Agua salada o dulce | Peso（ｇ） | Relación de engranajes | Recuperación（cm/vuelta） | Freno máx. (kg) | Cap. línea monofilamento (lb-m) | Cap. línea trenzada（lbｰm） | Brazo de manivela（mm） | Diámetro de bobina (mm) | Ancho de bobina (mm) | Rodamientos (Bolas/Rodillos) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200HG DERECHA | 2018 | Agua salada OK | 340 | 6.2 | 78 | 5 | Solo para línea trenzada | 20-440, 40-200 | 60 | 40 | 18 | 10/1 |
| 201HG IZQUIERDA | 2018 | Agua salada OK | 340 | 6.2 | 78 | 5 | Solo para línea trenzada | 20-440, 40-200 | 60 | 40 | 18 | 10/1 |
| 200PG DERECHA | 2018 | Agua salada OK | 330 | 4.8 | 60 | 6 | Solo para línea trenzada | 20-440, 40-200 | 48 | 40 | 18 | 12/1 |
| 201PG IZQUIERDA | 2018 | Agua salada OK | 330 | 4.8 | 60 | 6 | Solo para línea trenzada | 20-440, 40-200 | 48 | 40 | 18 | 12/1 |
Especificaciones en notación de libras-yardas
| Línea | Año | Agua salada o dulce | Peso（oz） | Relación de engranajes | Recuperación（pulgadas/vuelta） | Freno máx. (lb) | Cap. línea monofilamento (lb-yd) | Cap. línea trenzada（lbｰyd） | Brazo de manivela（pulgadas） | Diámetro de bobina (pulgadas) | Ancho de bobina (pulgadas) | Rodamientos (Bolas/Rodillos) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200HG DERECHA | 2018 | Agua salada OK | 12.1 | 6.2 | 30.7 | 11.1 | Solo para línea trenzada | 20-485, 40-220 | 2.36 | 1.57 | 0.71 | 10/1 |
| 201HG IZQUIERDA | 2018 | Agua salada OK | 12.1 | 6.2 | 30.7 | 11.1 | Solo para línea trenzada | 20-485, 40-220 | 2.36 | 1.57 | 0.71 | 10/1 |
| 200PG DERECHA | 2018 | Agua salada OK | 11.8 | 4.8 | 23.6 | 13.3 | Solo para línea trenzada | 20-485, 40-220 | 1.89 | 1.57 | 0.71 | 12/1 |
| 201PG IZQUIERDA | 2018 | Agua salada OK | 11.8 | 4.8 | 23.6 | 13.3 | Solo para línea trenzada | 20-485, 40-220 | 1.89 | 1.57 | 0.71 | 12/1 |
