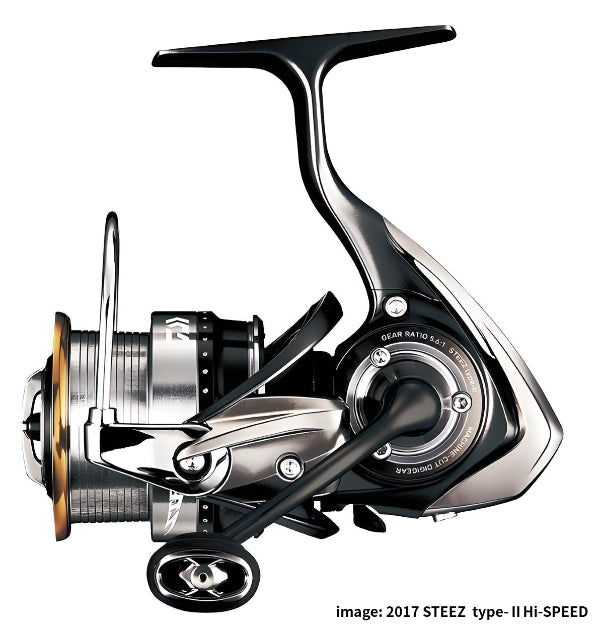

DAIWA 2017 STEEZ (Spinning)

Tabla de especificaciones del DAIWA 2017 Steez (Spinning)

Modelo	Año	Agua Salada o Dulce	Peso（g）	Relación de Engranajes	Recuperación（cm/vuelta）	Freno Máximo（kg）	Capacidad de línea de fluorocarbono (lb-m)	Brazo de Manivela（mm）	Rodamientos (Bolas/Rodillos)
type-I	2017	Solo Agua Dulce	168	4.8	64	2	2.5-100, 3-80	45	12/1
type-I Hi-SPEED	2017	Solo Agua Dulce	168	5.6	74	2	2.5-100, 3-80	45	12/1
type-II	2017	Solo Agua Dulce	178	4.8	72	3	4-110, 5-80	50	12/1
type-II Hi-SPEED	2017	Solo Agua Dulce	178	5.6	84	3	4-110, 5-80	50	12/1

Especificaciones en notación de libras-yardas

Modelo	Año	Agua Salada o Dulce	Peso（oz)	Relación de Engranajes	Recuperación（in/vuelta）	Freno Máximo（lb）	Capacidad de línea de fluorocarbono (lb-yd)	Brazo de Manivela（in）	Rodamientos (Bolas/Rodillos)
type-I	2017	Solo Agua Dulce	6	4.8	25.2	4.4	2.5-110, 3-90	1.77	12/1
type-I Hi-SPEED	2017	Solo Agua Dulce	6	5.6	29.1	4.4	2.5-110, 3-90	1.77	12/1
type-II	2017	Solo Agua Dulce	6.4	4.8	28.3	6.7	4-120, 5-90	1.97	12/1
type-II Hi-SPEED	2017	Solo Agua Dulce	6.4	5.6	33.1	6.7	4-120, 5-90	1.97	12/1

ATD (Automatic Drag)

DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.

AIR ROTOR (ZAION)

AIR ROTOR is designed to achieve the ideal spherical shape for a rotating body. Through high-precision rigidity analysis, it maintains the same level of rigidity as traditional rotors while achieving significant weight reduction and lower inertia. The reduction in inertia allows anglers to stop and wind the reel at will, providing excellent responsiveness and a lighter, smoother winding experience.

ZAION

ZAION is a top-tier carbon material created by DAIWA using proprietary technology to mold a special resin densely woven with carbon fibers, a process that is extremely difficult to achieve. It combines exceptional lightness and strength, making it the pinnacle of DAIWA's carbon materials. This superior performance is a privilege reserved only for the highest-end models.

CROSS WRAP

CROSS WRAP uses an angled cross-wrapping method that prevents lines from cutting into and slipping on the spool. This technique is particularly effective in reducing line troubles, especially when using thin or PE lines, while also ensuring a smoother and more enjoyable casting experience.

LC-ABS

The LC-ABS spool features a two-step design on the front edge to enhance line release performance and streamline the flow. While maintaining the trouble-free usage of the previous ABS spool, it achieves an approximate 5% increase in casting distance combined with a reduction in spool weight.

AIR BAIL

The AIR BAIL utilizes a hollow pipe structure to achieve both lightness and rigidity. Additionally, the line slider features a unique shape that smoothly guides the line to the line roller, ensuring trouble-free retrieval.

TWIST BUSTER Ⅱ

TWIST BUSTER Ⅱ reduces line twist caused by rotor rotation by tapering the line roller and rolling the line in the opposite direction on the roller. This innovation significantly alleviates the line twist that was once considered an unavoidable issue in spinning reels.
