Description of "Shimano 2020 Beast Master 1000EJ"
Gear ratio: 5.3 Maximum Drag force: 15kg Weight: 700g Line Capacity PE: #3.0-400m, #4.0-300m, #5.0-230m Line Capacity Fluoro: #5-250m, #6-200m Winding length: 70cm/per handle rotation Spool diameter/width: 42mm/34mm Bearing quantity BB/Roller: 14/1 Handle length: 70mm Beast Master No. 1000, the smallest size, was born with an EJ mode that supports electric jigging. By installing GIGA-MAX MOTOR, high power and high speed are realized in a compact body. Furthermore, with a maximum drag force of 15 kg and a reinforced gear system, it has the performance and durability to confront large blue objects. The NEW touch drive, which was first installed in the Beast Master series, prevents erroneous operation and adds an intermediate speed setting function that makes it easier to set the speed. In addition, it is equipped with a speed clutch that enables the clutch to be turned ON / OFF by simply pushing the clutch lever. And with the S compact body with improved palming by arranging the cable connector on the handle side, it supports a wide range of hard boat fishing such as squid, flying squid, amberjack, yellowtail as well as electric jigging that requires power by hand.
Technology Features of Shimano 2020 Beast Master 1000EJ
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

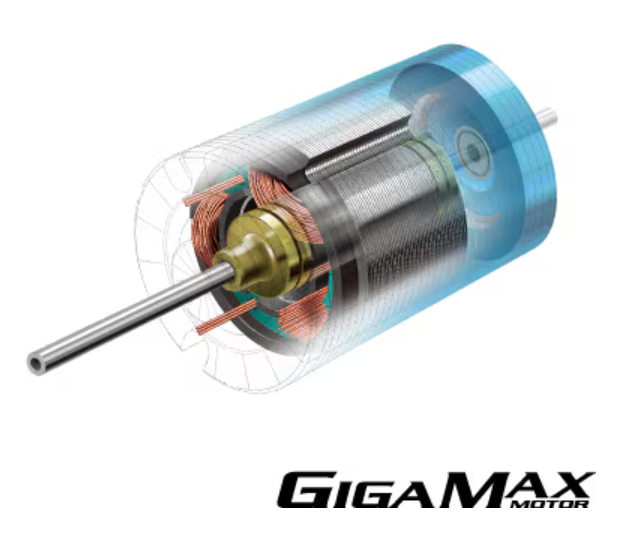

GIGAMAX MOTOR
The GIGAMAX MOTOR is a brushless motor designed to deliver powerful performance even under elevated heat conditions, where traditional motors often experience reduced efficiency. Unlike conventional motors, it lacks brushes, which are typically carbon or copper components that wear out over time. This absence of brushes not only extends the motor's lifespan but also enhances its durability. Widely used in high-performance applications such as racing cars and bullet trains, the GIGAMAX MOTOR excels in power, speed, and durability, offering top-tier performance.
THERMO ADJUST DRAG
A control feature designed to prevent abnormal heat generation in the drag system, ensuring stable drag performance. When the motor of an electric reel is engaged and the drag slips, the gears may over-spin, causing excessive heat in the drag area. To mitigate this, the system automatically reduces the motor’s speed when drag slippage occurs.
e-EXCITING DRAG SOUND
EXCITING DRAG SOUND is a feature that produces a sound when the line is pulled out from the spool by a fish. Unlike traditional baitcasting reels, which typically do not emit a drag sound, this feature enhances the angler's experience by stimulating their senses, making the fight with the fish even more enjoyable.The e-EXCITING DRAG SOUND is an electronic version of this.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
FINE DOT LCD
A dot matrix LCD that offers excellent visibility and ease of operation.
Shimano 2020 Beast Master 1000EJ Spec Chart
Shimano Beast Master Line-up
| Line-up | Handle | Year | Salt or Fresh | Weight（ｇ） | Gear Ratio | Retrieve（cm/crank） | Max Drag（kg） | Mono line cap. (lb-m) | Fluoro line cap. (lb-m) | Braided line cap. (lb-m) | Handle Arm（mm） | Spool diameter (mm) | Spool width (mm) | Bearing (Ball/Roller) | Retrieve power (kg) | Max retrieve speed (m/min) | Electric cable (cm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 | Right | 2022 | Saltwater OK | 690 | 5.1 | 70 | 15 | - | 20-320, 22-250 | 55-500, 60-400, 80-300 | 60 | 44 | 38 | 12/1 | 9.5 | 215 | 250 |
| 1000EJ | Right | 2020 | Saltwater OK | 700 | 5.3 | 70 | 15 | - | 20-250, 22-200 | 55-400, 60-300, 80-230 | 70 | 42 | 34 | 14/1 | 9.5 | 215 | 250 |
| MD 3000 | Right | 2020 | Saltwater OK | 1090 | 4.6 | 70 | 25 | - | 20-370, 22-310, 25-290, 28-220 | 60-470, 80-350, 90-300, 100-200 | 75 | 48 | 47 | 15/1 | 14 | 215 | 250 |
| 9000 | Right | 2022 | Saltwater OK | 1485 | 3.1 | 88 | 25 | 40-700, 45-550, 50-500 | - | 90-1100, 100-900, 130-650 | 75 | 90 | 62 | 14/0 | 20 | 170 | 250 |
| MD 6000 | Right | 2022 | Saltwater OK | 2070 | 2.4 | 53 | 43 | 40-430, 45-380, 50-350 | - | 90-830, 100-600, 130-450 | 80/92 | 70 | 49 | 20/0 | 38 | 170 | 250 |
| MD 12000 | Right | 2023 | Saltwater OK | 2300 | 2.4 | 53 | 43 | 40-860, 45-760, 50-700 | - | 90-1660, 100-1200, 130-900 | 80/92 | 70 | 96 | 20/0 | 38 | 170 | 250 |
Specifications in Pound-Yard Notation
| Line-up | Handle | Year | Salt or Fresh | Weight（oz) | Gear Ratio | Retrieve（in/crank） | Max Drag（lb） | Mono line cap. (lb-yd) | Fluoro line cap. (lb-yd) | Braided line cap. (lb-yd) | Handle Arm（in） | Spool diameter (in) | Spool width (in) | Bearing (Ball/Roller) | Retrieve power (lb) | Max retrieve speed (yd/min) | Electric cable (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 | Right | 2022 | Saltwater OK | 24.6 | 5.1 | 27.6 | 33.3 | - | 20-350, 22-275 | 55-550, 60-440, 80-330 | 23.6 | 1.73 | 1.5 | 12/1 | 21.1 | 240 | 98 |
| 1000EJ | Right | 2020 | Saltwater OK | 25 | 5.3 | 27.6 | 33.3 | - | 20-275, 22-220 | 55-440, 60-330, 80-255 | 27.6 | 1.65 | 1.34 | 14/1 | 21.1 | 240 | 98 |
| MD 3000 | Right | 2020 | Saltwater OK | 38.9 | 4.6 | 27.6 | 55.6 | - | 20-410, 22-340, 25-320, 28-240 | 60-520, 80-385, 90-330, 100-220 | 2.95 | 1.89 | 1.85 | 15/1 | 31.1 | 240 | 98 |
| 9000 | Right | 2022 | Saltwater OK | 53 | 3.1 | 34.6 | 55.6 | 40-770, 45-605, 50-550 | - | 90-1210, 100-990, 130-715 | 29.5 | 3.54 | 2.44 | 14/0 | 44.4 | 190 | 98 |
| MD 6000 | Right | 2022 | Saltwater OK | 73.9 | 2.4 | 20.9 | 95.6 | 40-475, 45-420, 50-385 | - | 90-915, 100-660, 130-495 | 3.15/3.62 | 2.76 | 1.93 | 20/0 | 84.4 | 190 | 98 |
| MD 12000 | Right | 2023 | Saltwater OK | 82.1 | 2.4 | 20.9 | 95.6 | 40-950, 45-840, 50-770 | - | 90-1830, 100-1320, 130-990 | 3.15/3.62 | 2.76 | 3.78 | 20/0 | 84.4 | 190 | 98 |
