Relación de engranajes: 5.7 Fuerza máxima de arrastre: 10kg Peso: 445g Diámetro/carrera del carrete: 54mm/19mm Capacidad de línea Nylon: #4-200m, #5-150m, #6-130m Capacidad de línea PE: #2.0-350m, #3-240m, #4.0-170m Longitud de bobinado: 97cm/por giro de manivela Longitud de la manivela: 65mm Cantidad de rodamientos BB/Rodillos: 4/1 Para mantener la pesca en todo momento. El Spheros SW está equipado con tecnologías que rompen con la sabiduría convencional en su rango de precios, como el X Shield, que cuenta con un rendimiento impermeable equivalente a IPX-8, X Protect, X-SHIP y cuerpo HAGANE, y es compatible con escenarios de agua salada difíciles. El modelo 2021 está además equipado con Infinity Drive, engranaje HAGANE y arandela de carbono para mejorar aún más la durabilidad y el rendimiento. Además, al adoptar el engranaje HAGANE y la manivela de aluminio mecanizado, su peso propio es 50-85g más ligero que el modelo anterior. Cubre 5 modelos: 5000HG, 6000HG, 6000PG, 8000HG, 8000PG, que son de gran importancia en la pesca de bajura, y es adecuado para una amplia gama de juegos, desde jigging hasta casting, tanto desde costa como en alta mar.

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

INFINITY DRIVE

INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.

X-SHIELD

Shimano's waterproof mechanisms include "Core Protect," "X-Protect," and "X-Shield." "X-Shield," used in the SW series, is a waterproof mechanism designed to prevent water ingress by sealing gaps with special seals. Strong sealing is applied at various points, including the body-lid interface and the spool-drag knob contact area, to block water entry paths. This ensures high reliability and durability in the harsh conditions of SW game fishing. While completely sealing gaps increases the friction coefficient during reel rotation, potentially affecting the smoothness of the reel, the primary focus is on maximizing waterproof performance.

X-PROTECT

X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.

For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.

AR-C SPOOL

The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.

Shimano 2021 Spheros SW 6000HG with A-RB technology feature illustration

A-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance.

Tabla de especificaciones del Shimano Spheros SW

Línea Shimano Spheros SW

Modelo	Año	Agua Salada o Dulce	Peso (g)	Relación de Transmisión	Recuperación (cm/vuelta)	Freno Máx. (kg)	Cap. línea monofilamento (lb-m)	Cap. línea fluorocarbono (lb-m)	Cap. línea trenzada (lb-m)	Brazo de la manivela (mm)	Diámetro del carrete (mm)	Recorrido del carrete (mm)	Rodamientos (Bolas/Rodillos)
3000XG	2019	OK para agua salada	255	6.2	91	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	46.5	14.5	3/1
4000HG	2019	OK para agua salada	280	5.8	93	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	55	51	17	3/1
4000XG	2019	OK para agua salada	280	6.2	99	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	55	51	17	3/1
5000HG	2021	OK para agua salada	445	5.7	97	10	16-200, 20-150, 22-130	-	40-350, 55-240, 60-170	65	54	19	4/1
6000PG	2021	OK para agua salada	450	4.6	83	10	16-240, 20-190, 22-160	-	40-440, 55-300, 60-210	65	57.5	19	4/1
6000HG	2021	OK para agua salada	450	5.7	103	10	16-240, 20-190, 22-160	-	40-440, 55-300, 60-210	65	57.5	19	4/1
8000PG	2021	OK para agua salada	670	4.9	94	13	20-275, 22-230, 28-160	-	55-410, 60-300, 80-250	75	61	22	4/1
8000HG	2021	OK para agua salada	665	5.6	107	13	20-275, 22-230, 28-160	-	55-410, 60-300, 80-250	75	61	22	4/1

Especificaciones en notación de libras-yardas

Modelo	Año	Agua Salada o Dulce	Peso (oz)	Relación de Transmisión	Recuperación (pulgadas/vuelta)	Freno Máx. (lb)	Cap. línea monofilamento (lb-yd)	Cap. línea fluorocarbono (lb-yd)	Cap. línea trenzada (lb-yd)	Brazo de la manivela (pulgadas)	Diámetro del carrete (pulgadas)	Recorrido del carrete (pulgadas)	Rodamientos (Bolas/Rodillos)
3000XG	2019	OK para agua salada	9.1	6.2	35.8	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	1.83	0.57	3/1
4000HG	2019	OK para agua salada	10	5.8	36.6	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.17	2.01	0.67	3/1
4000XG	2019	OK para agua salada	10	6.2	39	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.17	2.01	0.67	3/1
5000HG	2021	OK para agua salada	15.9	5.7	38.2	22.2	16-220, 20-165, 22-145	-	40-385, 55-265, 60-190	2.56	2.13	0.75	4/1
6000PG	2021	OK para agua salada	16.1	4.6	32.7	22.2	16-265, 20-210, 22-180	-	40-485, 55-330, 60-230	2.56	2.26	0.75	4/1
6000HG	2021	OK para agua salada	16.1	5.7	40.6	22.2	16-265, 20-210, 22-180	-	40-485, 55-330, 60-230	2.56	2.26	0.75	4/1
8000PG	2021	OK para agua salada	23.9	4.9	37	28.9	20-300, 22-255, 28-180	-	55-450, 60-330, 80-275	2.95	2.4	0.87	4/1
8000HG	2021	OK para agua salada	23.8	5.6	42.1	28.9	20-300, 22-255, 28-180	-	55-450, 60-330, 80-275	2.95	2.4	0.87	4/1

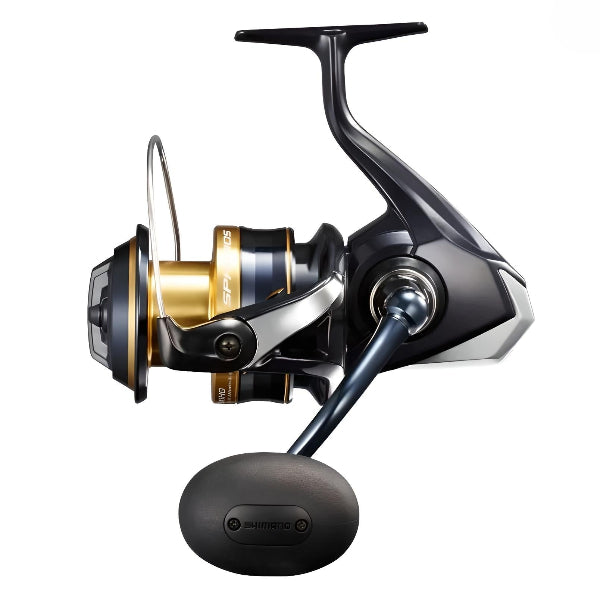

Shimano 2021 Spheros SW 6000HG

Description of "Shimano 2021 Spheros SW 6000HG"

Technology Features of Shimano 2021 Spheros SW 6000HG
