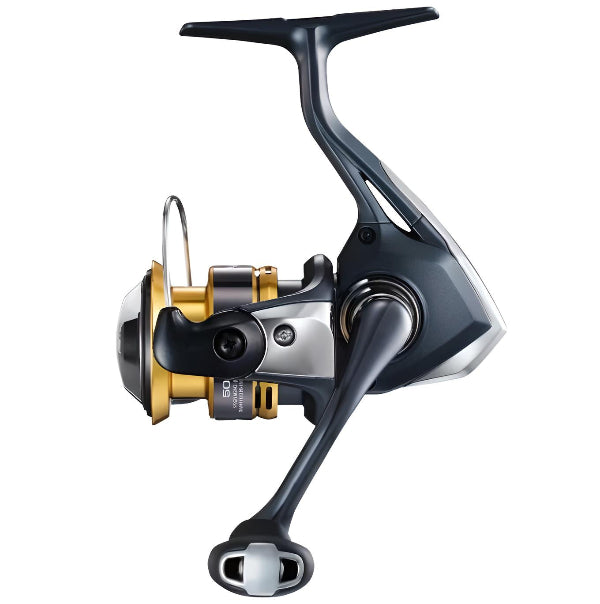

Technology Features of Shimano 2022 SAHARA 500
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
G FREE BODY
The G Free Body relocates the sliding functional parts needed for spool movement to the upper part of the reel body, bringing the reel's center of gravity closer to the angler's hand. This design enhances the feeling of unity with the rod, making the reel feel lighter. It also reduces casting fatigue and improves rod handling.
AR-C SPOOL
The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.
Shimano 2022 Sahara Spec Chart
Shimano 2022 Sahara Line-up
| Line-up | Year | Salt or Fresh | Weight（ｇ） | Gear Ratio | Retrieve（cm/crank） | Max Drag（kg） | Mono line cap. (lb-m) | Fluoro line cap. (lb-m) | Braided line cap. (lb-m) | Handle Arm（mm） | Spool diameter (mm) | Spool stroke (mm) | Bearing (Ball/Roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 2022 | Saltwater OK | 170 | 5.6 | 69 | 3 | 4-150, 6-90, 8-70 | 4-130, 6-85, 8-60 | 12-185, 16-140, 20-110 | 40 | 39.5 | 8 | 3/1 |
| 1000 | 2022 | Saltwater OK | 205 | 5 | 66 | 3 | 6-130, 8-100, 10-85 | 6-120, 8-85, 10-70 | 16-240, 20-190 | 45 | 42 | 12 | 4/1 |
| C2000S | 2022 | Saltwater OK | 210 | 5 | 66 | 3 | 3-125, 4-100, 5-75 | 3-110, 4-85, 5-65 | 12-150, 16-110, 20-80 | 45 | 42 | 12 | 4/1 |
| C2000SHG | 2022 | Saltwater OK | 210 | 6 | 79 | 3 | 3-125, 4-100, 5-75 | 3-110, 4-85, 5-65 | 12-150, 16-110, 20-80 | 45 | 42 | 12 | 4/1 |
| 2500 | 2022 | Saltwater OK | 240 | 5 | 73 | 9 | 8-170, 10-150, 12-120 | 8-140, 10-125, 12-100 | 20-320, 24-270, 30-220 | 55 | 46.5 | 14.5 | 4/1 |
| 2500SHG | 2022 | Saltwater OK | 240 | 6.2 | 91 | 4 | 5-110, 6-95, 8-70 | 4-130, 5-100, 6-80 | 12-200, 16-150, 20-120 | 55 | 46.5 | 14.5 | 4/1 |
| C3000 | 2022 | Saltwater OK | 240 | 5 | 73 | 9 | 10-180, 12-150, 16-100 | 10-160, 12-130, 16-100 | 20-400, 30-270, 40-200 | 55 | 46.5 | 14.5 | 4/1 |
| C3000DH | 2022 | Saltwater OK | 265 | 5 | 73 | 9 | 10-180, 12-150, 16-100 | 10-160, 12-130, 16-100 | 20-400, 30-270, 40-200 | 40 | 46.5 | 14.5 | 4/1 |
| C3000HG | 2022 | Saltwater OK | 240 | 6.2 | 91 | 9 | 10-180, 12-150, 16-100 | 10-160, 12-130, 16-100 | 20-400, 30-270, 40-200 | 55 | 46.5 | 14.5 | 4/1 |
| 4000 | 2022 | Saltwater OK | 280 | 4.7 | 75 | 11 | 14-170, 16-150, 20-125 | 12-190, 16-145, 20-115 | 20-490, 30-320, 40-240 | 55 | 51 | 17 | 4/1 |
| 4000XG | 2022 | Saltwater OK | 280 | 6.2 | 99 | 11 | 14-170, 16-150, 20-125 | 12-190, 16-145, 20-115 | 20-490, 30-320, 40-240 | 55 | 51 | 17 | 4/1 |
| C5000XG | 2022 | Saltwater OK | 305 | 6.2 | 105 | 11 | 16-190, 20-150, 22-125 | 16-170, 20-135, 22-115 | 30-400, 40-300, 55-200 | 55 | 54 | 17 | 4/1 |
Specifications in Pound-Yard Notation
| Line-up | Year | Salt or Fresh | Weight（oz) | Gear Ratio | Retrieve（in/crank） | Max Drag（lb） | Mono line cap. (lb-yd) | Fluoro line cap. (lb-yd) | Braided line cap. (lb-yd) | Handle Arm（in） | Spool diameter (in) | Spool stroke (in) | Bearing (Ball/Roller) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 2022 | Saltwater OK | 6.1 | 5.6 | 27.2 | 6.7 | 4-165, 6-100, 8-80 | 4-145, 6-95, 8-65 | 12-205, 16-155, 20-120 | 1.57 | 1.56 | 0.31 | 3/1 |
| 1000 | 2022 | Saltwater OK | 7.3 | 5 | 26 | 6.7 | 6-145, 8-110, 10-95 | 6-130, 8-95, 10-80 | 16-265, 20-210 | 1.77 | 1.65 | 0.47 | 4/1 |
| C2000S | 2022 | Saltwater OK | 7.5 | 5 | 26 | 6.7 | 3-140, 4-110, 5-80 | 3-120, 4-95, 5-70 | 12-165, 16-120, 20-90 | 1.77 | 1.65 | 0.47 | 4/1 |
| C2000SHG | 2022 | Saltwater OK | 7.5 | 6 | 31.1 | 6.7 | 3-140, 4-110, 5-80 | 3-120, 4-95, 5-70 | 12-165, 16-120, 20-90 | 1.77 | 1.65 | 0.47 | 4/1 |
| 2500 | 2022 | Saltwater OK | 8.6 | 5 | 28.7 | 20 | 8-190, 10-165, 12-130 | 8-155, 10-140, 12-110 | 20-350, 24-300, 30-240 | 2.17 | 1.83 | 0.57 | 4/1 |
| 2500SHG | 2022 | Saltwater OK | 8.6 | 6.2 | 35.8 | 8.9 | 5-120, 6-105, 8-80 | 4-145, 5-110, 6-90 | 12-220, 16-165, 20-130 | 2.17 | 1.83 | 0.57 | 4/1 |
| C3000 | 2022 | Saltwater OK | 8.6 | 5 | 28.7 | 20 | 10-200, 12-165, 16-110 | 10-180, 12-145, 16-110 | 20-440, 30-300, 40-220 | 2.17 | 1.83 | 0.57 | 4/1 |
| C3000DH | 2022 | Saltwater OK | 9.5 | 5 | 28.7 | 20 | 10-200, 12-165, 16-110 | 10-180, 12-145, 16-110 | 20-440, 30-300, 40-220 | 1.57 | 1.83 | 0.57 | 4/1 |
| C3000HG | 2022 | Saltwater OK | 8.6 | 6.2 | 35.8 | 20 | 10-200, 12-165, 16-110 | 10-180, 12-145, 16-110 | 20-440, 30-300, 40-220 | 2.17 | 1.83 | 0.57 | 4/1 |
| 4000 | 2022 | Saltwater OK | 10 | 4.7 | 29.5 | 24.4 | 14-190, 16-165, 20-140 | 12-210, 16-160, 20-130 | 20-540, 30-350, 40-265 | 2.17 | 2.01 | 0.67 | 4/1 |
| 4000XG | 2022 | Saltwater OK | 10 | 6.2 | 39 | 24.4 | 14-190, 16-165, 20-140 | 12-210, 16-160, 20-130 | 20-540, 30-350, 40-265 | 2.17 | 2.01 | 0.67 | 4/1 |
| C5000XG | 2022 | Saltwater OK | 10.9 | 6.2 | 41.3 | 24.4 | 16-210, 20-165, 22-140 | 16-190, 20-150, 22-130 | 30-440, 40-330, 55-220 | 2.17 | 2.13 | 0.67 | 4/1 |
