Tableau des spécifications Daiwa 2023 Luxus LBD
| Gamme | Année | Eau salée ou douce | Poids（ｇ） | Rapport de transmission | Récupération（cm/tour de manivelle） | Frein max (kg) | Frein de combat max (kg) | Capacité ligne mono（lb-m） | Bras de manivelle（mm） | Roulement (Billes/Aiguilles) | Forme de la poignée |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2500H-LBD | 2023 | Eau salée OK | 255 | 6.2 | 93 | 8 | 14 | 12-150 | 50 | 7/0 | T |
| 2500XH-LBD | 2023 | Eau salée OK | 255 | 6.6 | 99 | 8 | 14 | 12-150 | 50 | 7/0 | T |
| 3000H-LBD | 2023 | Eau salée OK | 255 | 6.2 | 93 | 8 | 14 | 16-150 | 50 | 7/0 | T |
| 3000XH-LBD | 2023 | Eau salée OK | 255 | 6.6 | 99 | 8 | 14 | 16-150 | 50 | 7/0 | T |
Spécifications en notation Livre-Yard
| Gamme | Année | Eau salée ou douce | Poids（oz） | Rapport de transmission | Récupération（po/tour de manivelle） | Frein max (lb) | Frein de combat max (lb) | Capacité ligne mono（lb-yd） | Bras de manivelle（po） | Roulement (Billes/Aiguilles) | Forme de la poignée |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2500H-LBD | 2023 | Eau salée OK | 9.1 | 6.2 | 36.6 | 17.8 | 31.1 | 12-165 | 1.97 | 7/0 | T |
| 2500XH-LBD | 2023 | Eau salée OK | 9.1 | 6.6 | 39 | 17.8 | 31.1 | 12-165 | 1.97 | 7/0 | T |
| 3000H-LBD | 2023 | Eau salée OK | 9.1 | 6.2 | 36.6 | 17.8 | 31.1 | 16-165 | 1.97 | 7/0 | T |
| 3000XH-LBD | 2023 | Eau salée OK | 9.1 | 6.6 | 39 | 17.8 | 31.1 | 16-165 | 1.97 | 7/0 | T |
Fonctionnalités technologiques de DAIWA LUXUS LBD 2023

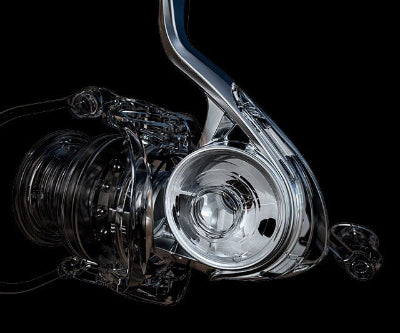

MONOCOQUE BODY
The MONOCOQUE BODY in DAIWA reels refers to a single-piece body structure. Traditional spinning reels covered the drive gear with a body and body cover, secured by several screws, which posed strength issues. The MONOCOQUE BODY eliminates the body cover, directly setting a high-precision plate into the body. This change supports the body with the entire plate surface instead of just screw points, significantly enhancing precision, rigidity, and sealing. Also, because the fixed part of the screw that occupied space inside the body has been removed, It allows for larger drive gears, providing more powerful retrieves and smoother fights with big fish.

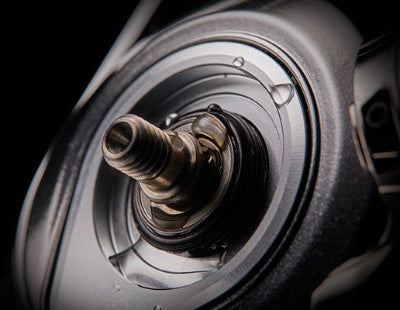

MAGSEALED
DAIWA's MAGSEALED technology is designed to prevent water, salt, and debris from entering the reel, using magnetic fluid to form a barrier that protects critical components like bearings, line rollers, and gears from saltwater. DAIWA adapted magnetic fluid technology initially developed by NASA for dust protection in hard drives used in space. Unlike traditional rubber seals that increase handle rotation friction, the magnetic fluid is held in place by a magnetic field, reducing friction and enabling smooth operation. This technology enhances the reel's durability and performance, significantly improving reliability in harsh fishing environments without requiring meticulous maintenance.

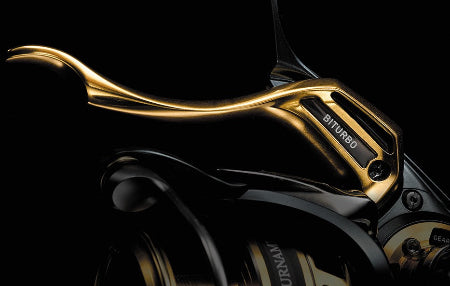

BITURBO BRAKE SYSTEM
By using high-friction titanium material for the brake discs, the BITURBO BRAKE SYSTEM achieves double the braking efficiency compared to previous models, delivering powerful stopping force. The brake response time to reach the necessary braking force is also reduced to one-quarter of the usual, allowing strong braking power to be exerted with minimal effort.

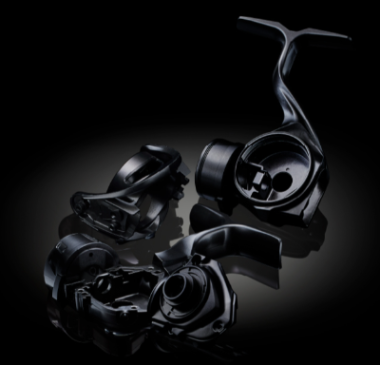

ZAION V
ZAION V (V for Versatile) is a carbon hybrid resin developed to make reels lighter and stronger. By precisely controlling the amount of hybrid carbon, it achieves a high level of lightness that surpasses metal and strength that rivals it. This versatile material can be applied to many reels, carrying forward the essence of ZAION, the highest specification of carbon hybrid resin.
AIR ROTOR
AIR ROTOR is designed to achieve the ideal spherical shape for a rotating body. Through high-precision rigidity analysis, it maintains the same level of rigidity as traditional rotors while achieving significant weight reduction and lower inertia. The reduction in inertia allows anglers to stop and wind the reel at will, providing excellent responsiveness and a lighter, smoother winding experience.

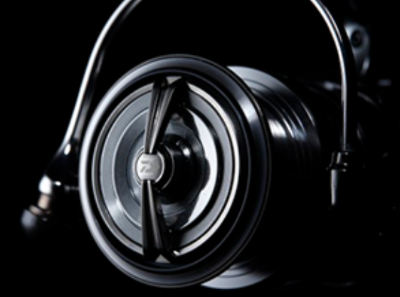

ATD (Automatic Drag)
DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.
