Filtres

DAIWA 2024 LUVIAS

12 produits

Affiche 1 - 12 de 12 produits

Affiche 1 - 12 de 12 produits
Voir
DAIWA 2024 LUVIAS LT5000D-CXH
DAIWA DAIWA 2024 LUVIAS LT5000D-CXH
Prix réduit$301.00 Prix normal$316.00
En stock
DAIWA 2024 LUVIAS LT4000-XH
DAIWA DAIWA 2024 LUVIAS LT4000-XH
Prix réduit$290.00 Prix normal$299.00
En stock

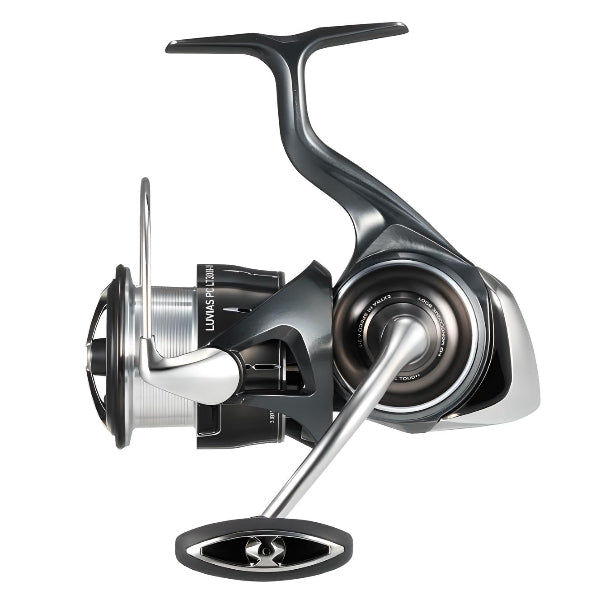

DAIWA 2024 LUVIAS PC LT3000-XH
DAIWA DAIWA 2024 LUVIAS PC LT3000-XH
Prix réduit$283.00 Prix normal$297.00
En stock
DAIWA 2024 LUVIAS PC LT3000
DAIWA DAIWA 2024 LUVIAS PC LT3000
Prix réduit$284.00
En stock
DAIWA 2024 LUVIAS LT3000-H
DAIWA DAIWA 2024 LUVIAS LT3000-H
Prix réduit$278.00
En stock
DAIWA 2024 LUVIAS PC LT2500-H
DAIWA DAIWA 2024 LUVIAS PC LT2500-H
Prix réduit$272.00 Prix normal$283.00
En stock
DAIWA 2024 LUVIAS PC LT2500
DAIWA DAIWA 2024 LUVIAS PC LT2500
Prix réduit$272.00 Prix normal$283.00
En stock
DAIWA 2024 LUVIAS LT2500S-XH
DAIWA DAIWA 2024 LUVIAS LT2500S-XH
Prix réduit$268.00
En stock
DAIWA 2024 LUVIAS LT2500S-DH
DAIWA DAIWA 2024 LUVIAS LT2500S-DH
Prix réduit$279.00
En stock
DAIWA 2024 LUVIAS LT2500S
DAIWA Pre-Order DAIWA 2024 LUVIAS LT2500S
Prix réduit$278.00
En stock
DAIWA 2024 LUVIAS LT2000S-H
DAIWA DAIWA 2024 LUVIAS LT2000S-H
Prix réduit$264.00
En stock
DAIWA 2024 LUVIAS LT2000S-P
DAIWA DAIWA 2024 LUVIAS LT2000S-P
Prix réduit$264.00
En stock

Key Features of DAIWA 2024 LUVIAS

AIRDRIVE DESIGN

AIRDRIVE DESIGN is the next-generation spinning reel concept, developed to allow anglers to control lures with precision and ease. This design is composed of up to four advanced technologies. At its core is the AIRDRIVE ROTOR, which ensures smooth and highly responsive rotation, making it an essential component. Supporting this performance are the AIRDRIVE BAIL, which is lightweight and trouble-free, and the AIRDRIVE SPOOL, which has been meticulously engineered to reduce unnecessary material to the absolute minimum, achieving an extremely lightweight design. Finally, the AIRDRIVE SHAFT, supported by high-precision collars and featuring a non-contact structure with the pinion gear, enables exceptionally smooth winding with minimal noise, even under heavy loads. The synergy of these elements, along with improved reel balance, delivers superior operability at a high level.

AIRDRIVE ROTOR (ZAION)

DAIWA has continuously focused on improving the rotational response of spinning reel rotors. Through its unique approach, DAIWA has developed a new shape that appears to be carved directly from a sphere. By reinforcing areas where stress concentrates and thoroughly eliminating unnecessary material in less critical areas, they have achieved significant weight reduction while maintaining rigidity. This innovation has drastically improved the ease of rotation, leading to enhanced operability and sensitivity.

AIRDRIVE BAIL

For many years, DAIWA's spinning reels have featured the Air Bail, utilizing a hollow pipe structure that provides both lightness and rigidity. This design, along with its unique shape, ensures that the line is smoothly guided to the line roller, minimizing trouble during retrieval. The AIRDRIVE BAIL further enhances this by achieving even greater weight reduction while maintaining necessary strength through a slimmer design. Additionally, the bail is angled optimally to allow the line to transition more smoothly from the bail to the line roller, supporting the performance of the AIRDRIVE ROTOR while becoming even lighter and more trouble-free.

To achieve effortless line pickup, where the line is automatically set on the line roller via the bail, the bail's tilt angle is meticulously adjusted. The angle is made more obtuse as the line approaches the line roller, making it easier to guide the line to the roller.

In the AIRDRIVE BAIL, DAIWA offers a wire-type option that adopts a solid structure instead of adhering to the hollow pipe design. This wire type maintains sufficient strength for practical fishing while also achieving significant weight reduction and greatly reducing line troubles compared to conventional wire bails. The wire-type bail features an adjusted tilt angle, redesigned arm lever and line slider shapes, and an "anti-tangle roof" installed above the line roller, effectively preventing line tangles.

AIRDRIVE SPOOL

The AIRDRIVE SPOOL is designed with an ultra-thin construction, meticulously engineered to eliminate unnecessary material while maintaining strength. This lightweight design extends not only to the line-winding area and spool skirt but also to the interior of the spool, where no compromises were made. The reduction in spool weight enhances the ease of rotation, casting performance, and overall operability. Additionally, a new drag sound mechanism with minimal operational resistance has been developed. This mechanism produces a pleasant clicking sound while reducing resistance during operation, ensuring smoother and more consistent drag performance without any sticking.

AIRDRIVE SHAFT

DAIWA's linear shaft system, featured in its spinning reels, eliminates frictional resistance by creating a non-contact structure between the main shaft and the pinion gear. The AIRDRIVE SHAFT further enhances this by supporting both ends of the pinion gear with ball bearings, maximizing the power transferred from the handle to the rotor's rotational force. Additionally, the main shaft is supported by high-precision collars, which significantly reduce rotational noise.

MAGSEALED

DAIWA's MAGSEALED technology is designed to prevent water, salt, and debris from entering the reel, using magnetic fluid to form a barrier that protects critical components like bearings, line rollers, and gears from saltwater. DAIWA adapted magnetic fluid technology initially developed by NASA for dust protection in hard drives used in space. Unlike traditional rubber seals that increase handle rotation friction, the magnetic fluid is held in place by a magnetic field, reducing friction and enabling smooth operation. This technology enhances the reel's durability and performance, significantly improving reliability in harsh fishing environments without requiring meticulous maintenance.

MONOCOQUE BODY

The MONOCOQUE BODY in DAIWA reels refers to a single-piece body structure. Traditional spinning reels covered the drive gear with a body and body cover, secured by several screws, which posed strength issues. The MONOCOQUE BODY eliminates the body cover, directly setting a high-precision plate into the body. This change supports the body with the entire plate surface instead of just screw points, significantly enhancing precision, rigidity, and sealing. Also, because the fixed part of the screw that occupied space inside the body has been removed, It allows for larger drive gears, providing more powerful retrieves and smoother fights with big fish.

ZAION

ZAION is a top-tier carbon material created by DAIWA using proprietary technology to mold a special resin densely woven with carbon fibers, a process that is extremely difficult to achieve. It combines exceptional lightness and strength, making it the pinnacle of DAIWA's carbon materials. This superior performance is a privilege reserved only for the highest-end models.

TOUGH DIGIGEAR (Super Duralumin)

DAIWA’s DIGIGEAR is a gear system realized through a manufacturing technique that accurately shapes the form derived from numerical analysis of power transmission efficiency by computer. Instead of casting, the gears are processed using forging, which provides higher strength, and then the gear teeth surfaces are smoothed through ultra-precision machine cutting, allowing for efficient power transmission. TOUGH DIGIGEAR enhances this by increasing the surface area of the gear teeth and the radius of the gear, further improving durability and strength, resulting in a smoother winding experience.

ATD TYPE-L

(Not equipped in LT5000D-CXH)

DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.

ATD TYPE-L is designed to reduce the sudden spike in drag pressure when the line is pulled quickly, such as during a hookset, compared to the standard ATD. While maintaining the characteristics of ATD, ATD TYPE-L further improves the initial drag response, making it ideal for preventing line breaks when using light lines.

ATD TOUGH

(Only equipped in LT5000D-CXH)

DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.

ATD TOUGH utilizes carbon washers to achieve superior durability. By optimizing smoothness and responsiveness, it allows anglers to focus on the fight without worrying about drag settings.

LC-ABS

The LC-ABS spool features a two-step design on the front edge to enhance line release performance and streamline the flow. While maintaining the trouble-free usage of the previous ABS spool, it achieves an approximate 5% increase in casting distance combined with a reduction in spool weight.

all models of daiwa 2024 luvias

Line-up Year Salt or Fresh Weight(g) Gear Ratio Retrieve(cm/crank) Max Drag(kg) Mono line cap. (lb-m) Braided line cap. (lb-m) Handle Arm(mm) Bearing (Ball/Roller) Handle knob shape
LT2000S-P 2024 Saltwater OK 145 4.9 64 5 3-150 8-200 40 9/1 I
LT2000S-H 2024 Saltwater OK 145 5.8 76 5 3-150 8-200 45 9/1 I
LT2500S 2024 Saltwater OK 150 5.1 72 5 4-150 12-200 50 9/1 I
LT2500S-DH 2024 Saltwater OK 165 5.1 72 5 4-150 12-200 90 10/1 I
LT2500S-XH 2024 Saltwater OK 150 6.2 87 5 4-150 12-200 50 9/1 I
PC LT2500 2024 Saltwater OK 170 5.2 73 10 6-150 16-200 50 9/1 T
PC LT2500-H 2024 Saltwater OK 170 5.7 80 10 6-150 16-200 55 9/1 T
LT3000-H 2024 Saltwater OK 175 5.7 85 10 8-150 20-200 55 9/1 T
PC LT3000 2024 Saltwater OK 205 5.2 77 10 8-150 20-200 60 9/1 T
PC LT3000-XH 2024 Saltwater OK 205 6.2 93 10 8-150 20-200 60 9/1 T
LT4000-XH 2024 Saltwater OK 215 6.2 99 12 12-150 30-200 60 9/1 T
LT5000D-CXH 2024 Saltwater OK 225 6.2 105 12 25-150 50-300 60 9/1 Round



IN POUND-YARD NOTATION

Line-up Year Salt or Fresh Weight(oz) Gear Ratio Retrieve(in/crank) Max Drag(lb) Mono line cap. (lb-yd) Braided line cap. (lb-yd) Handle Arm(in) Bearing (Ball/Roller) Handle knob shape
LT2000S-P 2024 Saltwater OK 5.2 4.9 25.2 11.1 3-165 8-220 1.57 9/1 I
LT2000S-H 2024 Saltwater OK 5.2 5.8 29.9 11.1 3-165 8-220 1.77 9/1 I
LT2500S 2024 Saltwater OK 5.4 5.1 28.3 11.1 4-165 12-220 1.97 9/1 I
LT2500S-DH 2024 Saltwater OK 5.9 5.1 28.3 11.1 4-165 12-220 3.54 10/1 I
LT2500S-XH 2024 Saltwater OK 5.4 6.2 34.3 11.1 4-165 12-220 1.97 9/1 I
PC LT2500 2024 Saltwater OK 6.1 5.2 28.7 22.2 6-165 16-220 1.97 9/1 T
PC LT2500-H 2024 Saltwater OK 6.1 5.7 31.5 22.2 6-165 16-220 2.17 9/1 T
LT3000-H 2024 Saltwater OK 6.3 5.7 33.5 22.2 8-165 20-220 2.17 9/1 T
PC LT3000 2024 Saltwater OK 7.3 5.2 30.3 22.2 8-165 20-220 2.36 9/1 T
PC LT3000-XH 2024 Saltwater OK 7.3 6.2 36.6 22.2 8-165 20-220 2.36 9/1 T
LT4000-XH 2024 Saltwater OK 7.7 6.2 39 26.7 12-165 30-220 2.36 9/1 T
LT5000D-CXH 2024 Saltwater OK 8 6.2 41.3 26.7 25-165 50-330 2.36 9/1 Round
