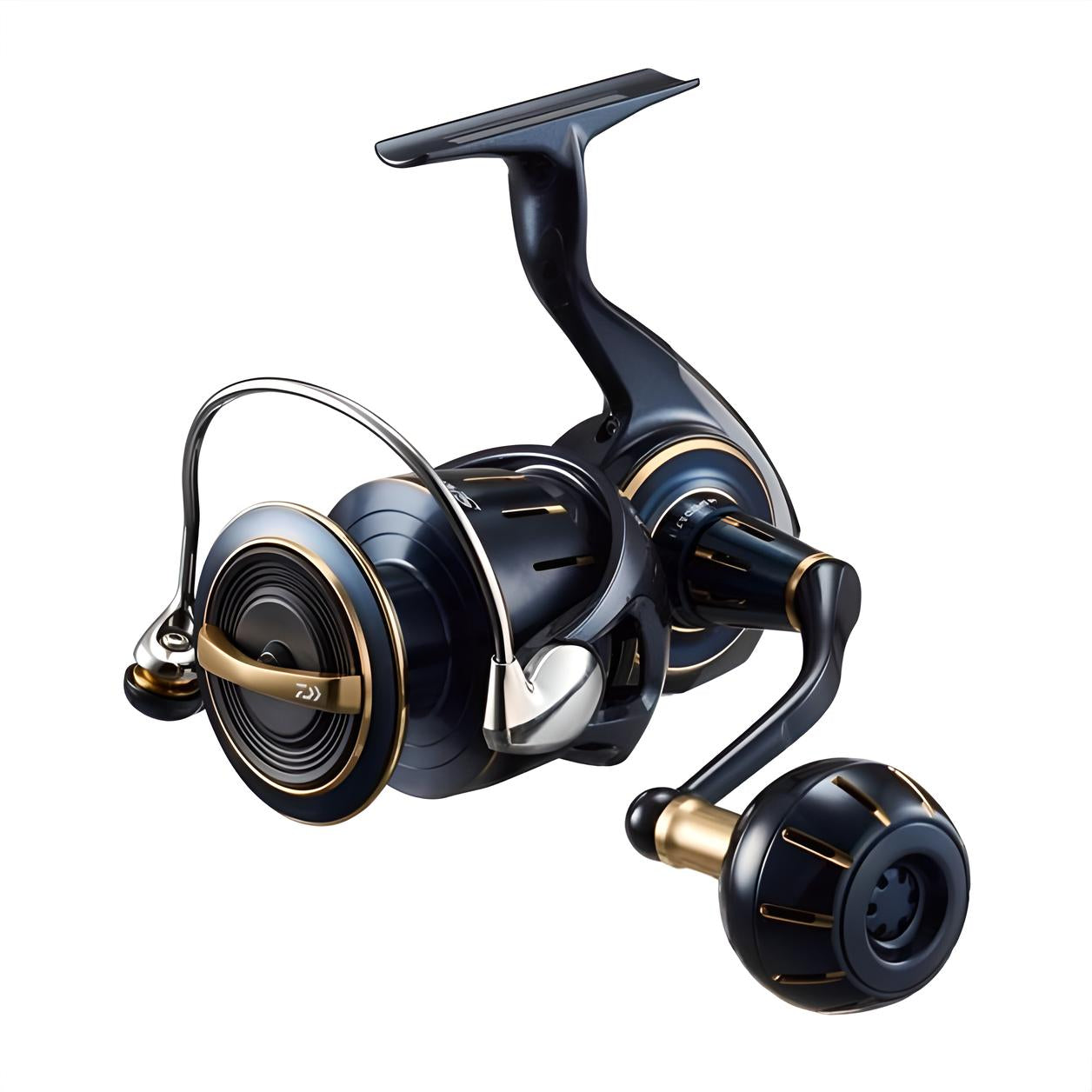

Daiwa Saltiga Spec Chart
| Line-up | Year | Salt or Fresh | Weight（ｇ） | Gear Ratio | Retrieve（cm/crank） | Max Drag（kg） | Braided line cap. (lb-m) | Handle Arm（mm） | Bearing (Ball/Roller) | Handle knob shape |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000-H | 2023 | Saltwater OK | 345 | 5.7 | 90 | 12 | 40-300 | 65 | 12/1 | Round |
| 4000-XH | 2023 | Saltwater OK | 345 | 6.2 | 98 | 12 | 40-300 | 65 | 12/1 | Round |
| 5000-P | 2023 | Saltwater OK | 365 | 4.9 | 82 | 15 | 50-300 | 65 | 12/1 | Round |
| 5000-H | 2023 | Saltwater OK | 365 | 5.7 | 96 | 15 | 50-300 | 65 | 12/1 | Round |
| 5000-XH | 2023 | Saltwater OK | 365 | 6.2 | 104 | 15 | 50-300 | 65 | 12/1 | Round |
| 6000-P | 2023 | Saltwater OK | 400 | 4.9 | 86 | 15 | 55-300 | 70 | 12/1 | Round |
| 6000-H | 2023 | Saltwater OK | 400 | 5.7 | 101 | 15 | 55-300 | 70 | 12/1 | Round |
| 6000-XH | 2023 | Saltwater OK | 400 | 6.2 | 110 | 15 | 55-300 | 70 | 12/1 | Round |
| 8000-P | 2020 | Saltwater OK | 645 | 4.8 | 92 | 25 | 55-400, 60-300 | 75 | 12/1 | Round |
| 8000-H | 2020 | Saltwater OK | 655 | 5.8 | 111 | 25 | 55-400, 60-300 | 80 | 12/1 | Egg |
| 10000-P | 2020 | Saltwater OK | 645 | 4.8 | 98 | 25 | 60-400, 80-300 | 75 | 12/1 | Round |
| 10000-H | 2020 | Saltwater OK | 655 | 5.8 | 118 | 25 | 60-400, 80-300 | 80 | 12/1 | Egg |
| 14000-P | 2020 | Saltwater OK | 655 | 4.8 | 104 | 25 | 80-400, 90-300 | 75 | 12/1 | Round |
| 14000-XH | 2020 | Saltwater OK | 665 | 6.2 | 134 | 25 | 80-400, 90-300 | 80 | 12/1 | Egg |
| 18000-P | 2020 | Saltwater OK | 875 | 4.5 | 101 | 30 | 80-400, 90-300 | 85 | 12/1 | Round |
| 18000-H | 2020 | Saltwater OK | 885 | 5.8 | 131 | 30 | 90-400, 100-300 | 85 | 12/1 | Egg |
| 20000-H | 2020 | Saltwater OK | 890 | 5.8 | 143 | 30 | 100-400, 130-300 | 85 | 12/1 | Egg |
Specifications in Pound-Yard Notation
| Line-up | Year | Salt or Fresh | Weight（oz） | Gear Ratio | Retrieve（in/crank） | Max Drag（lb） | Braided line cap. (lb-yd) | Handle Arm（in） | Bearing (Ball/Roller) | Handle knob shape |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000-H | 2023 | Saltwater OK | 12.3 | 5.7 | 35.4 | 26.7 | 40-330 | 2.56 | 12/1 | Round |
| 4000-XH | 2023 | Saltwater OK | 12.3 | 6.2 | 38.6 | 26.7 | 40-330 | 2.56 | 12/1 | Round |
| 5000-P | 2023 | Saltwater OK | 13 | 4.9 | 32.3 | 33.3 | 50-330 | 2.56 | 12/1 | Round |
| 5000-H | 2023 | Saltwater OK | 13 | 5.7 | 37.8 | 33.3 | 50-330 | 2.56 | 12/1 | Round |
| 5000-XH | 2023 | Saltwater OK | 13 | 6.2 | 40.9 | 33.3 | 50-330 | 2.56 | 12/1 | Round |
| 6000-P | 2023 | Saltwater OK | 14.3 | 4.9 | 33.9 | 33.3 | 55-330 | 2.76 | 12/1 | Round |
| 6000-H | 2023 | Saltwater OK | 14.3 | 5.7 | 39.8 | 33.3 | 55-330 | 2.76 | 12/1 | Round |
| 6000-XH | 2023 | Saltwater OK | 14.3 | 6.2 | 43.3 | 33.3 | 55-330 | 2.76 | 12/1 | Round |
| 8000-P | 2020 | Saltwater OK | 23 | 4.8 | 36.2 | 55.6 | 55-440, 60-330 | 2.95 | 12/1 | Round |
| 8000-H | 2020 | Saltwater OK | 23.4 | 5.8 | 43.7 | 55.6 | 55-440, 60-330 | 3.15 | 12/1 | Egg |
| 10000-P | 2020 | Saltwater OK | 23 | 4.8 | 38.6 | 55.6 | 60-440, 80-330 | 2.95 | 12/1 | Round |
| 10000-H | 2020 | Saltwater OK | 23.4 | 5.8 | 46.5 | 55.6 | 60-440, 80-330 | 3.15 | 12/1 | Egg |
| 14000-P | 2020 | Saltwater OK | 23.4 | 4.8 | 40.9 | 55.6 | 80-440, 90-330 | 2.95 | 12/1 | Round |
| 14000-XH | 2020 | Saltwater OK | 23.8 | 6.2 | 52.8 | 55.6 | 80-440, 90-330 | 3.15 | 12/1 | Egg |
| 18000-P | 2020 | Saltwater OK | 31.3 | 4.5 | 39.8 | 66.7 | 80-440, 90-330 | 3.35 | 12/1 | Round |
| 18000-H | 2020 | Saltwater OK | 31.6 | 5.8 | 51.6 | 66.7 | 90-440, 100-330 | 3.35 | 12/1 | Egg |
| 20000-H | 2020 | Saltwater OK | 31.8 | 5.8 | 56.3 | 66.7 | 100-440, 130-330 | 3.35 | 12/1 | Egg |
Technology Features of DAIWA SALTIGA
AIRDRIVE DESIGN
AIRDRIVE DESIGN is the next-generation spinning reel concept, developed to allow anglers to control lures with precision and ease. This design is composed of up to four advanced technologies. At its core is the AIRDRIVE ROTOR, which ensures smooth and highly responsive rotation, making it an essential component. Supporting this performance are the AIRDRIVE BAIL, which is lightweight and trouble-free, and the AIRDRIVE SPOOL, which has been meticulously engineered to reduce unnecessary material to the absolute minimum, achieving an extremely lightweight design. Finally, the AIRDRIVE SHAFT, supported by high-precision collars and featuring a non-contact structure with the pinion gear, enables exceptionally smooth winding with minimal noise, even under heavy loads. The synergy of these elements, along with improved reel balance, delivers superior operability at a high level.
AIRDRIVE ROTOR
DAIWA has continuously focused on improving the rotational response of spinning reel rotors. Through its unique approach, DAIWA has developed a new shape that appears to be carved directly from a sphere. By reinforcing areas where stress concentrates and thoroughly eliminating unnecessary material in less critical areas, they have achieved significant weight reduction while maintaining rigidity. This innovation has drastically improved the ease of rotation, leading to enhanced operability and sensitivity.
AIRDRIVE BAIL
For many years, DAIWA's spinning reels have featured the Air Bail, utilizing a hollow pipe structure that provides both lightness and rigidity. This design, along with its unique shape, ensures that the line is smoothly guided to the line roller, minimizing trouble during retrieval. The AIRDRIVE BAIL further enhances this by achieving even greater weight reduction while maintaining necessary strength through a slimmer design. Additionally, the bail is angled optimally to allow the line to transition more smoothly from the bail to the line roller, supporting the performance of the AIRDRIVE ROTOR while becoming even lighter and more trouble-free.
To achieve effortless line pickup, where the line is automatically set on the line roller via the bail, the bail's tilt angle is meticulously adjusted. The angle is made more obtuse as the line approaches the line roller, making it easier to guide the line to the roller.
In the AIRDRIVE BAIL, DAIWA offers a wire-type option that adopts a solid structure instead of adhering to the hollow pipe design. This wire type maintains sufficient strength for practical fishing while also achieving significant weight reduction and greatly reducing line troubles compared to conventional wire bails. The wire-type bail features an adjusted tilt angle, redesigned arm lever and line slider shapes, and an "anti-tangle roof" installed above the line roller, effectively preventing line tangles.
To achieve effortless line pickup, where the line is automatically set on the line roller via the bail, the bail's tilt angle is meticulously adjusted. The angle is made more obtuse as the line approaches the line roller, making it easier to guide the line to the roller.
In the AIRDRIVE BAIL, DAIWA offers a wire-type option that adopts a solid structure instead of adhering to the hollow pipe design. This wire type maintains sufficient strength for practical fishing while also achieving significant weight reduction and greatly reducing line troubles compared to conventional wire bails. The wire-type bail features an adjusted tilt angle, redesigned arm lever and line slider shapes, and an "anti-tangle roof" installed above the line roller, effectively preventing line tangles.
AIRDRIVE SHAFT
DAIWA's linear shaft system, featured in its spinning reels, eliminates frictional resistance by creating a non-contact structure between the main shaft and the pinion gear. The AIRDRIVE SHAFT further enhances this by supporting both ends of the pinion gear with ball bearings, maximizing the power transferred from the handle to the rotor's rotational force. Additionally, the main shaft is supported by high-precision collars, which significantly reduce rotational noise.
MONOCOQUE BODY
The MONOCOQUE BODY in DAIWA reels refers to a single-piece body structure. Traditional spinning reels covered the drive gear with a body and body cover, secured by several screws, which posed strength issues. The MONOCOQUE BODY eliminates the body cover, directly setting a high-precision plate into the body. This change supports the body with the entire plate surface instead of just screw points, significantly enhancing precision, rigidity, and sealing. Also, because the fixed part of the screw that occupied space inside the body has been removed, It allows for larger drive gears, providing more powerful retrieves and smoother fights with big fish.
MAGSEALED
DAIWA's MAGSEALED technology is designed to prevent water, salt, and debris from entering the reel, using magnetic fluid to form a barrier that protects critical components like bearings, line rollers, and gears from saltwater. DAIWA adapted magnetic fluid technology initially developed by NASA for dust protection in hard drives used in space. Unlike traditional rubber seals that increase handle rotation friction, the magnetic fluid is held in place by a magnetic field, reducing friction and enabling smooth operation. This technology enhances the reel's durability and performance, significantly improving reliability in harsh fishing environments without requiring meticulous maintenance.
MAGSEALED LINE ROLLER
The line roller directly encounters water and sand carried by the line, making its waterproofing crucial for maintaining initial performance such as rotational feel and sensitivity. The MAGSEALED LINE ROLLER significantly reduces the ingress of salt and foreign particles. Additionally, improved rotation enhances the effectiveness of reducing line twist.
MAGSEALED BALL BEARING
Following the revolutionary waterproof and durability technologies applied to the reel body and line roller, DAIWA has extended these advancements to a crucial small component that significantly impacts reel rotation: the ball bearing. Through proprietary technology, DAIWA has become the first in the world to successfully apply MAGSEALED technology directly to the ball bearing itself. By creating a barrier of magnetic fluid, the intrusion of water and foreign particles into the ball bearing is prevented, maintaining its original smooth and light performance. This innovation eliminates the need for traditional seals or packing, significantly reducing rust, salt damage, and unwanted noise. As a result, the waterproofing and durability of the reel are dramatically enhanced, allowing it to retain its initial performance for a longer period.
TOUGH DIGIGEAR
DAIWA’s DIGIGEAR is a gear system realized through a manufacturing technique that accurately shapes the form derived from numerical analysis of power transmission efficiency by computer. Instead of casting, the gears are processed using forging, which provides higher strength, and then the gear teeth surfaces are smoothed through ultra-precision machine cutting, allowing for efficient power transmission. TOUGH DIGIGEAR enhances this by increasing the surface area of the gear teeth and the radius of the gear, further improving durability and strength, resulting in a smoother winding experience.
AIR ROTOR (Aluminum)
AIR ROTOR is designed to achieve the ideal spherical shape for a rotating body. Through high-precision rigidity analysis, it maintains the same level of rigidity as traditional rotors while achieving significant weight reduction and lower inertia. The reduction in inertia allows anglers to stop and wind the reel at will, providing excellent responsiveness and a lighter, smoother winding experience.
LC-ABS
The LC-ABS spool features a two-step design on the front edge to enhance line release performance and streamline the flow. While maintaining the trouble-free usage of the previous ABS spool, it achieves an approximate 5% increase in casting distance combined with a reduction in spool weight.
