Shimano Barchetta SC 2018

Tableau des spécifications du Shimano 2018 barchetta sc

Gamme	Année	Eau salée ou douce	Poids (g)	Rapport de transmission	Récupération (cm/tour)	Frein max (kg)	Capacité ligne mono (lb-m)	Capacité tresse (lb-m)	Manivelle (mm)	Diamètre de la bobine (mm)	Largeur de la bobine (mm)	Roulement (Billes/Rouleaux)

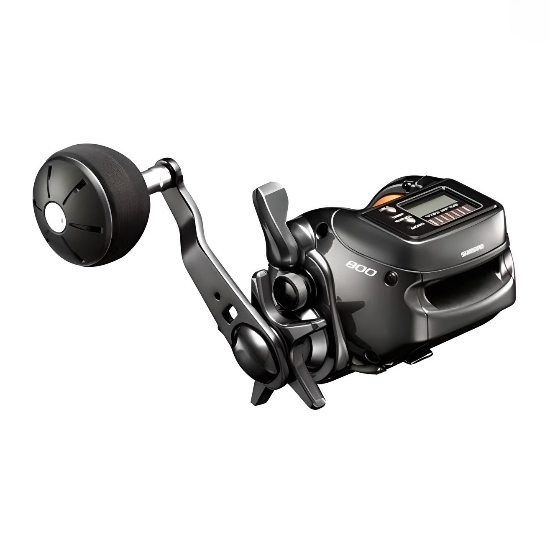

800 DROITE	2018	Eau salée OK	390	5.1	67	5	12-360, 16-250, 20-200	55-250, 60-200, 80-150	60/79	42	33	3/1

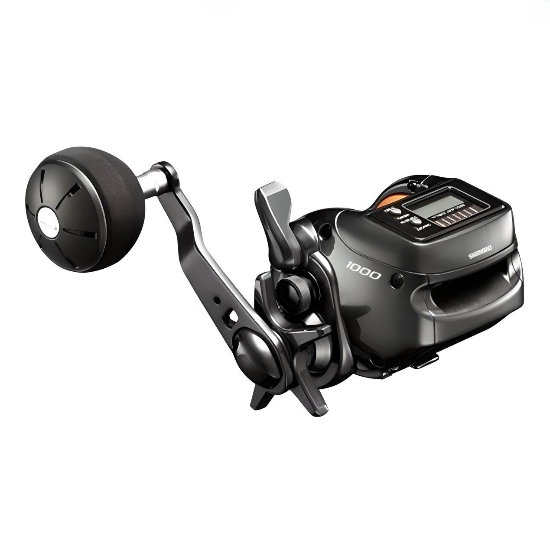

1000 DROITE	2018	Eau salée OK	380	5.1	67	5	16-330, 20-260, 22-210	55-300, 60-250, 80-200, 90-150	60/79	42	33	3/1

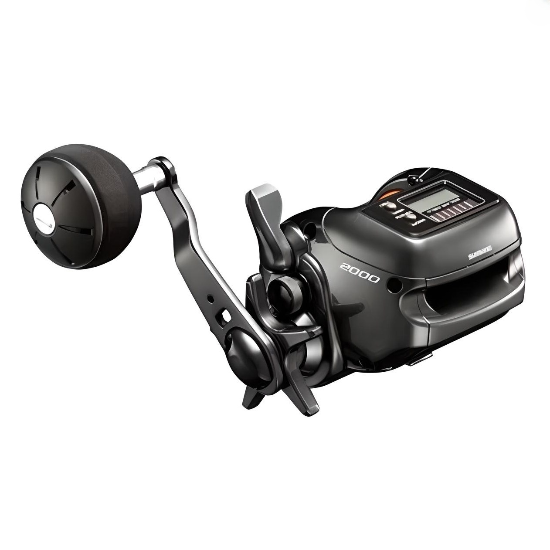

2000 DROITE	2018	Eau salée OK	395	5.1	67	5.5	20-300, 22-250, 25-210	60-300, 80-250, 90-200	60/79	42	38	3/1

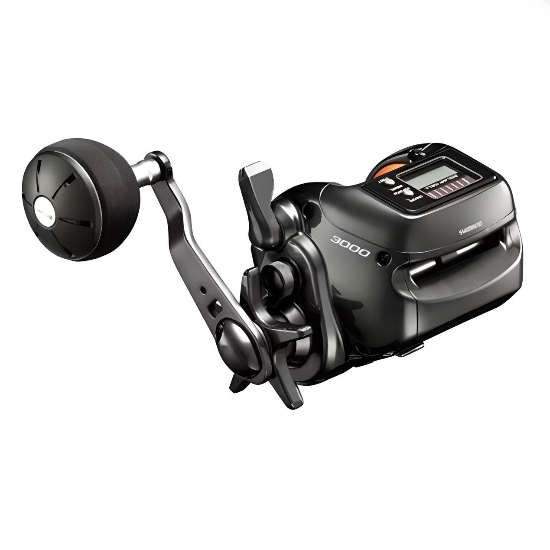

3000 DROITE	2018	Eau salée OK	455	4.6	72	8	22-400, 25-350, 28-290	80-370, 90-300, 100-200	60/79	50	43	3/1

Spécifications en notation livre-yard

Gamme	Année	Eau salée ou douce	Poids (oz)	Rapport de transmission	Récupération (po/tour)	Frein max (lb)	Capacité ligne mono (lb-yd)	Capacité tresse (lb-yd)	Manivelle (po)	Diamètre de la bobine (po)	Largeur de la bobine (po)	Roulement (Billes/Rouleaux)
800 DROITE	2018	Eau salée OK	13.9	5.1	26.4	11.1	12-400, 16-275, 20-220	55-275, 60-220, 80-165	2.36/3.11	1.65	1.3	3/1
1000 DROITE	2018	Eau salée OK	13.6	5.1	26.4	11.1	16-365, 20-290, 22-230	55-330, 60-275, 80-220, 90-165	2.36/3.11	1.65	1.3	3/1
2000 DROITE	2018	Eau salée OK	14.1	5.1	26.4	12.2	20-330, 22-275, 25-230	60-330, 80-275, 90-220	2.36/3.11	1.65	1.5	3/1
3000 DROITE	2018	Eau salée OK	16.3	4.6	28.3	17.8	22-440, 25-385, 28-320	80-410, 90-330, 100-220	2.36/3.11	1.97	1.69	3/1

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

MICRO MODULE GEAR

The gear teeth surfaces in the MICRO MODULE GEAR are finer and mesh more closely together than traditional gears, resulting in minimal power loss and a smooth, powerful winding experience. Additionally, the increased number of meshing teeth provides greater strength compared to conventional gears. This unique Shimano gear system achieves a balance of smoothness and durability.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

FALLEVER

FALLEVER is a newly designed lever that allows for easy and precise control of fall speed, which was previously difficult to manage. By moving the lever forward or backward, you can adjust the mechanical brake to either increase or decrease the fall speed. This enables more strategic fishing, such as allowing the lure to fall quickly in mid-water and slowly near the bottom. Additionally, during casting, the brake can be applied to prevent backlash, and then smoothly released for a free fall. FALLEVER also allows for seamless operation of casting and subsequent actions with a single lever.

S COMPACT BODY

The S COMPACT BODY design reduces the diameter of the reel on the palming side compared to the handle side, creating a more comfortable grip that feels as if the reel is one size smaller. This enhances palming comfort and control.

EXCITING DRAG SOUND

EXCITING DRAG SOUND is a feature that produces a sound when the line is pulled out from the spool by a fish. Unlike traditional baitcasting reels, which typically do not emit a drag sound, this feature enhances the angler's experience by stimulating their senses, making the fight with the fish even more enjoyable.

SA-RB

A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.

LED BACK LIGHT

The LED BACK LIGHT allows for easy viewing of the reel's LCD screen even at night. You can choose different lighting modes, such as lighting up only when the spool is rotating, lighting up for 5 seconds when a button is pressed, or staying on continuously. This feature is particularly useful for night fishing when it's important to accurately monitor the depth on the LCD screen counter.
