Technology Features of Shimano 2024 PLAYS 3000

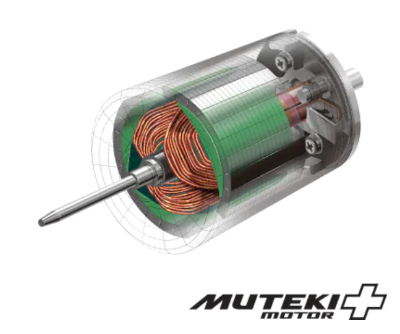

MUTEKI MOTOR
Conventional motors generally use plastic magnets, which limit their power and torque.The MUTEKI MOTOR is a high-speed, high-torque brush motor that utilizes powerful neodymium magnets. This design enhances both the rotational speed and torque, making it an efficient and robust motor for demanding applications.

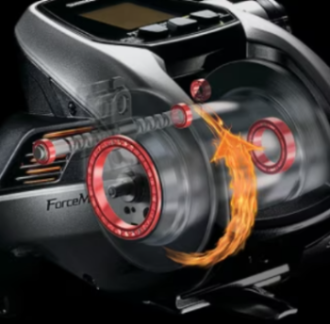

FIRE MACH SYSTEM
To smoothly reverse the large-diameter spool, multiple SA-RB (Ball Bearings) are strategically placed along the main rotation axis. This design ensures high-speed drop performance with minimal resistance, comparable to the Super Free Spool used in smaller electric reels. It’s ideal for fishing with light rigs or when quick deployment to the target depth is crucial.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
FINE DOT LCD
A dot matrix LCD that offers excellent visibility and ease of operation.
Tableau des spécifications du Shimano 2024 PLAYS 3000
Gamme Shimano 2024 PLAYS 3000
| Gamme | Manivelle | Année | Eau salée ou douce | Poids (g) | Ratio d'engrenage | Récupération (cm/tour) | Frein max (kg) | Capacité de ligne fluoro (lb-m) | Capacité de ligne tressée (lb-m) | Bras de manivelle (mm) | Diamètre de la bobine (mm) | Largeur de la bobine (mm) | Roulement (Billes/Rouleaux) | Puissance de récupération (kg) | Vitesse de récupération max (m/min) | Câble électrique (cm) | Code JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000 | Droite | 2024 | Eau salée OK | 685 | 3.9 | 70 | 15 | 20-420, 22-350, 25-300, 28-240 | 60-450, 80-350, 90-300, 100-200 | 75 | 57 | 46 | 4/0 | 6.5 | 150 | 250 | 4969363046666 |
Spécifications en notation livres-yards
| Gamme | Manivelle | Année | Eau salée ou douce | Poids (oz) | Ratio d'engrenage | Récupération (po/tour) | Frein max (lb) | Capacité de ligne fluoro (lb-yd) | Capacité de ligne tressée (lb-yd) | Bras de manivelle (po) | Diamètre de la bobine (po) | Largeur de la bobine (po) | Roulement (Billes/Rouleaux) | Puissance de récupération (lb) | Vitesse de récupération max (yd/min) | Câble électrique (po) | Code JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000 | Droite | 2024 | Eau salée OK | 24.5 | 3.9 | 27.6 | 33.3 | 20-460, 22-385, 25-330, 28-265 | 60-500, 80-385, 90-330, 100-220 | 2.95 | 2.24 | 1.81 | 4/0 | 14.4 | 165 | 98 | 4969363046666 |
