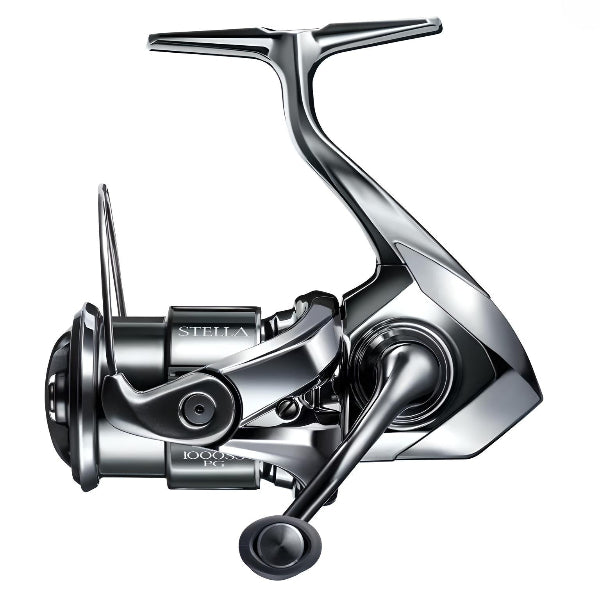

Description of "Shimano 2022 STELLA 1000SSPG"
Rapport de démultiplication : 4.4 Force de traînée maximale : 3 kg Poids : 165 g Diamètre/course de la bobine : 40 mm/13.5 mm Capacité de ligne Nylon : 2 lb-115 m, 2.5 lb-100 m, 3 lb-70 m Capacité de ligne Fluoro : 2 lb-90 m, 2.5 lb-80 m, 3 lb-65 m Capacité de ligne PE : #0.3-140 m, #0.4-100 m, #0.6-80 m Longueur d'enroulement : 55 cm/par rotation de la poignée Longueur de la poignée : 35 mm Quantité de roulements BB/rouleau : 12/1 Engrenage très durable, tissu infinity réalisé grâce à l'avancement de la conception de la surface des dents de l'engrenage et de la technologie de fabrication. Boucle infinity qui enroule la ligne plus serrée et plus ordonnée sur la bobine, réduisant la résistance lors de la libération. Une structure spéciale d'entraînement infinity qui peut être facilement enroulée même sous une charge élevée. STELLA, qui a continué à défier le sommet du moulinet à tambour fixe, a atteint une hauteur supplémentaire avec trois infinity (infinité). La fonctionnalité est recherchée dans les moindres détails, tels que les ailettes anti-torsion qui suppriment les problèmes de ligne autour de la bobine, et Duracross qui maintient une performance de traînée douce avec une excellente résistance à l'abrasion. La fierté du plus haut sommet émet une brillance éblouissante dans la main du pêcheur.
Technology Features of Shimano 2022 STELLA 1000SSPG
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
MICRO MODULE GEAR 2
The gear teeth surfaces in the MICRO MODULE GEAR 2 are finer and mesh more closely together than traditional gears, resulting in minimal power loss and a smooth, powerful winding experience. Additionally, the increased number of meshing teeth provides greater strength compared to conventional gears. This unique Shimano gear system achieves a balance of smoothness and durability.
X-SHIP
X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.
INFINITY LOOP
INFINITY LOOP is a technology that allows the spool to wind the line more precisely by slowing down the up-and-down motion of the spool. With advancements in the internal structure of the reel, the speed of the spool's vertical movement has been significantly reduced. This allows the line to be wound neatly and densely onto the spool, greatly reducing line release resistance. This results in an exceptional casting feel and smooth line delivery. Additionally, the slower vertical movement of the spool reduces oscillation-induced wobbling, decreasing unnecessary vibrations transmitted to the hand and contributing to improved sensitivity.
INFINITY XROSS
INFINITY XROSS is a technology that increases the contact area between the drive gear and pinion gear through advancements in gear tooth surface design and manufacturing technology. By distributing the load applied to the gear tooth surface over a wider area, this technology prevents the gears from sustaining concentrated damage and breaking. As a result, the durability of the gears is approximately doubled compared to traditional Shimano gears.
INFINITY DRIVE
INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.
DURACROSS
DURACROSS is a new drag washer made from innovative materials. By weaving new fibers in a direction perpendicular to the fibers in traditional drag washers, the material's strength is enhanced. This technology maintains smooth drag performance while increasing wear resistance to over ten times that of conventional drag washers.
SILENT DRIVE
SILENT DRIVE involves a comprehensive redesign of the entire body and drive-related components, meticulously eliminating minute gaps, play, and vibration between parts. Areas of improvement include the drive gear, worm shaft, worm shaft pin, worm shaft gear, and slider gear, among others. This results in a new level of smooth rotational performance and a quiet, refined reeling experience.
ANTI TWIST FIN
The ANTI TWIST FIN is an elastic fin positioned close to the line roller. By preventing the line from sagging, it reduces the occurrence of the line being sucked into the lower part of the spool and the line being wound onto the spool while twisted.
X-PROTECT
X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.
For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.
G FREE BODY
The G Free Body relocates the sliding functional parts needed for spool movement to the upper part of the reel body, bringing the reel's center of gravity closer to the angler's hand. This design enhances the feeling of unity with the rod, making the reel feel lighter. It also reduces casting fatigue and improves rod handling.
AR-C SPOOL
The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.
LONG STROKE SPOOL
The Long Stroke Spool features a design that extends the width of the spool's line-winding area. This reduces line reduction during the latter part of the cast, contributing to improved casting feel and increased casting distance.
RIGID SUPPORT DRAG
The Rigid Support Drag system supports the spool with two bearings located on the main shaft and inside the spool. This setup minimizes spool wobble and delivers stable, smooth drag performance.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
ONE-PIECE BAIL
The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.
Tableau des spécifications Shimano 2022 Stella
Gamme Shimano 2022 Stella
| Gamme | Année | Eau salée ou douce | Poids（ｇ） | Ratio d'engrenage | Récupération（cm/tour） | Frein max.（kg） | Cap. fil mono (lb-m) | Cap. fil fluoro (lb-m) | Cap. tresse (lb-m) | Bras de manivelle（mm） | Diamètre de bobine (mm) | Course de bobine (mm) | Roulements (Bille/Galet) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000SSPG | 2022 | Compatible eau salée | 165 | 4.4 | 55 | 3 | 2-115, 2.5-100, 3-70 | 2-90, 2.5-80, 3-65 | 6-140, 8-100, 12-80 | 35 | 40 | 13.5 | 12/1 |
| C2000S | 2022 | Compatible eau salée | 170 | 5.1 | 69 | 3 | 3-125, 4-100, 5-75 | 3-110, 4-85, 5-65 | 12-150, 16-110, 20-80 | 40 | 43 | 13.5 | 12/1 |
| C2000SHG | 2022 | Compatible eau salée | 170 | 6 | 81 | 3 | 3-125, 4-100, 5-75 | 3-110, 4-85, 5-65 | 12-150, 16-110, 20-80 | 45 | 43 | 13.5 | 12/1 |
| C2500S | 2022 | Compatible eau salée | 175 | 5.1 | 70 | 3 | 5-110, 6-95, 8-70 | 4-130, 5-100, 6-80 | 12-200, 16-150, 20-120 | 45 | 44 | 13.5 | 12/1 |
| C2500SXG | 2022 | Compatible eau salée | 175 | 6.3 | 87 | 3 | 5-110, 6-95, 8-70 | 4-130, 5-100, 6-80 | 12-200, 16-150, 20-120 | 45 | 44 | 13.5 | 12/1 |
| 2500S | 2022 | Compatible eau salée | 205 | 5.1 | 75 | 4 | 5-110, 6-95, 8-70 | 4-130, 5-100, 6-80 | 12-200, 16-150, 20-120 | 50 | 47 | 17 | 12/1 |
| 2500SHG | 2022 | Compatible eau salée | 205 | 5.8 | 86 | 4 | 5-110, 6-95, 8-70 | 4-130, 5-100, 6-80 | 12-200, 16-150, 20-120 | 55 | 47 | 17 | 12/1 |
| C3000SDH | 2022 | Compatible eau salée | 220 | 5.1 | 75 | 9 | 5-110, 6-95, 8-70 | 4-130, 5-100, 6-80 | 12-200, 16-150, 20-120 | 45 | 47 | 17 | 14/1 |
| C3000SDHHG | 2022 | Compatible eau salée | 220 | 5.8 | 86 | 9 | 5-110, 6-95, 8-70 | 4-130, 5-100, 6-80 | 12-200, 16-150, 20-120 | 45 | 47 | 17 | 14/1 |
| C3000MHG | 2022 | Compatible eau salée | 210 | 5.8 | 86 | 9 | 8-130, 10-110, 12-85 | 8-110, 10-90, 12-80 | 20-190, 24-150, 30-120 | 55 | 47 | 17 | 12/1 |
| C3000XG | 2022 | Compatible eau salée | 210 | 6.4 | 94 | 9 | 10-180, 12-150, 16-100 | 10-160, 12-130, 16-100 | 20-400, 30-270, 40-200 | 55 | 47 | 17 | 12/1 |
| 3000MHG | 2022 | Compatible eau salée | 235 | 5.7 | 84 | 9 | 8-130, 10-110, 12-85 | 8-110, 10-90, 12-80 | 20-190, 24-150, 30-120 | 55 | 47 | 17 | 12/1 |
| 4000M | 2022 | Compatible eau salée | 260 | 5.3 | 87 | 11 | 10-160, 12-120, 16-90 | 12-110, 16-90, 20-65 | 24-250, 30-200, 40-150 | 55 | 52 | 19 | 12/1 |
| 4000MHG | 2022 | Compatible eau salée | 260 | 5.7 | 93 | 11 | 10-160, 12-120, 16-90 | 12-110, 16-90, 20-65 | 24-250, 30-200, 40-150 | 55 | 52 | 19 | 12/1 |
| 4000XG | 2022 | Compatible eau salée | 260 | 6.2 | 101 | 11 | 14-170, 16-150, 20-125 | 12-190, 16-145, 20-115 | 20-490, 30-320, 40-240 | 57 | 52 | 19 | 12/1 |
| C5000XG | 2022 | Compatible eau salée | 260 | 6.2 | 101 | 11 | 16-190, 20-150, 22-125 | 16-170, 20-135, 22-115 | 30-400, 40-300, 55-200 | 57 | 52 | 19 | 12/1 |
Spécifications en livres-yards
| Gamme | Année | Eau salée ou douce | Poids (oz) | Ratio d'engrenage | Récupération (pouces/tour) | Frein max. (lb) | Cap. fil mono (lb-yd) | Cap. fil fluoro (lb-yd) | Cap. tresse (lb-yd) | Bras de manivelle (po) | Diamètre de bobine (po) | Course de bobine (po) | Roulements (Bille/Galet) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000SSPG | 2022 | Compatible eau salée | 5.9 | 4.4 | 21.7 | 6.7 | 2-130, 2.5-110, 3-80 | 2-100, 2.5-90, 3-70 | 6-155, 8-110, 12-90 | 1.38 | 1.57 | 0.53 | 12/1 |
| C2000S | 2022 | Compatible eau salée | 6.1 | 5.1 | 27.2 | 6.7 | 3-140, 4-110, 5-80 | 3-120, 4-95, 5-70 | 12-165, 16-120, 20-90 | 1.57 | 1.69 | 0.53 | 12/1 |
| C2000SHG | 2022 | Compatible eau salée | 6.1 | 6 | 31.9 | 6.7 | 3-140, 4-110, 5-80 | 3-110, 4-85, 5-65 | 12-165, 16-120, 20-90 | 1.77 | 1.69 | 0.53 | 12/1 |
| C2500S | 2022 | Compatible eau salée | 6.3 | 5.1 | 27.6 | 6.7 | 5-120, 6-105, 8-80 | 4-145, 5-110, 6-90 | 12-220, 16-165, 20-130 | 1.77 | 1.73 | 0.53 | 12/1 |
| C2500SXG | 2022 | Compatible eau salée | 6.3 | 6.3 | 34.3 | 6.7 | 5-120, 6-105, 8-80 | 4-145, 5-110, 6-90 | 12-220, 16-165, 20-130 | 1.77 | 1.73 | 0.53 | 12/1 |
| 2500S | 2022 | Compatible eau salée | 7.3 | 5.1 | 29.5 | 8.9 | 5-120, 6-105, 8-80 | 4-145, 5-110, 6-90 | 12-220, 16-165, 20-130 | 1.97 | 1.85 | 0.67 | 12/1 |
| 2500SHG | 2022 | Compatible eau salée | 7.3 | 5.8 | 33.9 | 8.9 | 5-120, 6-105, 8-80 | 4-145, 5-110, 6-90 | 12-220, 16-165, 20-130 | 2.17 | 1.85 | 0.67 | 12/1 |
| C3000SDH | 2022 | Compatible eau salée | 7.9 | 5.1 | 29.5 | 20 | 5-120, 6-105, 8-80 | 4-145, 5-110, 6-90 | 12-220, 16-165, 20-130 | 1.77 | 1.85 | 0.67 | 14/1 |
| C3000SDHHG | 2022 | Compatible eau salée | 7.9 | 5.8 | 33.9 | 20 | 5-120, 6-105, 8-80 | 4-145, 5-110, 6-90 | 12-220, 16-165, 20-130 | 1.77 | 1.85 | 0.67 | 14/1 |
| C3000MHG | 2022 | Compatible eau salée | 7.5 | 5.8 | 33.9 | 20 | 8-145, 10-120, 12-95 | 8-120, 10-100, 12-90 | 20-210, 24-165, 30-130 | 2.17 | 1.85 | 0.67 | 12/1 |
| C3000XG | 2022 | Compatible eau salée | 7.5 | 6.4 | 37 | 20 | 10-200, 12-165, 16-110 | 10-180, 12-145, 16-110 | 20-440, 30-300, 40-220 | 2.17 | 1.85 | 0.67 | 12/1 |
| 3000MHG | 2022 | Compatible eau salée | 8.4 | 5.7 | 33.1 | 20 | 8-145, 10-120, 12-95 | 8-120, 10-100, 12-90 | 20-210, 24-165, 30-130 | 2.17 | 1.85 | 0.67 | 12/1 |
| 4000M | 2022 | Compatible eau salée | 9.3 | 5.3 | 34.3 | 24.4 | 10-180, 12-130, 16-100 | 12-120, 16-100, 20-70 | 24-275, 30-220, 40-165 | 2.17 | 2.05 | 0.75 | 12/1 |
| 4000MHG | 2022 | Compatible eau salée | 9.3 | 5.7 | 36.6 | 24.4 | 10-180, 12-130, 16-100 | 12-120, 16-100, 20-70 | 24-275, 30-220, 40-165 | 2.17 | 2.05 | 0.75 | 12/1 |
| 4000XG | 2022 | Compatible eau salée | 9.3 | 6.2 | 39.8 | 24.4 | 14-190, 16-165, 20-140 | 12-210, 16-160, 20-130 | 20-540, 30-350, 40-265 | 2.24 | 2.05 | 0.75 | 12/1 |
| C5000XG | 2022 | Compatible eau salée | 9.3 | 6.2 | 39.8 | 24.4 | 16-210, 20-165, 22-140 | 16-190, 20-150, 22-130 | 30-440, 40-330, 55-220 | 2.24 | 2.05 | 0.75 | 12/1 |
