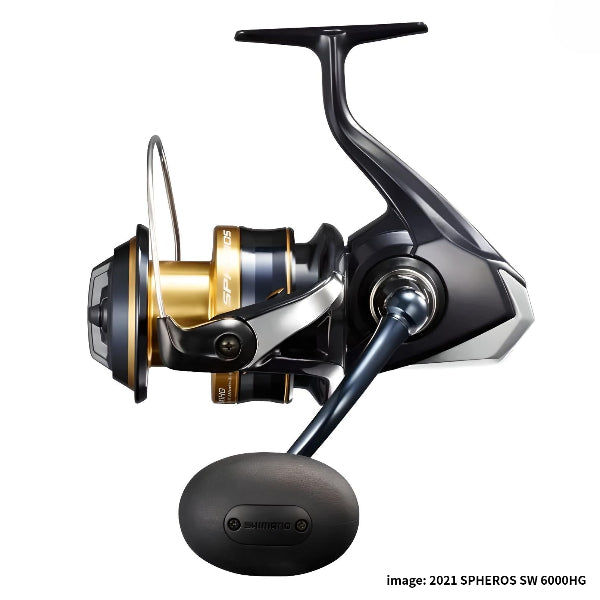

Description of "Shimano Spheros SW 5000HG 2021"
Ratio d'engrenage: 5,7 Force de traînée maximale: 10kg Poids: 445g Diamètre/course de la bobine: 54mm/19mm Capacité de ligne Nylon: #4-200m, #5-150m, #6-130m Capacité de ligne PE: #2.0-350m, #3-240m, #4.0-170m Longueur d'enroulement: 97cm/par tour de poignée Longueur de la poignée: 65mm Quantité de roulements BB/Rouleau: 4/1 Pour continuer à pêcher à tout moment. Le Spheros SW est équipé de technologies qui brisent la sagesse conventionnelle dans cette gamme de prix, telles que le X Shield, qui offre des performances d'étanchéité équivalentes à IPX-8, le X Protect, le X-SHIP et le corps HAGANE, et est compatible avec les scènes salines difficiles. Le modèle 2021 est en outre équipé de l'Infinity Drive, de l'engrenage HAGANE et d'une rondelle en carbone pour améliorer encore la durabilité et les performances. De plus, en adoptant l'engrenage HAGANE et une poignée en aluminium usinée, son propre poids est 50 à 85 g plus léger que le modèle précédent. Il couvre 5 articles de 5000HG, 6000HG, 6000PG, 8000HG, 8000PG, qui sont très importants en mer proche, et convient à un large éventail de jeux, du jigging au casting, que ce soit à terre ou en mer.
Technology Features of Shimano Spheros SW 5000HG 2021
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
X-SHIP
X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.
INFINITY DRIVE
INFINITY DRIVE is an advanced evolution of the traditional X-SHIP structure. By making the main shaft, which was previously supported by the pinion gear, non-contact and supporting it with a special low-friction bushing, sliding resistance is greatly reduced. Additionally, special surface treatments and processing have been applied to the main shaft itself to further reduce friction loss. These enhancements enable powerful winding even under high load conditions.
X-SHIELD
Shimano's waterproof mechanisms include "Core Protect," "X-Protect," and "X-Shield." "X-Shield," used in the SW series, is a waterproof mechanism designed to prevent water ingress by sealing gaps with special seals. Strong sealing is applied at various points, including the body-lid interface and the spool-drag knob contact area, to block water entry paths. This ensures high reliability and durability in the harsh conditions of SW game fishing. While completely sealing gaps increases the friction coefficient during reel rotation, potentially affecting the smoothness of the reel, the primary focus is on maximizing waterproof performance.
X-PROTECT
X-PROTECT provides robust protection against water ingress into the reel by combining a labyrinth-structured waterproof wall with special water-repellent grease. In small to medium-sized spinning reels, which require lighter rotation, a non-contact structure is emphasized to maintain rotational lightness. This high waterproof performance is achieved by combining traditional water-repellent treatments with a labyrinth structure that prevents water penetration without direct contact. This technology is applied to areas such as the stopper bearing and line roller.
For larger spinning reels that require higher waterproof performance, a contact-type waterproof structure is used. Low-friction seal materials physically block seawater entry paths, achieving high waterproof performance while minimizing rotational resistance. This contact-type waterproofing is applied to the stopper bearing and line roller, with the stopper bearing achieving an IPX8 waterproof rating.
AR-C SPOOL
The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.
A-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance.
Tableau des spécifications du Shimano Spheros SW
Gamme Shimano Spheros SW
| Modèle | Année | Eau salée ou douce | Poids (g) | Ratio | Récupération (cm/tour) | Frein max (kg) | Capacité ligne mono (lb-m) | Capacité ligne fluoro (lb-m) | Capacité tresse (lb-m) | Bras de manivelle (mm) | Diamètre de la bobine (mm) | Course de la bobine (mm) | Roulements (Bille/Galet) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000XG | 2019 | Eau salée OK | 255 | 6.2 | 91 | 9 | 10-180, 12-150, 16-100 | 10-160, 12-130, 16-100 | 20-400, 30-270, 40-200 | 55 | 46.5 | 14.5 | 3/1 |
| 4000HG | 2019 | Eau salée OK | 280 | 5.8 | 93 | 11 | 14-170, 16-150, 20-125 | 12-190, 16-145, 20-115 | 20-490, 30-320, 40-240 | 55 | 51 | 17 | 3/1 |
| 4000XG | 2019 | Eau salée OK | 280 | 6.2 | 99 | 11 | 14-170, 16-150, 20-125 | 12-190, 16-145, 20-115 | 20-490, 30-320, 40-240 | 55 | 51 | 17 | 3/1 |
| 5000HG | 2021 | Eau salée OK | 445 | 5.7 | 97 | 10 | 16-200, 20-150, 22-130 | - | 40-350, 55-240, 60-170 | 65 | 54 | 19 | 4/1 |
| 6000PG | 2021 | Eau salée OK | 450 | 4.6 | 83 | 10 | 16-240, 20-190, 22-160 | - | 40-440, 55-300, 60-210 | 65 | 57.5 | 19 | 4/1 |
| 6000HG | 2021 | Eau salée OK | 450 | 5.7 | 103 | 10 | 16-240, 20-190, 22-160 | - | 40-440, 55-300, 60-210 | 65 | 57.5 | 19 | 4/1 |
| 8000PG | 2021 | Eau salée OK | 670 | 4.9 | 94 | 13 | 20-275, 22-230, 28-160 | - | 55-410, 60-300, 80-250 | 75 | 61 | 22 | 4/1 |
| 8000HG | 2021 | Eau salée OK | 665 | 5.6 | 107 | 13 | 20-275, 22-230, 28-160 | - | 55-410, 60-300, 80-250 | 75 | 61 | 22 | 4/1 |
Spécifications en notation livre-yard
| Modèle | Année | Eau salée ou douce | Poids (oz) | Ratio | Récupération (po/tour) | Frein max (lb) | Capacité ligne mono (lb-yd) | Capacité ligne fluoro (lb-yd) | Capacité tresse (lb-yd) | Bras de manivelle (po) | Diamètre de la bobine (po) | Course de la bobine (po) | Roulements (Bille/Galet) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000XG | 2019 | Eau salée OK | 9.1 | 6.2 | 35.8 | 20 | 10-200, 12-165, 16-110 | 10-180, 12-145, 16-110 | 20-440, 30-300, 40-220 | 2.17 | 1.83 | 0.57 | 3/1 |
| 4000HG | 2019 | Eau salée OK | 10 | 5.8 | 36.6 | 24.4 | 14-190, 16-165, 20-140 | 12-210, 16-160, 20-130 | 20-540, 30-350, 40-265 | 2.17 | 2.01 | 0.67 | 3/1 |
| 4000XG | 2019 | Eau salée OK | 10 | 6.2 | 39 | 24.4 | 14-190, 16-165, 20-140 | 12-210, 16-160, 20-130 | 20-540, 30-350, 40-265 | 2.17 | 2.01 | 0.67 | 3/1 |
| 5000HG | 2021 | Eau salée OK | 15.9 | 5.7 | 38.2 | 22.2 | 16-220, 20-165, 22-145 | - | 40-385, 55-265, 60-190 | 2.56 | 2.13 | 0.75 | 4/1 |
| 6000PG | 2021 | Eau salée OK | 16.1 | 4.6 | 32.7 | 22.2 | 16-265, 20-210, 22-180 | - | 40-485, 55-330, 60-230 | 2.56 | 2.26 | 0.75 | 4/1 |
| 6000HG | 2021 | Eau salée OK | 16.1 | 5.7 | 40.6 | 22.2 | 16-265, 20-210, 22-180 | - | 40-485, 55-330, 60-230 | 2.56 | 2.26 | 0.75 | 4/1 |
| 8000PG | 2021 | Eau salée OK | 23.9 | 4.9 | 37 | 28.9 | 20-300, 22-255, 28-180 | - | 55-450, 60-330, 80-275 | 2.95 | 2.4 | 0.87 | 4/1 |
| 8000HG | 2021 | Eau salée OK | 23.8 | 5.6 | 42.1 | 28.9 | 20-300, 22-255, 28-180 | - | 55-450, 60-330, 80-275 | 2.95 | 2.4 | 0.87 | 4/1 |
