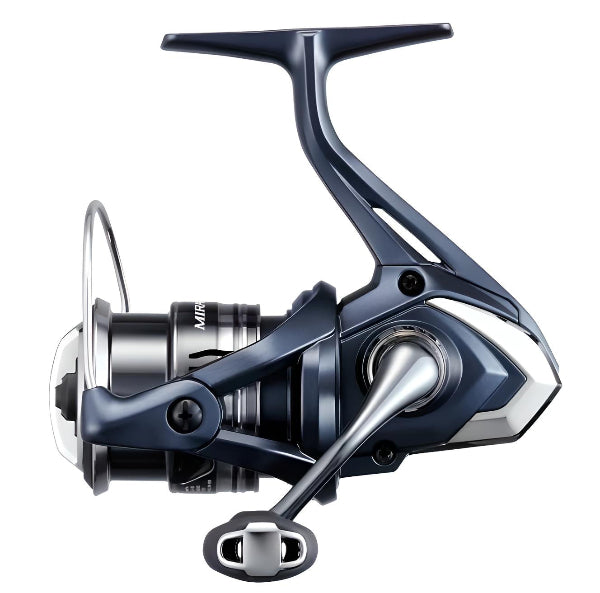

Shimano 2022 MIRAVEL C2000SHG

Name: Shimano 2022 MIRAVEL C2000SHG
Brand: SHIMANO
Price: 116.00 USD
Availability: InStock

SHIMANO

RuffRuff Apps by Tsun

Prix:

$116.00 $126.00

Quantité:

Voir tous les modèles de Shimano 2022 MIRAVEL

Pays et délais de livraison disponibles

Qu'est-ce qu'une précommande ?

FAQ

Rapport d'engrenage : 6 Force de traînée maximale : 3 kg Poids : 180 g Diamètre/course de la bobine : 42 mm/12 mm Capacité de ligne Nylon : 3 lb-125 m, 4 lb-100 m, 5 lb-75 m Capacité de ligne Fluoro : 3 lb-110 m, 4 lb-85 m, 5 lb-65 m Capacité de ligne PE : #0,6-150 m, #0,8-110 m, #1,0-80 m Rotation maximale 79 cm/manivelle 1 tour Longueur de la manivelle : 45 mm Modèle stratégique mondial, corps entièrement léger en CI4+ (*), "Mirabel". Dans la série MGL qui vise une rotation légère et un poids léger avec le Vanquish en tête, Mirabel, un modèle stratégique mondial, est né. Le CI4+ est adopté pour les grandes pièces telles que le corps afin d'atteindre une légèreté supérieure à sa catégorie. De plus, l'utilisation de la Silent Drive et des poignées vissées a supprimé le bruit et le jeu lors du rembobinage. Une conception sans compromis qui poursuit son propre poids, la qualité d'enroulement et la légèreté devrait rendre votre pêche encore plus agréable. Veuillez expérimenter les avantages de la légèreté lors du lancer, du rembobinage, du travail de la canne et dans diverses situations. * Utilisé pour les principales grandes pièces

HAGANE

“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.

X-SHIP

X-SHIP features an enlarged drive gear, optimal positioning of the pinion and drive gears, and two-point support for the pinion gear with bearings. This robust gear engagement maintains smooth and efficient reeling even under heavy loads.

SILENT DRIVE

SILENT DRIVE involves a comprehensive redesign of the entire body and drive-related components, meticulously eliminating minute gaps, play, and vibration between parts. Areas of improvement include the drive gear, worm shaft, worm shaft pin, worm shaft gear, and slider gear, among others. This results in a new level of smooth rotational performance and a quiet, refined reeling experience.

MGL ROTOR

The MGL Rotor, featuring an asymmetrical rotor design, aims to enhance operability and sensitivity, achieving an extraordinary level of rotational lightness. With reduced inertia, the reel starts rotating with minimal effort and can be stopped with equally light force, offering improved control and responsiveness.

CORE PROTECT

CORE PROTECT uses a water-repellent treatment to create a beading effect that prevents water from entering even through minute gaps. This enhances waterproofing without increasing rotational resistance. Additionally, since it is a non-contact system, it avoids wear and tear, ensuring long-lasting waterproof performance.

G FREE BODY

The G Free Body relocates the sliding functional parts needed for spool movement to the upper part of the reel body, bringing the reel's center of gravity closer to the angler's hand. This design enhances the feeling of unity with the rod, making the reel feel lighter. It also reduces casting fatigue and improves rod handling.

AR-C SPOOL

The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.

Shimano 2022 MIRAVEL C2000SHG with CI4+ technology feature illustration

CI4+

CI4+ is an advanced material used in Shimano reels. It is a reinforced carbon fiber composite that is lighter and stronger than conventional materials, providing increased rigidity and reducing weight, which enhances the overall performance and sensitivity of the reel.

Tableau des spécifications du Shimano 2022 Miravel

Gamme Shimano 2022 Miravel

Gamme	Année	Eau salée ou douce	Poids（g）	Ratio d'engrenage	Récupération（cm/tour）	Frein max.（kg）	Capacité ligne mono (lb-m)	Capacité ligne fluoro (lb-m)	Capacité ligne tressée (lb-m)	Manivelle（mm）	Diamètre de la bobine (mm)	Course de la bobine (mm)	Roulements (Bille/Galet)
1000	2022	Eau salée OK	175	5	66	3	6-130, 8-100, 10-85	6-120, 8-85, 10-70	16-240, 20-190	45	42	12	5/1
C2000S	2022	Eau salée OK	180	5	66	3	3-125, 4-100, 5-75	3-110, 4-85, 5-65	12-150, 16-110, 20-80	45	42	12	5/1
C2000SHG	2022	Eau salée OK	180	6	79	3	3-125, 4-100, 5-75	3-110, 4-85, 5-65	12-150, 16-110, 20-80	45	42	12	5/1
2500	2022	Eau salée OK	205	5	73	9	8-170, 10-150, 12-120	8-140, 10-125, 12-100	20-320, 24-270, 30-220	55	46.5	14.5	5/1
2500S	2022	Eau salée OK	205	5	73	4	5-110, 6-95, 8-70	4-130, 5-100, 6-80	12-200, 16-150, 20-120	55	46.5	14.5	5/1
2500SHG	2022	Eau salée OK	205	6.2	91	4	5-110, 6-95, 8-70	4-130, 5-100, 6-80	12-200, 16-150, 20-120	55	46.5	14.5	5/1
C3000	2022	Eau salée OK	205	5	73	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	46.5	14.5	5/1
C3000HG	2022	Eau salée OK	205	6.2	91	9	10-180, 12-150, 16-100	10-160, 12-130, 16-100	20-400, 30-270, 40-200	55	46.5	14.5	5/1
4000	2022	Eau salée OK	245	4.7	75	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	55	51	17	5/1
4000XG	2022	Eau salée OK	245	6.2	99	11	14-170, 16-150, 20-125	12-190, 16-145, 20-115	20-490, 30-320, 40-240	55	51	17	5/1
C5000XG	2022	Eau salée OK	270	6.2	105	11	16-190, 20-150, 22-125	16-170, 20-135, 22-115	30-400, 40-300, 55-200	55	51	17	5/1

Spécifications en livres-yards

Gamme	Année	Eau salée ou douce	Poids（oz)	Ratio d'engrenage	Récupération（in/tour）	Frein max.（lb）	Capacité ligne mono (lb-yd)	Capacité ligne fluoro (lb-yd)	Capacité ligne tressée (lb-yd)	Manivelle（in）	Diamètre de la bobine (in)	Course de la bobine (in)	Roulements (Bille/Galet)
1000	2022	Eau salée OK	6.3	5	26	6.7	6-145, 8-110, 10-95	6-130, 8-95, 10-80	16-265, 20-210	1.77	1.65	0.47	5/1
C2000S	2022	Eau salée OK	6.4	5	26	6.7	3-140, 4-110, 5-80	3-120, 4-95, 5-70	12-165, 16-120, 20-90	1.77	1.65	0.47	5/1
C2000SHG	2022	Eau salée OK	6.4	6	31.1	6.7	3-140, 4-110, 5-80	3-120, 4-95, 5-70	12-165, 16-120, 20-90	1.77	1.65	0.47	5/1
2500	2022	Eau salée OK	7.3	5	28.7	20	8-190, 10-165, 12-130	8-155, 10-140, 12-110	20-350, 24-300, 30-240	2.17	1.83	0.57	5/1
2500S	2022	Eau salée OK	7.3	5	28.7	8.9	5-120, 6-105, 8-80	4-145, 5-110, 6-90	12-220, 16-165, 20-130	2.17	1.83	0.57	5/1
2500SHG	2022	Eau salée OK	7.3	6.2	35.8	8.9	5-120, 6-105, 8-80	4-145, 5-110, 6-90	12-220, 16-165, 20-130	2.17	1.83	0.57	5/1
C3000	2022	Eau salée OK	7.3	5	28.7	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	1.83	0.57	5/1
C3000HG	2022	Eau salée OK	7.3	6.2	35.8	20	10-200, 12-165, 16-110	10-180, 12-145, 16-110	20-440, 30-300, 40-220	2.17	1.83	0.57	5/1
4000	2022	Eau salée OK	8.8	4.7	29.5	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.17	2.01	0.67	5/1
4000XG	2022	Eau salée OK	8.8	6.2	39	24.4	14-190, 16-165, 20-140	12-210, 16-160, 20-130	20-540, 30-350, 40-265	2.17	2.01	0.67	5/1
C5000XG	2022	Eau salée OK	9.6	6.2	41.3	24.4	16-210, 20-165, 22-140	16-190, 20-150, 22-130	30-440, 40-330, 55-220	2.17	2.01	0.67	5/1
