Technology Features of DAIWA 2025 LEOBRITZ 400JL

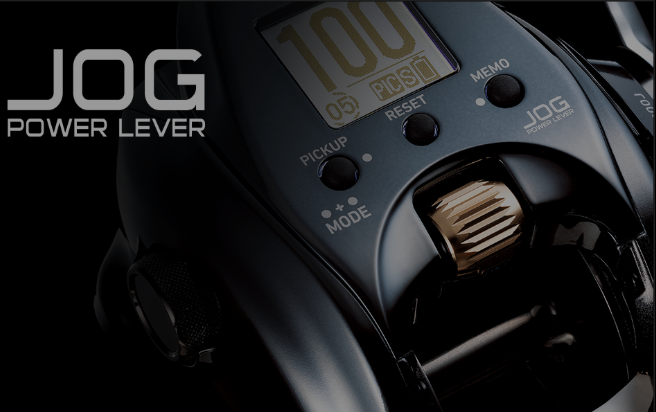

JOG POWER LEVER
By relocating the power lever to the center of the reel body and changing its shape from a lever to a dial style, the JOG POWER LEVER allows the angler to control winding and clutch on/off operations with just the thumb of the hand holding the rod. This frees the other hand from lever operation entirely. The ergonomic design naturally places the thumb on the top of the reel body when holding the rod, making it a comfortable and effortless operation. JOG POWER LEVER enables precise, one-thumb control.
ATD (Automatic Drag)
DAIWA’'s ATD (Automatic Drag) technology is an innovative system designed to address the issues found in traditional drag systems. Previously, the main problem was the lack of smoothness when the drag first engaged. ATD ensures a smooth initial drag, releasing lines with consistent tension under strong pressure, and offering gradual resistance under lighter pressure. This adaptability reduces the need for frequent adjustments of drag force and also improves hooking rates. Enhanced drag washers maintain drag strength during long fights, giving anglers an advantage against large fish. ATD provides a stress-free and efficient fishing experience.

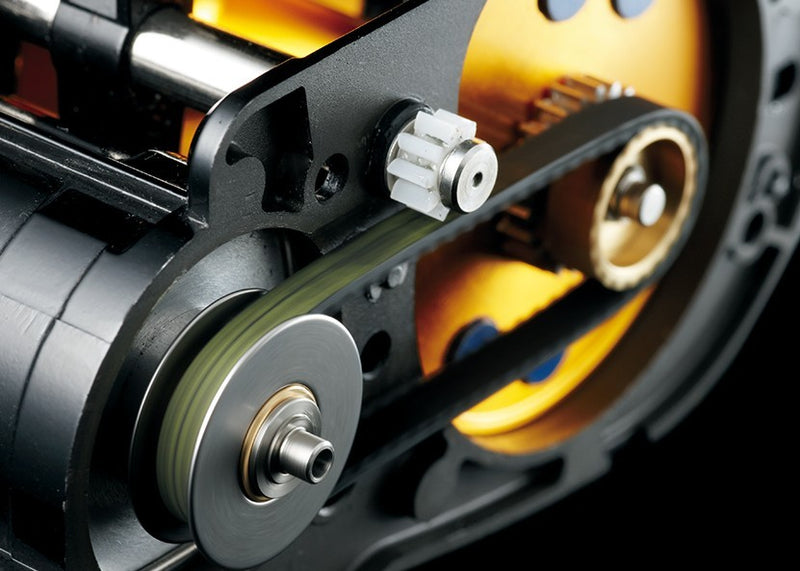

FF STRUCTURE
The FF structure (front-motor structure) in Daiwa's electric reels offers several significant benefits by positioning the motor, which can be considered the engine of an electric reel, in front of the spool. Firstly, it allows for a more compact design by relocating the motor outside the spool, reducing the overall size and height of the reel, which enhances its maneuverability. This ergonomic improvement makes it easier for anglers to operate switches and clutches with their thumb, leading to a more comfortable fishing experience. Secondly, the independent motor enables a robust waterproofing system, allowing the reel to be washable, a feature highly appreciated by anglers who value maintaining their gear. Previously, the internal motor design made it difficult to achieve proper waterproofing, as water would enter through the gear's rotation axis, but this issue has now been resolved. Thirdly, this structure improves durability by protecting the motor from water, which, in turn, increases the motor’s lifespan. Anglers have come to recognize that washing their reels prolongs their life. Fourthly, the separation of the motor from the spool enhances cooling efficiency, as heat no longer accumulates around the spool, which used to be an issue when the motor was inside. Lastly, this design allows for smoother spool rotation, improving free spool performance and enabling the tackle to drop more quickly, offering a more agile fishing experience.

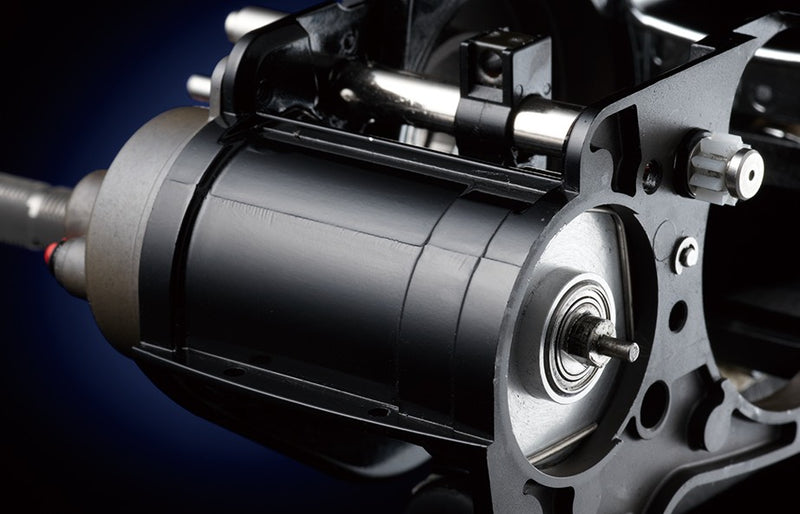

MAGMIGHT STRUCTURE
This structure maximizes the motor's power within the limited space inside an electric reel. It enables high power and high speed even in compact spaces. Additionally, it enhances motor cooling, contributing to improved motor drive efficiency.

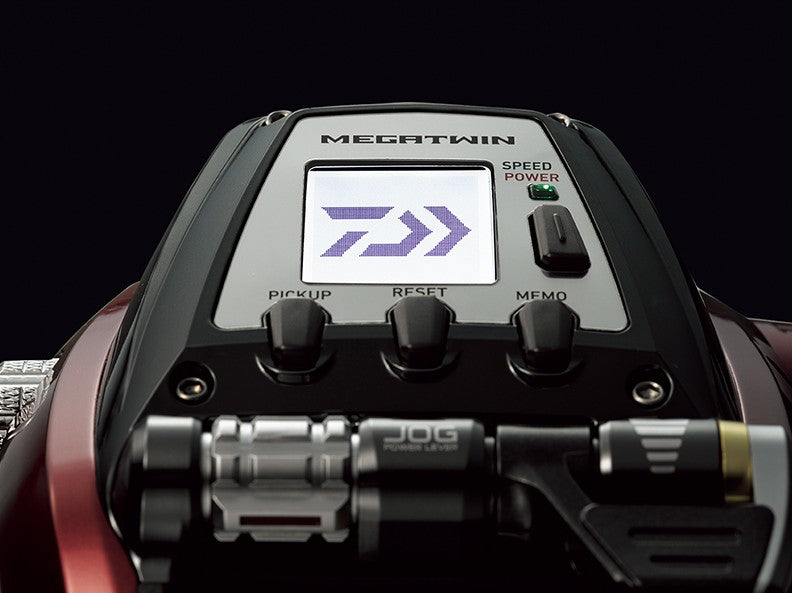

DOT LCD
Features a large dot matrix LCD that remains clearly visible even under direct sunlight and when wearing polarized glasses. The menu screen is easy to navigate, making various settings straightforward to adjust.
Tableau des spécifications du DAIWA 2025 LEOBRITZ 400J
Gamme DAIWA 2025 LEOBRITZ 400J
| Modèle | Poignée | Année | Eau salée ou douce | Poids (g) | Rapport de vitesse | Frein max (kg) | Capacité fil mono (lb-m) | Capacité tresse (lb-m) | Roulements (Bille/Galet) | Longueur de la poignée (mm) | Puissance de récupération max (kg) | Code JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400J | Droite | 2025 | Eau salée OK | 560 | 5.1 | 13 | 22-300, 25-230 | 55-500, 60-400 | 12/1 | 70 | 59 | 4550133434808 |
| 400JL | Gauche | 2025 | Eau salée OK | 560 | 5.1 | 13 | 22-300, 25-230 | 55-500, 60-400 | 12/1 | 70 | 59 | 4550133434815 |
Spécifications en livres-yards
| Modèle | Poignée | Année | Eau salée ou douce | Poids (oz) | Rapport de vitesse | Frein max (lb) | Capacité fil mono (lb-yd) | Capacité tresse (lb-yd) | Roulements (Bille/Galet) | Longueur de la poignée (po) | Puissance de récupération max (lb) | Code JAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400J | Droite | 2025 | Eau salée OK | 20 | 5.1 | 28.9 | 22-330, 25-255 | 55-550, 60-440 | 12/1 | 2.76 | 131 | 4550133434808 |
| 400JL | Gauche | 2025 | Eau salée OK | 20 | 5.1 | 28.9 | 22-330, 25-255 | 55-550, 60-440 | 12/1 | 2.76 | 131 | 4550133434815 |
