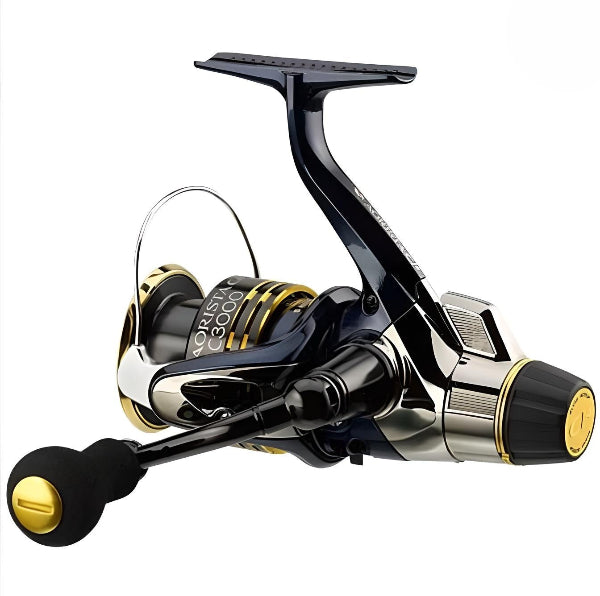

Technology Features of Shimano Aorista CI4 C3000 2010
HAGANE
“HAGANE” is more than just a material name; it’s a design philosophy centered around creating reels that offer unmatched longevity and smoothness. The term "HAGANE" itself, which means "steel" in Japanese, symbolizes strength and resilience. However, in Shimano's context, it transcends traditional interpretations, representing a suite of advanced technologies aimed at enhancing performance and durability. In other words, when they say "HAGANE", they do not actually mean that HAGANE(= steel) is used. “HAGANE” promises robustness that can be used with peace of mind even in the harshest of conditions, an unchanging, exquisite winding feel, and winding power that exceeds the imagination."HAGANE Gear" or "HAGANE Body" is Shimano's engineering concept and philosophy.
RIGID SUPPORT DRAG
The Rigid Support Drag system supports the spool with two bearings located on the main shaft and inside the spool. This setup minimizes spool wobble and delivers stable, smooth drag performance.
AR-C SPOOL
The AR-C Spool, used in Shimano spinning reels, features a special spool ring shape. The inclined spool edge creates moderate friction resistance, leading to a streamlined line release effect. This design minimizes line troubles while achieving excellent casting performance.
SA-RB
A-RB bearings feature a special anti-corrosion treatment that significantly improves their rust resistance. The SA-RB takes this further by sealing the sides with anti-corrosion materials, greatly reducing salt crystallization and salt damage inside the bearing.
ONE-PIECE BAIL
The ONE-PIECE BAIL is a seamlessly molded bail with no joints. This design significantly reduces the likelihood of the line getting caught where the line roller and bail meet, minimizing line-related issues.
Tableau des spécifications Shimano Aorista
Gamme Shimano Aorista
| Gamme | Année | Eau salée ou douce | Poids (g) | Rapport d'engrenage | Récupération (cm/tour) | Frein max (kg) | Capacité ligne mono (lb-m) | Capacité ligne fluoro (lb-m) | Capacité tresse (lb-m) | Bras de manivelle (mm) | Diamètre de la bobine (mm) | Course de la bobine (mm) | Roulement (Billes/Rouleaux) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CI4 C3000 | 2010 | Eau salée OK | 240 | 5 | 74 | 2.5 | 10-180, 12-150, 16-100 | 10-160 | 20-400 | 50 | 46.5 | 14.5 | 7/1 |
| BB 2500 | 2013 | Eau salée OK | 270 | 5.2 | 74 | 2.5 | 8-170, 10-150, 12-120 | 8-140, 10-125, 12-100 | 20-320, 24-220, 30-160 | 50 | 45 | 14.5 | 3/1 |
| BB C3000HG | 2013 | Eau salée OK | 265 | 6.2 | 89 | 2.5 | 10-180, 12-150, 16-100 | 10-160, 12-130, 16-100 | 20-400, 30-270, 40-180 | 50 | 45.5 | 14.5 | 3/1 |
| BB 4000 | 2013 | Eau salée OK | 355 | 5.1 | 80 | 4 | 14-170, 16-150, 20-125 | 12-190, 16-145, 20-115 | 20-500, 30-320, 40-210 | 55 | 50 | 17 | 3/1 |
Spécifications en livres-yards
| Gamme | Année | Eau salée ou douce | Poids (oz) | Rapport d'engrenage | Récupération (po/tour) | Frein max (lb) | Capacité ligne mono (lb-yd) | Capacité ligne fluoro (lb-yd) | Capacité tresse (lb-yd) | Bras de manivelle (po) | Diamètre de la bobine (po) | Course de la bobine (po) | Roulement (Billes/Rouleaux) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CI4 C3000 | 2010 | Eau salée OK | 8.6 | 5 | 29.1 | 5.6 | 10-200, 12-165, 16-110 | 10-180 | 20-440 | 1.97 | 1.83 | 0.57 | 7/1 |
| BB 2500 | 2013 | Eau salée OK | 9.6 | 5.2 | 29.1 | 5.6 | 8-190, 10-165, 12-130 | 8-155, 10-140, 12-110 | 20-350, 24-240, 30-180 | 1.97 | 1.77 | 0.57 | 3/1 |
| BB C3000HG | 2013 | Eau salée OK | 9.5 | 6.2 | 35 | 5.6 | 10-200, 12-165, 16-110 | 10-180, 12-145, 16-110 | 20-440, 30-300, 40-200 | 1.97 | 1.79 | 0.57 | 3/1 |
| BB 4000 | 2013 | Eau salée OK | 12.7 | 5.1 | 31.5 | 8.9 | 14-190, 16-165, 20-140 | 12-210, 16-160, 20-130 | 20-550, 30-350, 40-230 | 2.17 | 1.97 | 0.67 | 3/1 |
